Woonyoung NSP Series Enclosed Switching Power Supply, 1-Output, 10-300 W

Woonyoung NSP Series Enclosed Switching Power Supply, 1-Output, 10-300 W

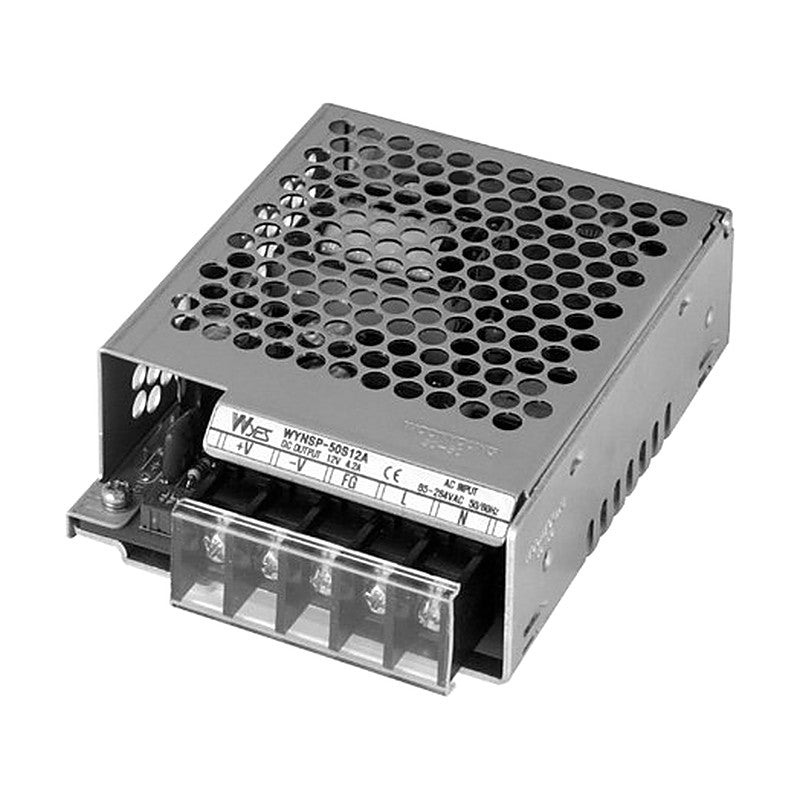

Enclosed metal-case AC-DC switching power supply with screw terminal block, providing a single regulated DC output from 10 W to 300 W.

Key features

  • Compact perforated metal enclosure with screw terminal block
  • Built-in inrush current limiter
  • Over current and short circuit protection; over voltage protection on 75 W and above
  • Over temperature protection with auto restart (10-50 W)
  • Output voltage adjustment and LED indicator
  • Optional DIN-rail bracket

Specifications

Output type Single output
Mounting Chassis mount, optional DIN-rail bracket
Operating temperature 0 to +50 °C
Storage temperature -20 to +75 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Hold-up time 15 ms typ
Cooling Natural cooling (10-150 W); fan cooling (200-300 W)
Safety marks CE, RoHS; CB/cULus on selected 30-100 W models
Woonyoung NSP Series Enclosed Switching Power Supply, 1-Output, 10-300 W reference 2
WYNSP-10S05A Output power: 10 W | Output voltage: 5 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYNSP-10S12A Output power: 10 W | Output voltage: 12 V DC | Output current: 0.84 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYNSP-10S24A Output power: 10 W | Output voltage: 24 V DC | Output current: 0.42 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.2 kg
WYNSP-10S48A Output power: 10 W | Output voltage: 48 V DC | Output current: 0.21 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.2 kg
WYNSP-20S05A Output power: 20 W | Output voltage: 5 V DC | Output current: 4.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYNSP-20S12A Output power: 20 W | Output voltage: 12 V DC | Output current: 1.67 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYNSP-20S24A Output power: 20 W | Output voltage: 24 V DC | Output current: 0.84 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.2 kg
WYNSP-20S48A Output power: 20 W | Output voltage: 48 V DC | Output current: 0.42 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.2 kg
WYNSP-30S05A Output power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYNSP-30S12A Output power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYNSP-30S24A Output power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYNSP-30S48A Output power: 30 W | Output voltage: 48 V DC | Output current: 0.63 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYNSP-50S05A Output power: 50 W | Output voltage: 5 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYNSP-50S12A Output power: 50 W | Output voltage: 12 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYNSP-50S24A Output power: 50 W | Output voltage: 24 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYNSP-50S48A Output power: 50 W | Output voltage: 48 V DC | Output current: 1.05 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYNSP-75S05A Output power: 75 W | Output voltage: 5 V DC | Output current: 15.0 A | Input voltage: AC 170-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYNSP-75S12A Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 170-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYNSP-75S24A Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYNSP-75S48A Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYNSP-100S05A Output power: 100 W | Output voltage: 5 V DC | Output current: 20.0 A | Input voltage: AC 170-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYNSP-100S12A Output power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 170-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYNSP-100S24A Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYNSP-100S48A Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYNSP-120S05A Output power: 120 W | Output voltage: 5 V DC | Output current: 24.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S12A Output power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S24A Output power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S48A Output power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S05A Output power: 150 W | Output voltage: 5 V DC | Output current: 30.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S12A Output power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S24A Output power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 170-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-150S48A Output power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 170-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-200S05A Output power: 200 W | Output voltage: 5 V DC | Output current: 40.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-200S12A Output power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-200S24A Output power: 200 W | Output voltage: 24 V DC | Output current: 8.3 A | Input voltage: AC 170-264 V | Efficiency: 78% typ | Weight: 1.0 kg
WYNSP-200S48A Output power: 200 W | Output voltage: 48 V DC | Output current: 4.2 A | Input voltage: AC 170-264 V | Efficiency: 78% typ | Weight: 1.0 kg
WYNSP-250S05A Output power: 250 W | Output voltage: 5 V DC | Output current: 50.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-250S12A Output power: 250 W | Output voltage: 12 V DC | Output current: 20.9 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-250S24A Output power: 250 W | Output voltage: 24 V DC | Output current: 10.5 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-250S48A Output power: 250 W | Output voltage: 48 V DC | Output current: 5.3 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-300S05A Output power: 300 W | Output voltage: 5 V DC | Output current: 60.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-300S12A Output power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 1.0 kg
WYNSP-300S24A Output power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 1.0 kg
WYNSP-300S48A Output power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 1.0 kg
Switching Power SuppliesWoonyoung
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung NSP Series Enclosed Switching Power Supply, 1-Output, 10-300 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (44)

WYNSP-10S05A, WYNSP-10S12A, WYNSP-10S24A, WYNSP-10S48A, WYNSP-20S05A, WYNSP-20S12A, WYNSP-20S24A, WYNSP-20S48A, WYNSP-30S05A, WYNSP-30S12A + 34 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
