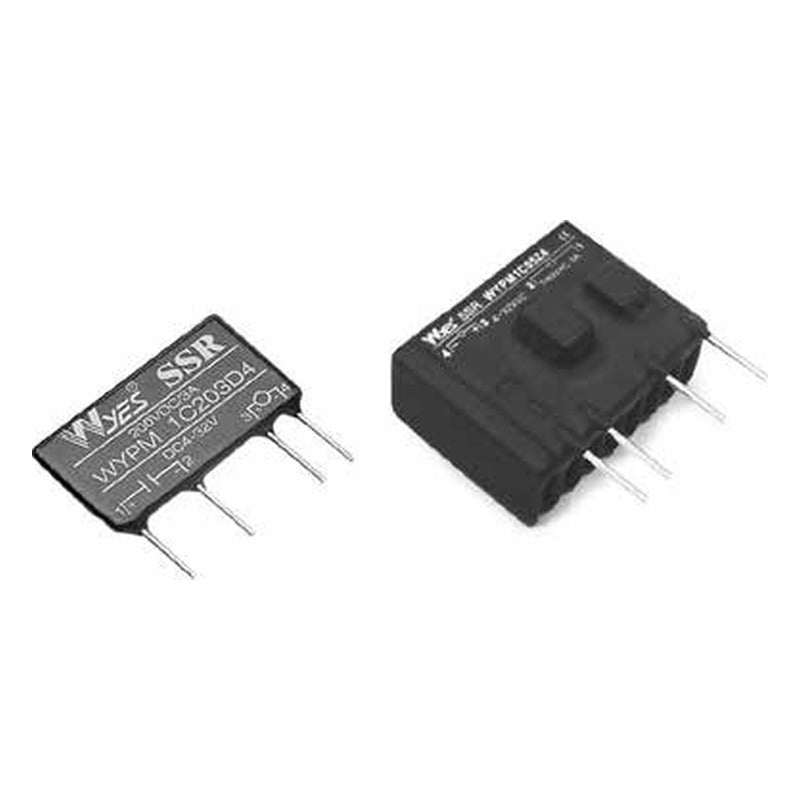

WOONYOUNG PCB Type Hybrid DC SSR WYPM (200VDC, 3-5A)

WOONYOUNG PCB Type Hybrid DC SSR WYPM (200VDC, 3-5A)

Hybrid PCB-mount slim DC load SSR with improved durability and reliability, highly resistant to vibration and impact.

Key features

  • DC load switching
  • PCB insertion type
  • ON resistance 0.8 ohm

Specifications

Input voltage range 4-32 VDC
Output DC
Dielectric strength 1500 VAC / 1 min
Rated voltage 200 VDC
Voltage range 10-200 VDC
WYPM1C203D4 Rated load current: 3.0 A (rms 1.5 A) at 25C | Weight: 10 g
WYPM1C205D4 Rated load current: 5.0 A (rms 2.5 A) at 25C | Weight: 20 g
Solid State RelaysWOONYOUNG
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG PCB Type Hybrid DC SSR WYPM (200VDC, 3-5A)

Brand WOONYOUNG·Solid State Relays

Available part numbers (2)

WYPM1C203D4, WYPM1C205D4

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPM1C203D4Rated load current: 3.0 A (rms 1.5 A) at 25C | Weight: 10 g
WYPM1C205D4Rated load current: 5.0 A (rms 2.5 A) at 25C | Weight: 20 g
