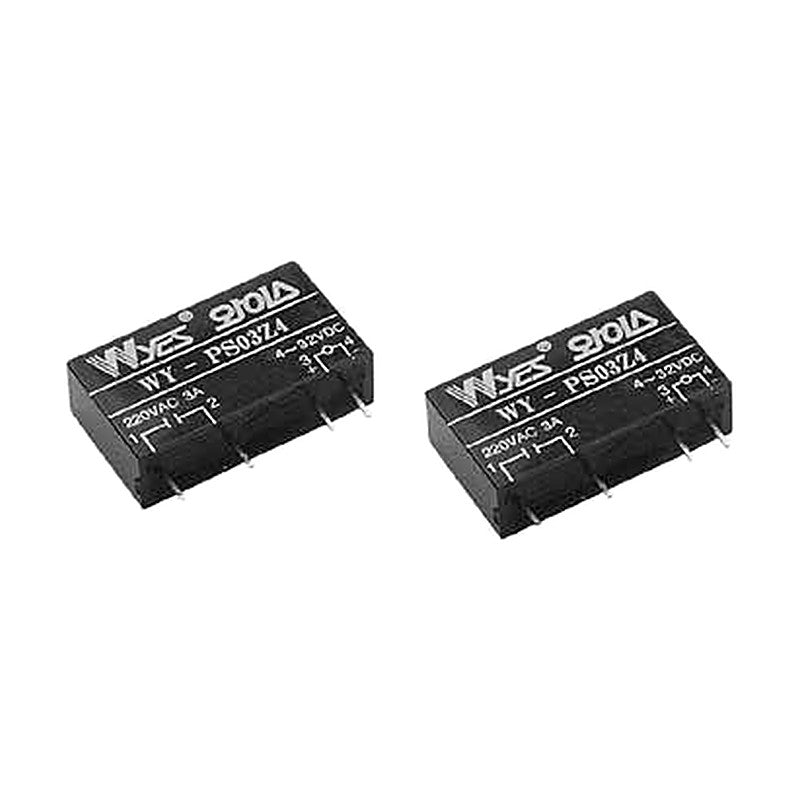

WOONYOUNG PCB Type SSR WYP / WYPS (AC 220V 3A, AC/DC 1A)

WOONYOUNG PCB Type SSR WYP / WYPS (AC 220V 3A, AC/DC 1A)

Small SSR designed to be mounted and modularized directly on PCB, used on AC 90-240V systems.

Key features

  • PCB mounting
  • Input 4-32 VDC
  • AC/DC output version (V4)

Specifications

Input voltage range 4-32 VDC
Dielectric strength 1500 VAC / 1 min
Weight 10 g
WYP1C03Z4 Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Rated load current: 3.0 A (rms 1.5 A) | Peak surge current: 31.5 A | Switching: Zero cross
WYPS1C03Z4 Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Rated load current: 3.0 A (rms 1.5 A) | Peak surge current: 31.5 A | Switching: Zero cross
WYPS1C201V4 Rated voltage: AC/DC 220 V | Voltage range: AC/DC 5-240 V | Rated load current: 1.0 A (rms 0.6 A) | Peak surge current: 6 A | Output: AC/DC
Solid State RelaysWOONYOUNG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG PCB Type SSR WYP / WYPS (AC 220V 3A, AC/DC 1A)

Brand WOONYOUNG·Solid State Relays

Available part numbers (3)

WYP1C03Z4, WYPS1C03Z4, WYPS1C201V4

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYP1C03Z4Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Rated load current: 3.0 A (rms 1.5 A) | Peak surge current: 31.5 A | Switching: Zero cross
WYPS1C03Z4Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Rated load current: 3.0 A (rms 1.5 A) | Peak surge current: 31.5 A | Switching: Zero cross
WYPS1C201V4Rated voltage: AC/DC 220 V | Voltage range: AC/DC 5-240 V | Rated load current: 1.0 A (rms 0.6 A) | Peak surge current: 6 A | Output: AC/DC
