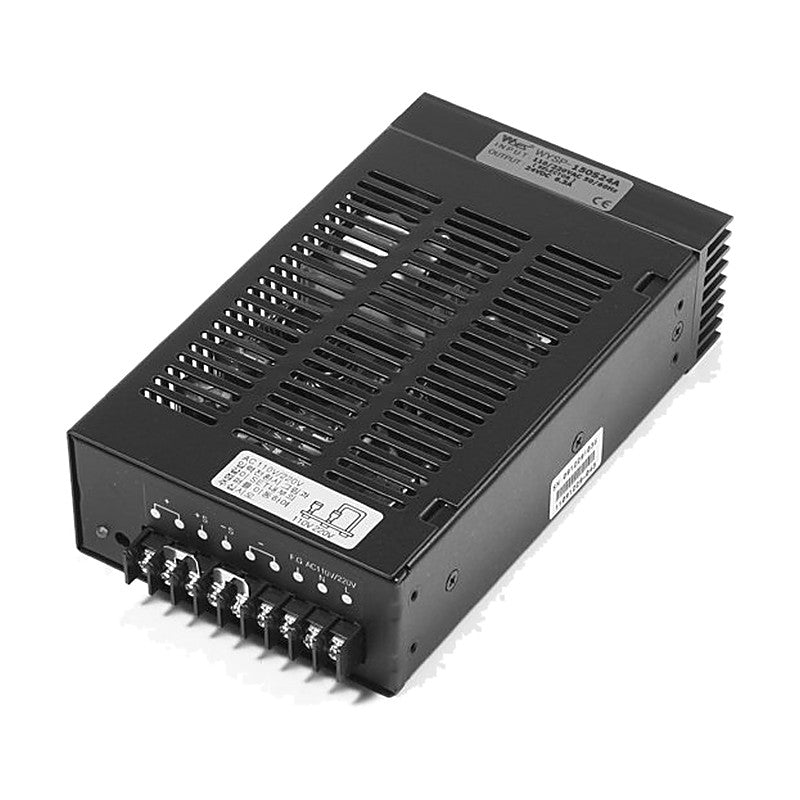

Woonyoung SP Series A Type Enclosed Switching Power Supply, 1-Output, 100-500 W

Woonyoung SP Series A Type Enclosed Switching Power Supply, 1-Output, 100-500 W

Enclosed AC-DC switching power supply with selectable AC 110/220 V input and remote sensing, providing a single regulated DC output from 100 W to 500 W.

Key features

  • Dual input voltage range AC 90-132 V / AC 170-264 V
  • Remote sensing (V. sensor) function
  • Built-in inrush current limiter
  • Over current, over voltage and short circuit protection
  • Remote control on 300/500 W models
  • Fan cooling on 300/500 W models

Specifications

Output type Single output
Input voltage AC 90-132 V / AC 170-264 V
Mounting Chassis mount
Cooling Natural cooling (100-250 W); fan cooling (300/500 W)
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Functions Remote sensing; remote control (300/500 W)
Safety marks CE, RoHS
WYSP-100S05A Output power: 100 W | Output voltage: 5 V DC | Output current: 20.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 70% typ | Weight: 0.9 kg
WYSP-100S12A Output power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 70% typ | Weight: 0.9 kg
WYSP-100S15A Output power: 100 W | Output voltage: 15 V DC | Output current: 6.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-100S24A Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-100S48A Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S05A Output power: 120 W | Output voltage: 5 V DC | Output current: 24.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S12A Output power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S15A Output power: 120 W | Output voltage: 15 V DC | Output current: 8.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S24A Output power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S48A Output power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-150S05A Output power: 150 W | Output voltage: 5 V DC | Output current: 30.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S12A Output power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S15A Output power: 150 W | Output voltage: 15 V DC | Output current: 10.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S24A Output power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-150S48A Output power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-200S12A Output power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-200S15A Output power: 200 W | Output voltage: 15 V DC | Output current: 13.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-200S24A Output power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-200S48A Output power: 200 W | Output voltage: 48 V DC | Output current: 4.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-220S05A Output power: 220 W | Output voltage: 5 V DC | Output current: 44.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S12A Output power: 220 W | Output voltage: 12 V DC | Output current: 18.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S15A Output power: 220 W | Output voltage: 15 V DC | Output current: 14.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S24A Output power: 220 W | Output voltage: 24 V DC | Output current: 9.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S48A Output power: 220 W | Output voltage: 48 V DC | Output current: 4.6 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S12A Output power: 250 W | Output voltage: 12 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S15A Output power: 250 W | Output voltage: 15 V DC | Output current: 16.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S24A Output power: 250 W | Output voltage: 24 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S48A Output power: 250 W | Output voltage: 48 V DC | Output current: 5.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.5 kg
WYSP-300S05A Output power: 300 W | Output voltage: 5 V DC | Output current: 60.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.9 kg
WYSP-300S12A Output power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.9 kg
WYSP-300S15A Output power: 300 W | Output voltage: 15 V DC | Output current: 20.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-300S24A Output power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-300S48A Output power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-500S24A Output power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-500S48A Output power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
Switching Power SuppliesWoonyoung
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series A Type Enclosed Switching Power Supply, 1-Output, 100-500 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (35)

WYSP-100S05A, WYSP-100S12A, WYSP-100S15A, WYSP-100S24A, WYSP-100S48A, WYSP-120S05A, WYSP-120S12A, WYSP-120S15A, WYSP-120S24A, WYSP-120S48A + 25 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-100S05AOutput power: 100 W | Output voltage: 5 V DC | Output current: 20.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 70% typ | Weight: 0.9 kg
WYSP-100S12AOutput power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 70% typ | Weight: 0.9 kg
WYSP-100S15AOutput power: 100 W | Output voltage: 15 V DC | Output current: 6.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-100S24AOutput power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-100S48AOutput power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S05AOutput power: 120 W | Output voltage: 5 V DC | Output current: 24.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S12AOutput power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S15AOutput power: 120 W | Output voltage: 15 V DC | Output current: 8.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S24AOutput power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-120S48AOutput power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 0.9 kg
WYSP-150S05AOutput power: 150 W | Output voltage: 5 V DC | Output current: 30.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S12AOutput power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S15AOutput power: 150 W | Output voltage: 15 V DC | Output current: 10.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-150S24AOutput power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-150S48AOutput power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-200S12AOutput power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-200S15AOutput power: 200 W | Output voltage: 15 V DC | Output current: 13.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.0 kg
WYSP-200S24AOutput power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-200S48AOutput power: 200 W | Output voltage: 48 V DC | Output current: 4.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.0 kg
WYSP-220S05AOutput power: 220 W | Output voltage: 5 V DC | Output current: 44.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S12AOutput power: 220 W | Output voltage: 12 V DC | Output current: 18.4 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S15AOutput power: 220 W | Output voltage: 15 V DC | Output current: 14.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S24AOutput power: 220 W | Output voltage: 24 V DC | Output current: 9.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-220S48AOutput power: 220 W | Output voltage: 48 V DC | Output current: 4.6 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S12AOutput power: 250 W | Output voltage: 12 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S15AOutput power: 250 W | Output voltage: 15 V DC | Output current: 16.7 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S24AOutput power: 250 W | Output voltage: 24 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.5 kg
WYSP-250S48AOutput power: 250 W | Output voltage: 48 V DC | Output current: 5.2 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 78% typ | Weight: 1.5 kg
WYSP-300S05AOutput power: 300 W | Output voltage: 5 V DC | Output current: 60.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.9 kg
WYSP-300S12AOutput power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 75% typ | Weight: 1.9 kg
WYSP-300S15AOutput power: 300 W | Output voltage: 15 V DC | Output current: 20.0 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-300S24AOutput power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-300S48AOutput power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-500S24AOutput power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
WYSP-500S48AOutput power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V (selectable) | Efficiency: 80% typ | Weight: 1.9 kg
