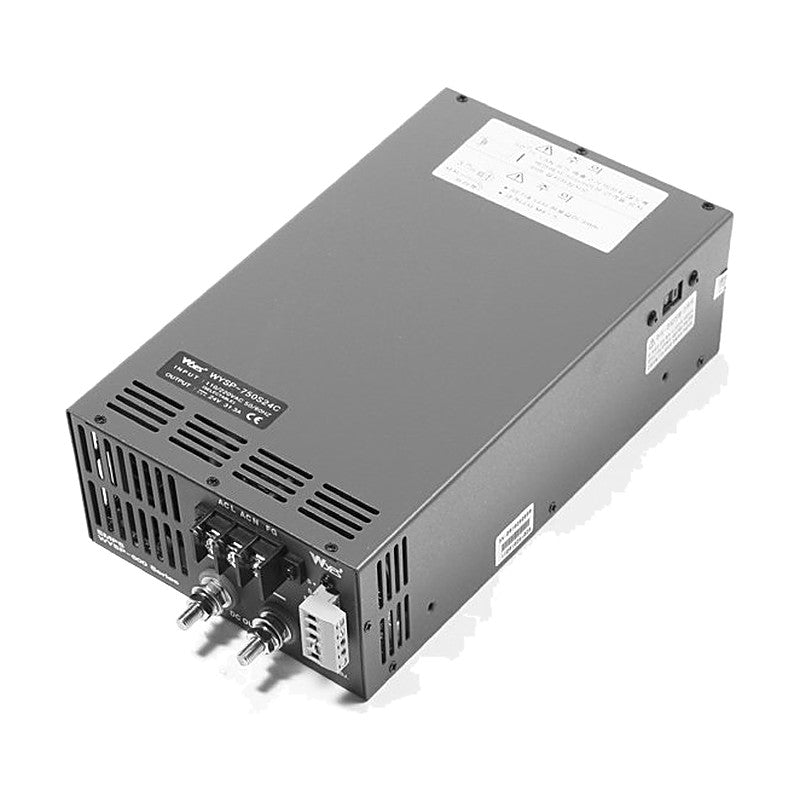

Woonyoung SP Series C Type High-Current Switching Power Supply, 1-Output, 500-1500 W

Woonyoung SP Series C Type High-Current Switching Power Supply, 1-Output, 500-1500 W

High-power enclosed AC-DC switching power supply with high-current output terminals and fan cooling, providing a single DC output from 500 W to 1500 W.

Key features

  • High-current output terminals
  • Over current, over voltage, over temperature and short circuit protection
  • Remote sensing and remote control functions
  • Built-in inrush current limiter
  • Fan cooling
  • Dual input range up to 750 W; AC 170-264 V input for 1000-1500 W

Specifications

Output type Single output
Mounting Chassis mount
Cooling Fan cooling
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Functions Remote sensing, remote control
Safety marks CE, RoHS
WYSP-500S05C Output power: 500 W | Output voltage: 5 V DC | Output current: 100.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-500S12C Output power: 500 W | Output voltage: 12 V DC | Output current: 41.7 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-500S24C Output power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-500S48C Output power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-600S05C Output power: 600 W | Output voltage: 5 V DC | Output current: 120.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-600S12C Output power: 600 W | Output voltage: 12 V DC | Output current: 50.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-600S24C Output power: 600 W | Output voltage: 24 V DC | Output current: 25.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-600S48C Output power: 600 W | Output voltage: 48 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-750S12C Output power: 750 W | Output voltage: 12 V DC | Output current: 62.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 70% typ | Weight: 2.6 kg
WYSP-750S24C Output power: 750 W | Output voltage: 24 V DC | Output current: 31.3 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.6 kg
WYSP-750S48C Output power: 750 W | Output voltage: 48 V DC | Output current: 15.7 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.6 kg
WYSP-1000S05C Output power: 1000 W | Output voltage: 5 V DC | Output current: 200.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1000S12C Output power: 1000 W | Output voltage: 12 V DC | Output current: 83.4 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1000S24C Output power: 1000 W | Output voltage: 24 V DC | Output current: 41.7 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1000S48C Output power: 1000 W | Output voltage: 48 V DC | Output current: 20.9 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
WYSP-1200S05C Output power: 1200 W | Output voltage: 5 V DC | Output current: 240.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1200S12C Output power: 1200 W | Output voltage: 12 V DC | Output current: 100.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1200S24C Output power: 1200 W | Output voltage: 24 V DC | Output current: 50.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1200S48C Output power: 1200 W | Output voltage: 48 V DC | Output current: 25.0 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
WYSP-1500S05C Output power: 1500 W | Output voltage: 5 V DC | Output current: 300.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1500S12C Output power: 1500 W | Output voltage: 12 V DC | Output current: 125.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1500S24C Output power: 1500 W | Output voltage: 24 V DC | Output current: 62.5 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1500S48C Output power: 1500 W | Output voltage: 48 V DC | Output current: 31.3 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
Switching Power SuppliesWoonyoung
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series C Type High-Current Switching Power Supply, 1-Output, 500-1500 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (23)

WYSP-500S05C, WYSP-500S12C, WYSP-500S24C, WYSP-500S48C, WYSP-600S05C, WYSP-600S12C, WYSP-600S24C, WYSP-600S48C, WYSP-750S12C, WYSP-750S24C + 13 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-500S05COutput power: 500 W | Output voltage: 5 V DC | Output current: 100.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-500S12COutput power: 500 W | Output voltage: 12 V DC | Output current: 41.7 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-500S24COutput power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-500S48COutput power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-600S05COutput power: 600 W | Output voltage: 5 V DC | Output current: 120.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-600S12COutput power: 600 W | Output voltage: 12 V DC | Output current: 50.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.5 kg
WYSP-600S24COutput power: 600 W | Output voltage: 24 V DC | Output current: 25.0 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-600S48COutput power: 600 W | Output voltage: 48 V DC | Output current: 12.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.5 kg
WYSP-750S12COutput power: 750 W | Output voltage: 12 V DC | Output current: 62.5 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 70% typ | Weight: 2.6 kg
WYSP-750S24COutput power: 750 W | Output voltage: 24 V DC | Output current: 31.3 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 75% typ | Weight: 2.6 kg
WYSP-750S48COutput power: 750 W | Output voltage: 48 V DC | Output current: 15.7 A | Input voltage: AC 90-132 V / AC 170-264 V | Efficiency: 80% typ | Weight: 2.6 kg
WYSP-1000S05COutput power: 1000 W | Output voltage: 5 V DC | Output current: 200.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1000S12COutput power: 1000 W | Output voltage: 12 V DC | Output current: 83.4 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1000S24COutput power: 1000 W | Output voltage: 24 V DC | Output current: 41.7 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1000S48COutput power: 1000 W | Output voltage: 48 V DC | Output current: 20.9 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
WYSP-1200S05COutput power: 1200 W | Output voltage: 5 V DC | Output current: 240.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1200S12COutput power: 1200 W | Output voltage: 12 V DC | Output current: 100.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1200S24COutput power: 1200 W | Output voltage: 24 V DC | Output current: 50.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1200S48COutput power: 1200 W | Output voltage: 48 V DC | Output current: 25.0 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
WYSP-1500S05COutput power: 1500 W | Output voltage: 5 V DC | Output current: 300.0 A | Input voltage: AC 170-264 V | Efficiency: 75% typ | Weight: 5.1 kg
WYSP-1500S12COutput power: 1500 W | Output voltage: 12 V DC | Output current: 125.0 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1500S24COutput power: 1500 W | Output voltage: 24 V DC | Output current: 62.5 A | Input voltage: AC 170-264 V | Efficiency: 80% typ | Weight: 5.1 kg
WYSP-1500S48COutput power: 1500 W | Output voltage: 48 V DC | Output current: 31.3 A | Input voltage: AC 170-264 V | Efficiency: 85% typ | Weight: 5.1 kg
