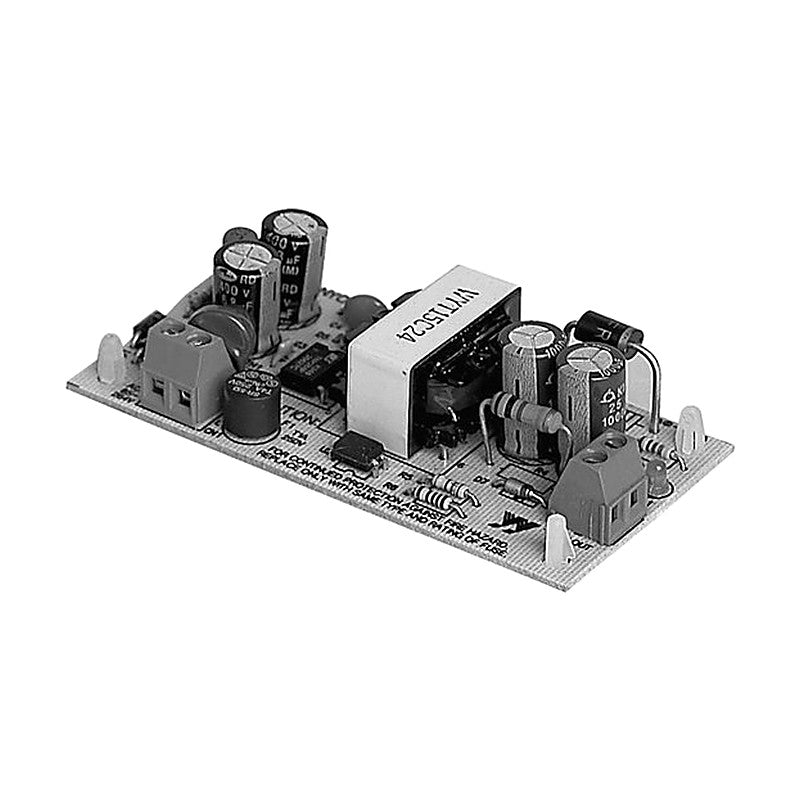

Woonyoung SP Series Open-Frame PCB Switching Power Supply, 10-30 W

Woonyoung SP Series Open-Frame PCB Switching Power Supply, 10-30 W

Open-frame PCB-type AC-DC switching power supply board that provides a single regulated DC output from 10 W to 30 W for built-in equipment use.

Key features

  • Open board (PCB) construction for integration into equipment
  • AC input range 90-264 V
  • Built-in inrush current limiter
  • Over current, short circuit and over temperature protection with auto restart
  • Output voltage adjustment and LED indicator

Specifications

Output type Single output
Input voltage AC 90-264 V, 50/60 Hz
Construction Open frame (PCB)
Cooling Natural cooling
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Hold-up time 15 ms typ
Safety marks CE, RoHS
WYSP-10S05P Output power: 10 W | Output voltage: 5 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYSP-15S12P Output power: 15 W | Output voltage: 12 V DC | Output current: 1.25 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-15S24P Output power: 15 W | Output voltage: 24 V DC | Output current: 0.63 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-30S05P Output power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYSP-30S12P Output power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-30S24P Output power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
Switching Power SuppliesWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series Open-Frame PCB Switching Power Supply, 10-30 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (6)

WYSP-10S05P, WYSP-15S12P, WYSP-15S24P, WYSP-30S05P, WYSP-30S12P, WYSP-30S24P

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-10S05POutput power: 10 W | Output voltage: 5 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYSP-15S12POutput power: 15 W | Output voltage: 12 V DC | Output current: 1.25 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-15S24POutput power: 15 W | Output voltage: 24 V DC | Output current: 0.63 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-30S05POutput power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.2 kg
WYSP-30S12POutput power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
WYSP-30S24POutput power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.2 kg
