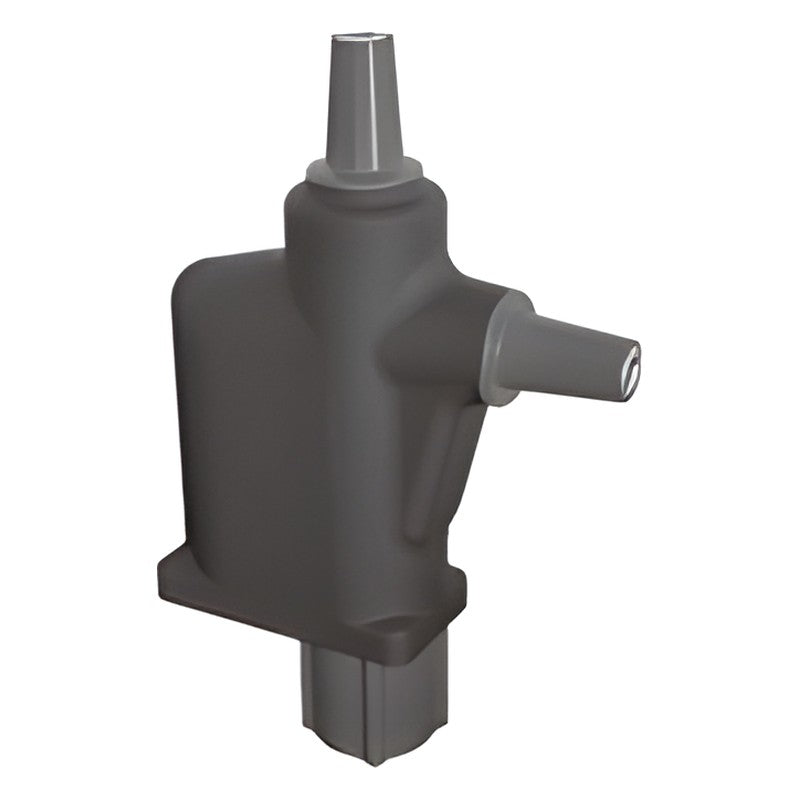

Woonyoung W24I1C Solid-Insulated Load Break Switch Housing, 25.8kV Epoxy

Epoxy-molded housing for solid-insulated multi-circuit load break switchgear installed on 22.9 kV-Y underground distribution lines for line sectionalizing.

Key features

Solid epoxy insulation with no risk of explosion from internal pressure rise
No gas leakage or refilling maintenance required
Built-in vacuum interrupter
Excellent insulation performance
Manufactured by automatic pressure gelation (APG)

Specifications

Operating voltage (max.)	25.8 kV
Power-frequency withstand voltage (60 s)	60 kV
Lightning impulse withstand voltage	125 kV
Maximum system current	630 A
Overcurrent strength (3 s)	12.5 kA
Vacuum interrupter contact stroke	12 mm
Vacuum interrupter mechanical life	10,000 operations
Weight (approx.)	13 kg

W24I1C

Weight: 13 kg
