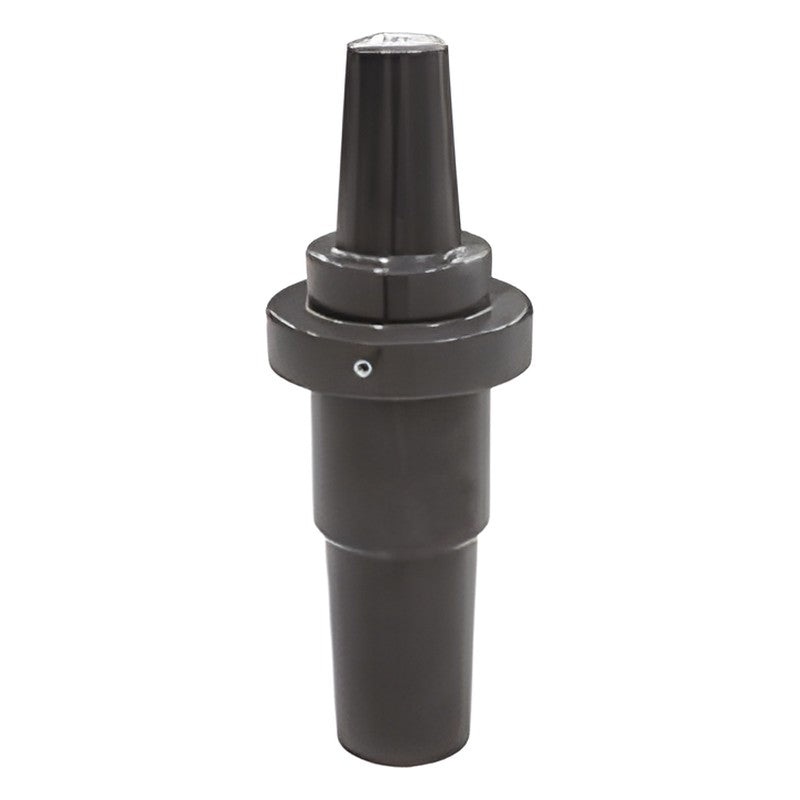

Woonyoung W29I2A / W29I2B Epoxy Mold Bushing for GIS, 29kV

Woonyoung W29I2A / W29I2B Epoxy Mold Bushing for GIS, 29kV

Epoxy-molded bushing for SF6 gas-insulated switchgear with built-in shield for voltage detection, rated 29 kV and 630 A.

Key features

  • Built-in shield for voltage detection
  • For use in SF6 gas-insulated switchgear
  • Designed to IEC standards
  • Manufactured by automatic pressure gelation (APG)

Specifications

Maximum voltage rating 29 kV
AC withstand voltage (60 Hz, 1 min) 40 kV
Continuous current 630 A
PD extinguish level 19 kV
Service condition SF6 gas
Standard IEC
W29I2A Lightning impulse withstand voltage: 125 kV | Weight: 3 kg
W29I2B Lightning impulse withstand voltage: 150 kV | Weight: 4 kg
Epoxy InsulatorsWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung W29I2A / W29I2B Epoxy Mold Bushing for GIS, 29kV

Brand Woonyoung·Epoxy Insulators

Available part numbers (2)

W29I2A, W29I2B

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W29I2ALightning impulse withstand voltage: 125 kV | Weight: 3 kg
W29I2BLightning impulse withstand voltage: 150 kV | Weight: 4 kg
