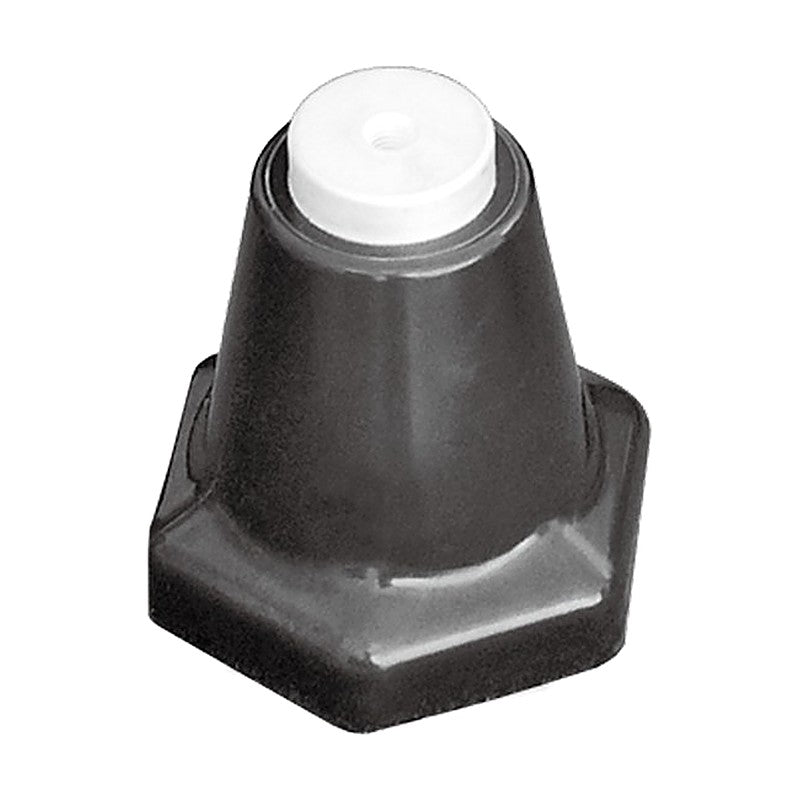

Woonyoung W24I6A Epoxy Cable Socket Size 2, 24/36kV, EN 50181 / DIN 47637

Epoxy-molded size-2 cable socket (bushing) for plug-in cable connection to GIS, ring main units, HV motors, transformers and capacitors.

Key features

Conforms to EN 50181 S1 and DIN 47637
For GIS, ring main units, HV motors, transformers and capacitors
Epoxy mixed under high vacuum and molded by APG for stable shape
High strength and durability with cable plug connections

Specifications

Operating voltage (max.)	24 kV / 36 kV
Lightning impulse withstand voltage	125 kV / 170 kV
Power-frequency withstand voltage (1 min)	50 kV / 70 kV
Maximum system current	800 A
Overcurrent strength (1 s)	25 kA
Weight	2.1 kg
Standard	EN 50181 S1, DIN 47637

W24I6A

Weight: 2.1 kg
