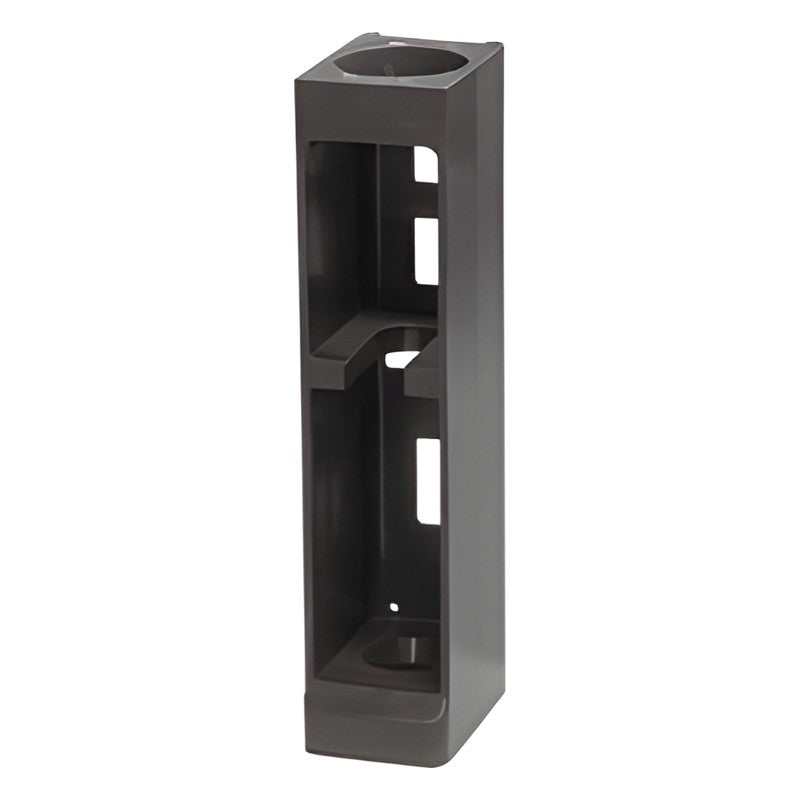

Woonyoung W24I9A Epoxy Mold Vacuum Interrupter Housing, Single-Phase, 25.8kV

Single-phase epoxy-molded housing that supports the vacuum interrupter inside a circuit breaker, acting as an insulating barrier and withstanding VI operating impact.

Key features

Supports the vacuum interrupter inside the circuit breaker
Acts as an insulating barrier
Withstands the impact of VI operation
Good dimensional accuracy, insulation and durability
For indoor service
Manufactured by automatic pressure gelation (APG)

Specifications

Operating voltage (max.)	25.8 kV
Withstand voltage (as printed)	60 kV
Lightning impulse withstand voltage	150 kV
Overcurrent strength (3 s)	25 kA
Weight (approx.)	9 kg
Service condition	Indoor

W24I9A

Weight: 9 kg

Epoxy InsulatorsWoonyoung

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung W24I9A Epoxy Mold Vacuum Interrupter Housing, Single-Phase, 25.8kV

Brand Woonyoung·Epoxy Insulators

Available part numbers (1)

W24I9A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
