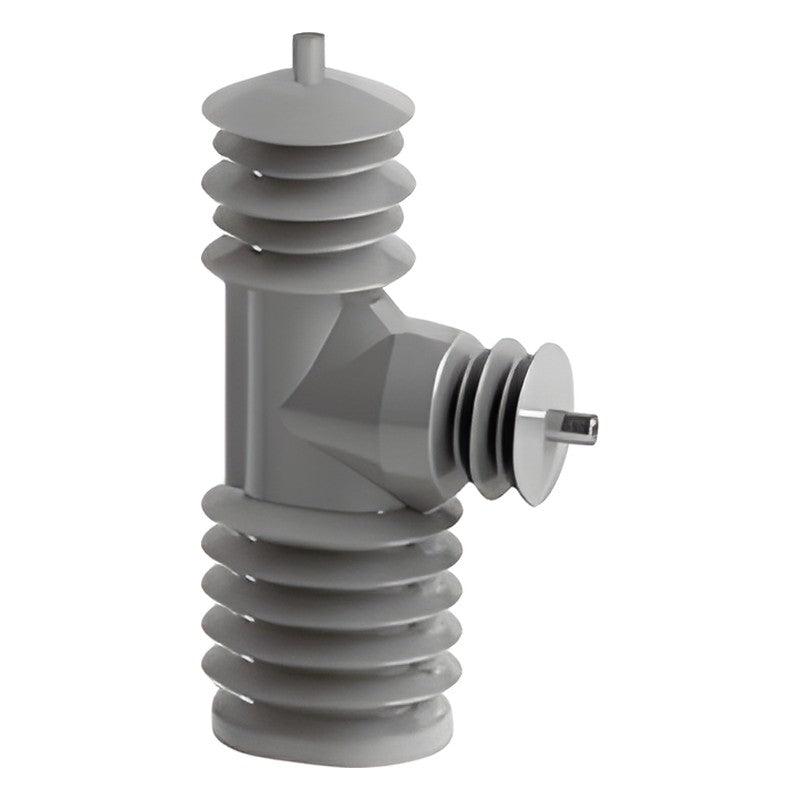

Woonyoung W24I1D Epoxy Mold Load Break Switch Housing, 25.8kV Outdoor

Epoxy-molded outdoor load break switch housing with built-in vacuum interrupter, CT and voltage sensor for branching and sectionalizing overhead distribution lines up to 25.8 kV.

Key features

Polymer (epoxy) insulation, eco-friendly vacuum interruption
Built-in vacuum interrupter, CT and voltage detection sensor
For branching and sectionalizing overhead distribution lines
For outdoor service
Manufactured by automatic pressure gelation (APG)

Specifications

Operating voltage (max.)	25.8 kV
Power-frequency withstand voltage (60 s)	60 kV
Lightning impulse withstand voltage	150 kV
Maximum system current	630 A
Overcurrent strength (3 s)	12.5 kA
Vacuum interrupter contact stroke	12 mm
Vacuum interrupter mechanical life	10,000 operations
Weight (approx.)	20 kg
Service condition	Outdoor

W24I1D

Weight: 20 kg

Epoxy InsulatorsWoonyoung

1 product code available in this family
