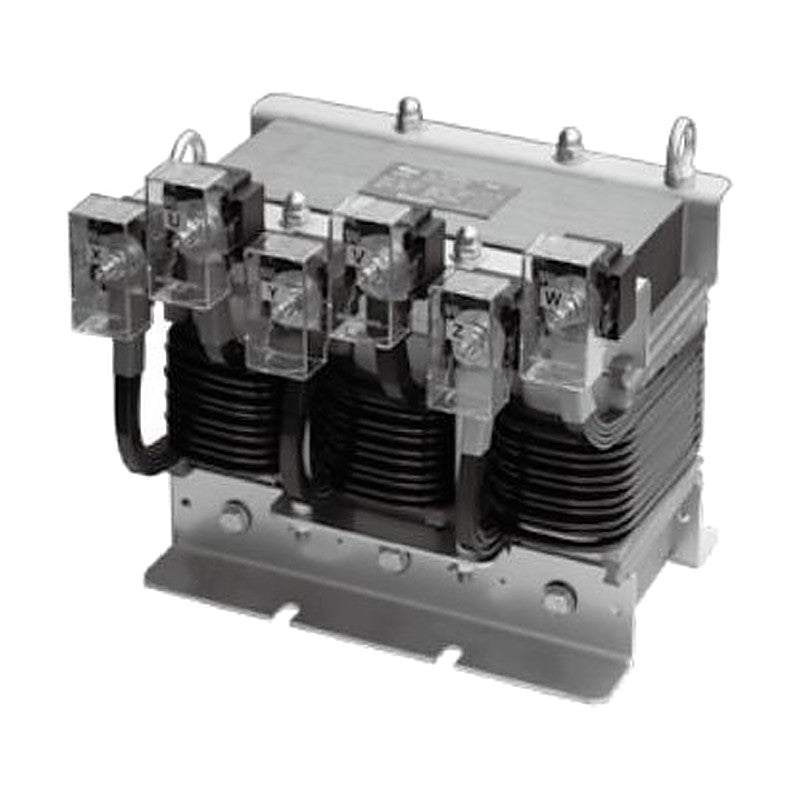

Woonyoung WYACL-S Series Smart AC Output Reactor, Standing Type

Woonyoung WYACL-S Series Smart AC Output Reactor, Standing Type

Three-phase AC output reactor for inverter outputs, standing type, 30 kW to 90 kW, 1.3% impedance.

Key features

  • Suppresses harmonics and reduces motor noise on inverter outputs
  • Individual terminal blocks with safety covers
  • Class 180 (H) insulation system
  • For 200-240 V and 380-480 V inverter outputs
  • Operates 0-60 Hz (to 120 Hz with derating)

Specifications

Phase 3-phase
Insulation class H
Cooling Natural (AN)
Temperature rise 120 K (at 3 kHz switching, 60 Hz operating)
Overload capability 1.6x rated current for 1 min, once per hour
Pollution degree PD3
Protection IP00
Operating temperature & humidity -20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity -20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand 3.0 kVAC for 1 min (terminal to body)
Insulation resistance Min. 100 MOhm at 500 VDC
Standards IEC 61558-1, IEC 61558-2-20
WYACL2-30S Rated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.033 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 24 kg
WYACL2-37S Rated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.027 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 26 kg
WYACL2-45S Rated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.022 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 27 kg
WYACL4-30S Rated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 219 x 231 mm | Weight: 24 kg
WYACL4-37S Rated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 240 x 231 mm | Weight: 26 kg
WYACL4-45S Rated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 240 x 231 mm | Weight: 27 kg
WYACL4-55S Rated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 40 kg
WYACL4-75S Rated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 42 kg
WYACL4-90S Rated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 190 A | Inductance: 0.042 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 43 kg
ReactorsWoonyoung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYACL-S Series Smart AC Output Reactor, Standing Type

Brand Woonyoung·Reactors

Available part numbers (9)

WYACL2-30S, WYACL2-37S, WYACL2-45S, WYACL4-30S, WYACL4-37S, WYACL4-45S, WYACL4-55S, WYACL4-75S, WYACL4-90S

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYACL2-30SRated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.033 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 24 kg
WYACL2-37SRated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.027 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 26 kg
WYACL2-45SRated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.022 mH | Impedance voltage: 1.3% at 220VAC | Dimensions W x H x D: 259 x 233 x 229 mm | Weight: 27 kg
WYACL4-30SRated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 219 x 231 mm | Weight: 24 kg
WYACL4-37SRated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 240 x 231 mm | Weight: 26 kg
WYACL4-45SRated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 259 x 240 x 231 mm | Weight: 27 kg
WYACL4-55SRated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 40 kg
WYACL4-75SRated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 42 kg
WYACL4-90SRated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 190 A | Inductance: 0.042 mH | Impedance voltage: 1.3% at 400VAC | Dimensions W x H x D: 298 x 270 x 255 mm | Weight: 43 kg

Need a different model, or a part not listed here? Send us your parts list →
