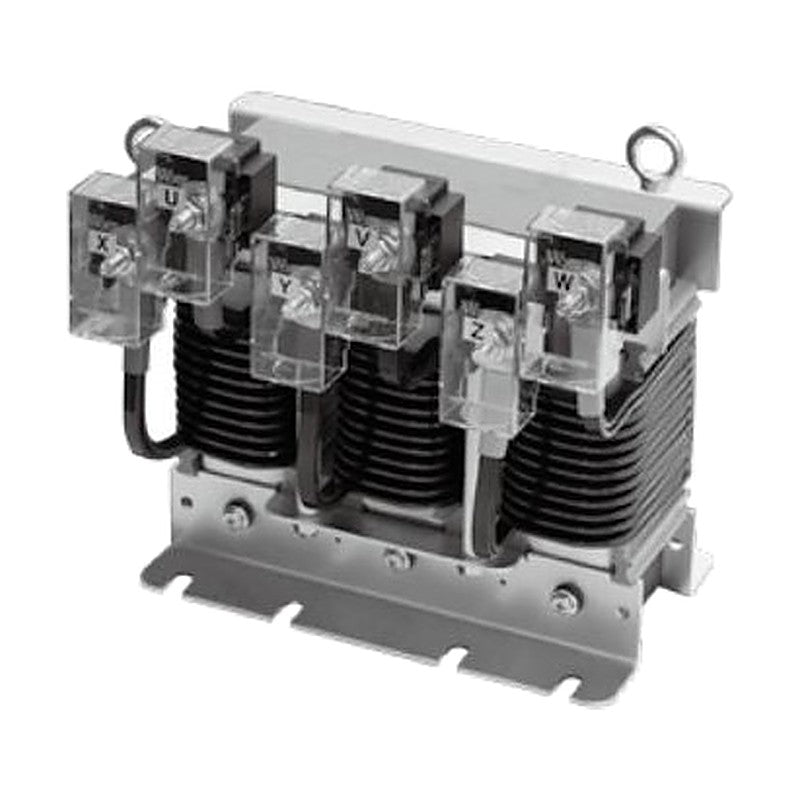

Woonyoung WYACL-SUL Series UL Smart AC Output Reactor, Standing Type

Woonyoung WYACL-SUL Series UL Smart AC Output Reactor, Standing Type

UL-certified three-phase AC output reactor for inverter outputs, standing type, 30 kW to 90 kW.

Key features

  • Suppresses harmonics and reduces motor noise on inverter outputs
  • Individual terminal blocks with safety covers
  • UL certified (cURus)
  • Class 180 (H) insulation system
  • For 200-240 V and 380-480 V inverter outputs
  • Operates 0-60 Hz (to 120 Hz with derating)

Specifications

Phase 3-phase
Insulation class Class 180 (H) insulation system (WY180, OBJY2 / E474918)
Cooling Natural (AN)
Temperature rise 120 K (at 3 kHz switching, 60 Hz operating)
Overload capability 1.6x rated current for 1 min, once per hour
Pollution degree PD3
Protection IP00
Operating temperature & humidity -20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity -20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand 3.0 kVAC for 1 min (terminal to body)
Insulation resistance Min. 100 MOhm at 500 VDC
Standards IEC 61558-1, IEC 61558-2-20, UL 508 / CSA C22.2 No.14, UL 1446
WYACL2-30SUL Rated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.027 mH | Impedance voltage: 4% (as printed) | Dimensions W x H x D: 282 x 222 x 231 mm | Weight: 26 kg | Inductance tolerance: +/-10% (as printed)
WYACL2-37SUL Rated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.022 mH | Impedance voltage: 4% (as printed) | Dimensions W x H x D: 282 x 233 x 231 mm | Weight: 28 kg | Inductance tolerance: +/-10% (as printed)
WYACL2-45SUL Rated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.022 mH | Impedance voltage: 4% (as printed) | Dimensions W x H x D: 282 x 234 x 231 mm | Weight: 28 kg | Inductance tolerance: +/-10% (as printed)
WYACL4-30SUL Rated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 282 x 226 x 231 mm | Weight: 26 kg | Inductance tolerance: +/-20%
WYACL4-37SUL Rated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 282 x 251 x 231 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-45SUL Rated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 282 x 252 x 231 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-55SUL Rated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 252 x 255 mm | Weight: 41 kg | Inductance tolerance: +/-20%
WYACL4-75SUL Rated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 264 x 255 mm | Weight: 44 kg | Inductance tolerance: +/-20%
WYACL4-90SUL Rated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 190 A | Inductance: 0.042 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 265 x 255 mm | Weight: 44 kg | Inductance tolerance: +/-20%
