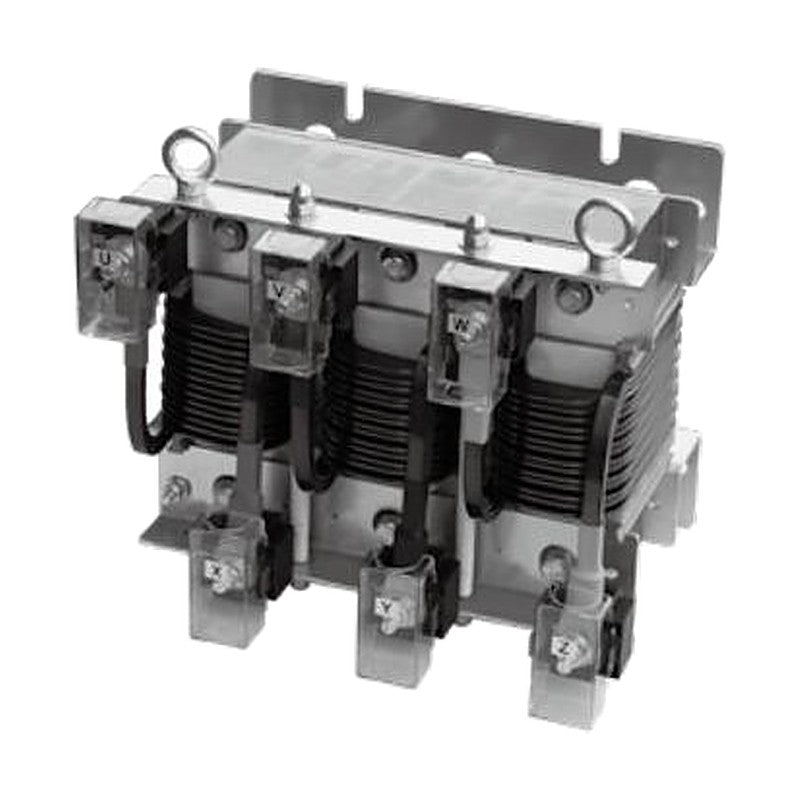

Woonyoung WYACL-W Series Smart AC Output Reactor, Wall Mounting

Three-phase AC output reactor for inverter outputs, wall-mounting type, 18.5 kW to 90 kW, 1.3% impedance.

Key features

Suppresses harmonics and reduces motor noise on inverter outputs
Individual terminal blocks with safety covers
Class 180 (H) insulation system
For 200-240 V and 380-480 V inverter outputs
Operates 0-60 Hz (to 120 Hz with derating)

Specifications

Phase	3-phase
Insulation class	H
Cooling	Natural (AN)
Temperature rise	120 K (at 3 kHz switching, 60 Hz operating)
Overload capability	1.6x rated current for 1 min, once per hour
Pollution degree	PD3
Protection	IP00
Operating temperature & humidity	-20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity	-20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand	3.0 kVAC for 1 min (terminal to body)
Insulation resistance	Min. 100 MOhm at 500 VDC
Standards	IEC 61558-1, IEC 61558-2-20

WYACL2-18.5W		Rated voltage: 200-240V AC \| Inverter capacity: 18.5 kW \| Rated current: 100 A \| Inductance: 0.044 mH \| Impedance voltage: 1.3% at 220VAC \| Dimensions W x H x D: 219 x 189 x 177 mm \| Weight: 12 kg
WYACL2-22W		Rated voltage: 200-240V AC \| Inverter capacity: 22 kW \| Rated current: 116 A \| Inductance: 0.038 mH \| Impedance voltage: 1.3% at 220VAC \| Dimensions W x H x D: 219 x 189 x 177 mm \| Weight: 13 kg
WYACL2-30W		Rated voltage: 200-240V AC \| Inverter capacity: 30 kW \| Rated current: 134 A \| Inductance: 0.033 mH \| Impedance voltage: 1.3% at 220VAC \| Dimensions W x H x D: 258 x 214 x 209 mm \| Weight: 24 kg
WYACL2-37W		Rated voltage: 200-240V AC \| Inverter capacity: 37 kW \| Rated current: 164 A \| Inductance: 0.027 mH \| Impedance voltage: 1.3% at 220VAC \| Dimensions W x H x D: 258 x 214 x 209 mm \| Weight: 26 kg
WYACL2-45W		Rated voltage: 200-240V AC \| Inverter capacity: 45 kW \| Rated current: 200 A \| Inductance: 0.022 mH \| Impedance voltage: 1.3% at 220VAC \| Dimensions W x H x D: 258 x 214 x 209 mm \| Weight: 27 kg
WYACL4-18.5W		Rated voltage: 380-480V AC \| Inverter capacity: 18.5 kW \| Rated current: 50 A \| Inductance: 0.159 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 219 x 189 x 168 mm \| Weight: 12 kg
WYACL4-22W		Rated voltage: 380-480V AC \| Inverter capacity: 22 kW \| Rated current: 58 A \| Inductance: 0.137 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 219 x 189 x 168 mm \| Weight: 13 kg
WYACL4-30W		Rated voltage: 380-480V AC \| Inverter capacity: 30 kW \| Rated current: 67 A \| Inductance: 0.119 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 258 x 214 x 190 mm \| Weight: 24 kg
WYACL4-37W		Rated voltage: 380-480V AC \| Inverter capacity: 37 kW \| Rated current: 82 A \| Inductance: 0.097 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 258 x 214 x 210 mm \| Weight: 26 kg
WYACL4-45W		Rated voltage: 380-480V AC \| Inverter capacity: 45 kW \| Rated current: 100 A \| Inductance: 0.080 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 258 x 214 x 215 mm \| Weight: 27 kg
WYACL4-55W		Rated voltage: 380-480V AC \| Inverter capacity: 55 kW \| Rated current: 121 A \| Inductance: 0.066 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 299 x 247 x 265 mm \| Weight: 40 kg
WYACL4-75W		Rated voltage: 380-480V AC \| Inverter capacity: 75 kW \| Rated current: 167 A \| Inductance: 0.048 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 299 x 247 x 265 mm \| Weight: 42 kg
WYACL4-90W		Rated voltage: 380-480V AC \| Inverter capacity: 90 kW \| Rated current: 190 A \| Inductance: 0.042 mH \| Impedance voltage: 1.3% at 400VAC \| Dimensions W x H x D: 299 x 247 x 265 mm \| Weight: 43 kg
