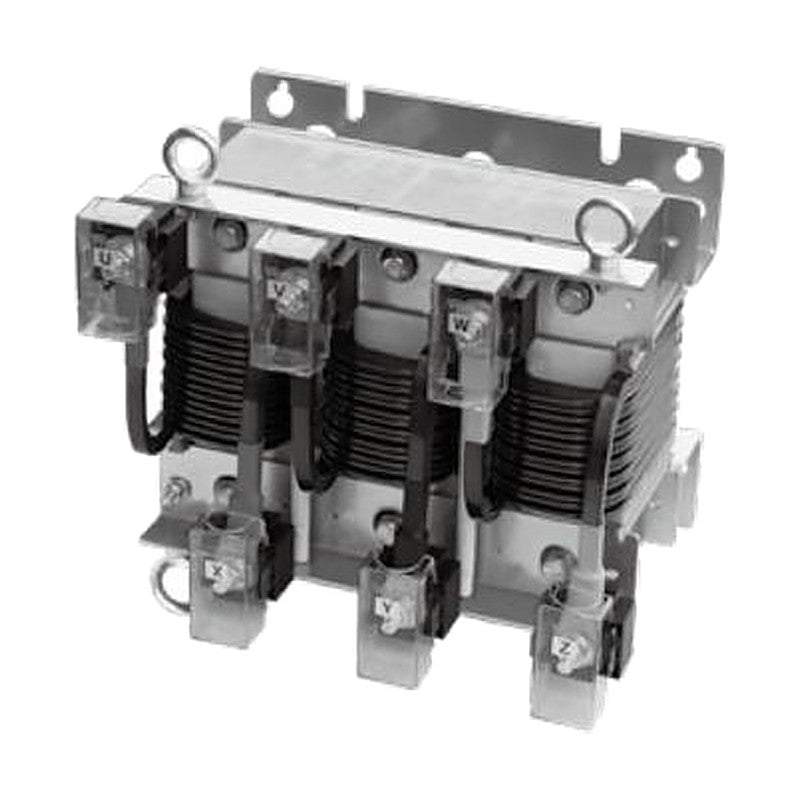

Woonyoung WYACL-WUL Series UL Smart AC Output Reactor, Wall Mounting

Woonyoung WYACL-WUL Series UL Smart AC Output Reactor, Wall Mounting

UL-certified three-phase AC output (load) reactor for inverter outputs, wall-mounting type, 3.7 kW to 90 kW, 1.3% impedance.

Key features

  • Suppresses harmonics and reduces motor noise on inverter outputs
  • Individual terminal blocks with safety covers
  • UL certified (cURus)
  • Class 180 (H) insulation system
  • For 200-240 V and 380-480 V inverter outputs
  • Operates 0-60 Hz (to 120 Hz with derating)

Specifications

Phase 3-phase
Insulation class Class 180 (H) insulation system (WY180, OBJY2 / E474918)
Cooling Natural (AN)
Temperature rise 120 K (at 3 kHz switching, 60 Hz operating)
Overload capability 1.6x rated current for 1 min, once per hour
Pollution degree PD3
Protection IP00
Operating temperature & humidity -20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity -20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand 3.0 kVAC for 1 min (terminal to body)
Insulation resistance Min. 100 MOhm at 500 VDC
Standards IEC 61558-1, IEC 61558-2-20, UL 508 / CSA C22.2 No.14, UL 1446
WYACL2-3.7WUL Rated voltage: 200-240V AC | Inverter capacity: 3.7 kW | Rated current: 20 A | Inductance: 0.219 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-5.5WUL Rated voltage: 200-240V AC | Inverter capacity: 5.5 kW | Rated current: 30 A | Inductance: 0.146 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-7.5WUL Rated voltage: 200-240V AC | Inverter capacity: 7.5 kW | Rated current: 40 A | Inductance: 0.110 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-11WUL Rated voltage: 200-240V AC | Inverter capacity: 11 kW | Rated current: 60 A | Inductance: 0.073 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 189 x 168 mm | Weight: 11 kg | Inductance tolerance: +/-20%
WYACL2-15WUL Rated voltage: 200-240V AC | Inverter capacity: 15 kW | Rated current: 76 A | Inductance: 0.058 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 189 x 169 mm | Weight: 11 kg | Inductance tolerance: +/-20%
WYACL2-18.5WUL Rated voltage: 200-240V AC | Inverter capacity: 18.5 kW | Rated current: 100 A | Inductance: 0.044 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 184 mm | Weight: 14 kg | Inductance tolerance: +/-20%
WYACL2-22WUL Rated voltage: 200-240V AC | Inverter capacity: 22 kW | Rated current: 116 A | Inductance: 0.038 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 185 mm | Weight: 14 kg | Inductance tolerance: +/-20%
WYACL2-30WUL Rated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.033 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 236 mm | Weight: 26 kg | Inductance tolerance: +/-20%
WYACL2-37WUL Rated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.027 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 247 mm | Weight: 28 kg | Inductance tolerance: +/-20%
WYACL2-45WUL Rated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.022 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 248 mm | Weight: 28 kg | Inductance tolerance: +/-20%
WYACL4-3.7WUL Rated voltage: 380-480V AC | Inverter capacity: 3.7 kW | Rated current: 10 A | Inductance: 0.796 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-5.5WUL Rated voltage: 380-480V AC | Inverter capacity: 5.5 kW | Rated current: 15 A | Inductance: 0.531 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-7.5WUL Rated voltage: 380-480V AC | Inverter capacity: 7.5 kW | Rated current: 20 A | Inductance: 0.398 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-11WUL Rated voltage: 380-480V AC | Inverter capacity: 11 kW | Rated current: 30 A | Inductance: 0.265 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 175 x 158 mm | Weight: 10 kg | Inductance tolerance: +/-20%
WYACL4-15WUL Rated voltage: 380-480V AC | Inverter capacity: 15 kW | Rated current: 38 A | Inductance: 0.210 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 175 x 158 mm | Weight: 10 kg | Inductance tolerance: +/-20%
WYACL4-18.5WUL Rated voltage: 380-480V AC | Inverter capacity: 18.5 kW | Rated current: 50 A | Inductance: 0.159 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 175 mm | Weight: 13 kg | Inductance tolerance: +/-20%
WYACL4-22WUL Rated voltage: 380-480V AC | Inverter capacity: 22 kW | Rated current: 58 A | Inductance: 0.137 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 175 mm | Weight: 13 kg | Inductance tolerance: +/-20%
WYACL4-30WUL Rated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 240 mm | Weight: 26 kg | Inductance tolerance: +/-20%
WYACL4-37WUL Rated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 265 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-45WUL Rated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 266 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-55WUL Rated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 266 mm | Weight: 41 kg | Inductance tolerance: +/-20%
WYACL4-75WUL Rated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 278 mm | Weight: 44 kg | Inductance tolerance: +/-20%
WYACL4-90WUL Rated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 190 A | Inductance: 0.042 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 278 mm | Weight: 44 kg | Inductance tolerance: +/-20%
ReactorsWoonyoung
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYACL-WUL Series UL Smart AC Output Reactor, Wall Mounting

Brand Woonyoung·Reactors

Available part numbers (23)

WYACL2-3.7WUL, WYACL2-5.5WUL, WYACL2-7.5WUL, WYACL2-11WUL, WYACL2-15WUL, WYACL2-18.5WUL, WYACL2-22WUL, WYACL2-30WUL, WYACL2-37WUL, WYACL2-45WUL + 13 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYACL2-3.7WULRated voltage: 200-240V AC | Inverter capacity: 3.7 kW | Rated current: 20 A | Inductance: 0.219 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-5.5WULRated voltage: 200-240V AC | Inverter capacity: 5.5 kW | Rated current: 30 A | Inductance: 0.146 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-7.5WULRated voltage: 200-240V AC | Inverter capacity: 7.5 kW | Rated current: 40 A | Inductance: 0.110 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 145 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL2-11WULRated voltage: 200-240V AC | Inverter capacity: 11 kW | Rated current: 60 A | Inductance: 0.073 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 189 x 168 mm | Weight: 11 kg | Inductance tolerance: +/-20%
WYACL2-15WULRated voltage: 200-240V AC | Inverter capacity: 15 kW | Rated current: 76 A | Inductance: 0.058 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 189 x 169 mm | Weight: 11 kg | Inductance tolerance: +/-20%
WYACL2-18.5WULRated voltage: 200-240V AC | Inverter capacity: 18.5 kW | Rated current: 100 A | Inductance: 0.044 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 184 mm | Weight: 14 kg | Inductance tolerance: +/-20%
WYACL2-22WULRated voltage: 200-240V AC | Inverter capacity: 22 kW | Rated current: 116 A | Inductance: 0.038 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 185 mm | Weight: 14 kg | Inductance tolerance: +/-20%
WYACL2-30WULRated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.033 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 236 mm | Weight: 26 kg | Inductance tolerance: +/-20%
WYACL2-37WULRated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.027 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 247 mm | Weight: 28 kg | Inductance tolerance: +/-20%
WYACL2-45WULRated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.022 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 248 mm | Weight: 28 kg | Inductance tolerance: +/-20%
WYACL4-3.7WULRated voltage: 380-480V AC | Inverter capacity: 3.7 kW | Rated current: 10 A | Inductance: 0.796 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-5.5WULRated voltage: 380-480V AC | Inverter capacity: 5.5 kW | Rated current: 15 A | Inductance: 0.531 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-7.5WULRated voltage: 380-480V AC | Inverter capacity: 7.5 kW | Rated current: 20 A | Inductance: 0.398 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 230 x 168 x 150 mm | Weight: 7 kg | Inductance tolerance: +/-20%
WYACL4-11WULRated voltage: 380-480V AC | Inverter capacity: 11 kW | Rated current: 30 A | Inductance: 0.265 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 175 x 158 mm | Weight: 10 kg | Inductance tolerance: +/-20%
WYACL4-15WULRated voltage: 380-480V AC | Inverter capacity: 15 kW | Rated current: 38 A | Inductance: 0.210 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 175 x 158 mm | Weight: 10 kg | Inductance tolerance: +/-20%
WYACL4-18.5WULRated voltage: 380-480V AC | Inverter capacity: 18.5 kW | Rated current: 50 A | Inductance: 0.159 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 175 mm | Weight: 13 kg | Inductance tolerance: +/-20%
WYACL4-22WULRated voltage: 380-480V AC | Inverter capacity: 22 kW | Rated current: 58 A | Inductance: 0.137 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 250 x 199 x 175 mm | Weight: 13 kg | Inductance tolerance: +/-20%
WYACL4-30WULRated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 240 mm | Weight: 26 kg | Inductance tolerance: +/-20%
WYACL4-37WULRated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 265 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-45WULRated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 290 x 234 x 266 mm | Weight: 30 kg | Inductance tolerance: +/-20%
WYACL4-55WULRated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 266 mm | Weight: 41 kg | Inductance tolerance: +/-20%
WYACL4-75WULRated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 278 mm | Weight: 44 kg | Inductance tolerance: +/-20%
WYACL4-90WULRated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 190 A | Inductance: 0.042 mH | Impedance voltage: 1.3% | Dimensions W x H x D: 330 x 253 x 278 mm | Weight: 44 kg | Inductance tolerance: +/-20%
