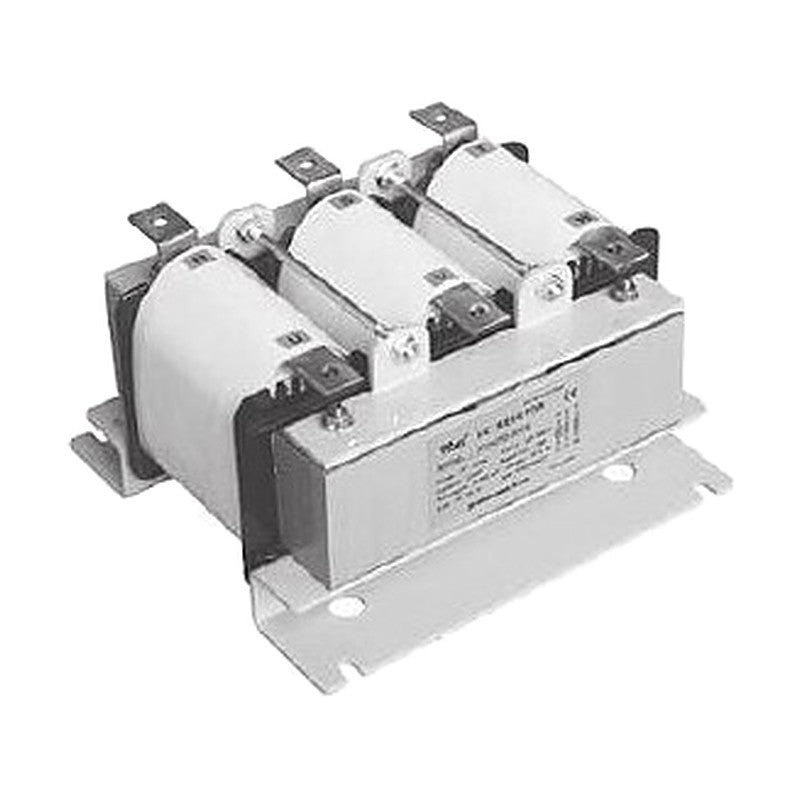

Woonyoung WYACL4 Series AC Output Reactor, 380/440 V

Woonyoung WYACL4 Series AC Output Reactor, 380/440 V

Three-phase AC output reactor for inverter outputs on 380/440 V systems, 0.75 kW to 375 kW, impedance voltage 3 VAC, to reduce motor noise.

Key features

  • Reduces motor noise and output harmonics
  • Ratings from 0.75 kW to 375 kW
  • A type up to 7.5 kW, B type above
  • IP20, sound level below 65 dB

Specifications

Dielectric withstand AC 3000 V / 1 min
Insulation resistance DC 500 V / 100 MOhm
Protection IP20
Sound level Less than 65 dB
Operating temperature -20 to +40 C
Rating 3-phase 380/440 V, 50/60 Hz
Impedance voltage 3 VAC
WYACL4-0.75 Inverter capacity: 0.75 kW | Rated current: 1.7 A | Inductance: 4.683 mH | Dimensions W x D x H: 140 x 174 x 92 mm | Weight: 3.2 kg | Construction type: A
WYACL4-1.5 Inverter capacity: 1.5 kW | Rated current: 3.4 A | Inductance: 2.342 mH | Dimensions W x D x H: 160 x 188 x 99 mm | Weight: 3.6 kg | Construction type: A
WYACL4-2.2 Inverter capacity: 2.2 kW | Rated current: 7.5 A | Inductance: 1.062 mH | Dimensions W x D x H: 194 x 221 x 102 mm | Weight: 5.1 kg | Construction type: A
WYACL4-3.7 Inverter capacity: 3.7 kW | Rated current: 10 A | Inductance: 0.796 mH | Dimensions W x D x H: 194 x 221 x 102 mm | Weight: 5.8 kg | Construction type: A
WYACL4-5.5 Inverter capacity: 5.5 kW | Rated current: 15 A | Inductance: 0.531 mH | Dimensions W x D x H: 194 x 224 x 131 mm | Weight: 9.2 kg | Construction type: A
WYACL4-7.5 Inverter capacity: 7.5 kW | Rated current: 20 A | Inductance: 0.398 mH | Dimensions W x D x H: 194 x 224 x 131 mm | Weight: 10.5 kg | Construction type: A
WYACL4-11 Inverter capacity: 11 kW | Rated current: 30 A | Inductance: 0.265 mH | Dimensions W x D x H: 232 x 219 x 146 mm | Weight: 12 kg | Construction type: B
WYACL4-15 Inverter capacity: 15 kW | Rated current: 38 A | Inductance: 0.210 mH | Dimensions W x D x H: 232 x 219 x 146 mm | Weight: 13 kg | Construction type: B
WYACL4-18.5 Inverter capacity: 18.5 kW | Rated current: 50 A | Inductance: 0.159 mH | Dimensions W x D x H: 256 x 249 x 165 mm | Weight: 18 kg | Construction type: B
WYACL4-22 Inverter capacity: 22 kW | Rated current: 58 A | Inductance: 0.137 mH | Dimensions W x D x H: 256 x 249 x 165 mm | Weight: 20 kg | Construction type: B
WYACL4-30 Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.119 mH | Dimensions W x D x H: 256 x 249 x 165 mm | Weight: 22 kg | Construction type: B
WYACL4-37 Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.097 mH | Dimensions W x D x H: 300 x 249 x 206 mm | Weight: 27 kg | Construction type: B
WYACL4-45 Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.080 mH | Dimensions W x D x H: 300 x 249 x 206 mm | Weight: 31 kg | Construction type: B
WYACL4-55 Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.066 mH | Dimensions W x D x H: 335 x 262 x 202 mm | Weight: 36 kg | Construction type: B
WYACL4-75 Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.048 mH | Dimensions W x D x H: 335 x 262 x 202 mm | Weight: 40 kg | Construction type: B
WYACL4-90 Inverter capacity: 90 kW | Rated current: 201 A | Inductance: 0.040 mH | Dimensions W x D x H: 335 x 262 x 202 mm | Weight: 48 kg | Construction type: B
WYACL4-110 Inverter capacity: 110 kW | Rated current: 245 A | Inductance: 0.032 mH | Dimensions W x D x H: 335 x 262 x 258 mm | Weight: 50 kg | Construction type: B
WYACL4-132 Inverter capacity: 132 kW | Rated current: 290 A | Inductance: 0.027 mH | Dimensions W x D x H: 365 x 297 x 223 mm | Weight: 50 kg | Construction type: B
WYACL4-160 Inverter capacity: 160 kW | Rated current: 357 A | Inductance: 0.022 mH | Dimensions W x D x H: 365 x 297 x 224 mm | Weight: 50 kg | Construction type: B
WYACL4-185 Inverter capacity: 185 kW | Rated current: 420 A | Inductance: 0.019 mH | Dimensions W x D x H: 365 x 297 x 223 mm | Weight: 55 kg | Construction type: B
WYACL4-220 Inverter capacity: 220 kW | Rated current: 500 A | Inductance: 0.016 mH | Dimensions W x D x H: 365 x 297 x 223 mm | Weight: 68 kg | Construction type: B
WYACL4-250 Inverter capacity: 250 kW | Rated current: 560 A | Inductance: 0.014 mH | Dimensions W x D x H: 365 x 297 x 223 mm | Weight: 68 kg | Construction type: B
WYACL4-280 Inverter capacity: 280 kW | Rated current: 630 A | Inductance: 0.013 mH | Dimensions W x D x H: 470 x 337 x 290 mm | Weight: 72 kg | Construction type: B
WYACL4-315 Inverter capacity: 315 kW | Rated current: 710 A | Inductance: 0.011 mH | Dimensions W x D x H: 470 x 351 x 270 mm | Weight: 80 kg | Construction type: B
WYACL4-350 Inverter capacity: 350 kW | Rated current: 800 A | Inductance: 0.010 mH | Dimensions W x D x H: 420 x 298 x 279 mm | Weight: 90 kg | Construction type: B
WYACL4-375 Inverter capacity: 375 kW | Rated current: 840 A | Inductance: 0.009 mH | Dimensions W x D x H: 420 x 298 x 279 mm | Weight: 95 kg | Construction type: B
