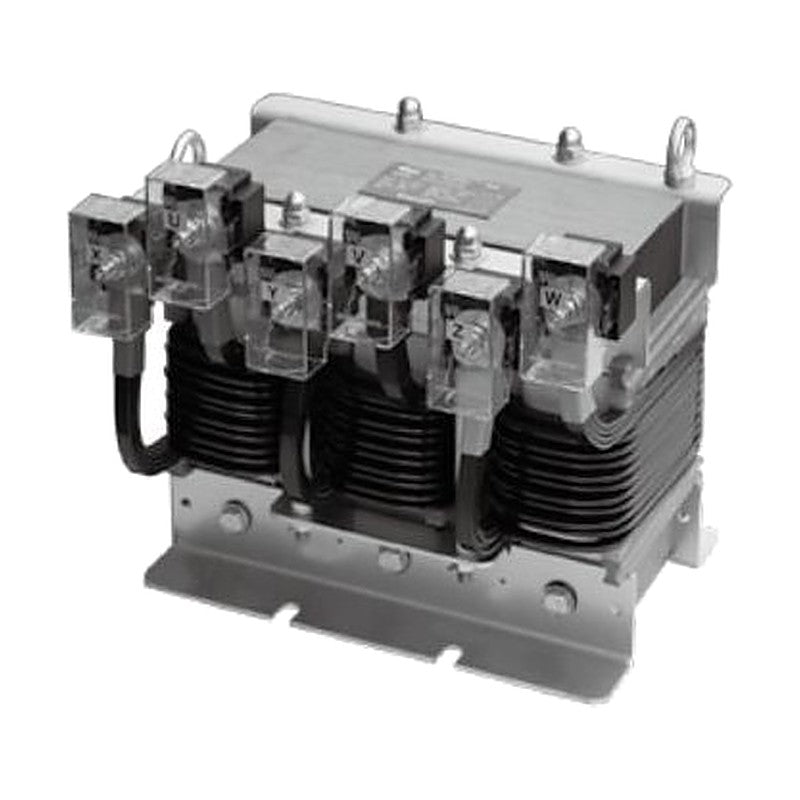

Woonyoung WYACR-S Series Smart AC Input Reactor, Standing Type

Woonyoung WYACR-S Series Smart AC Input Reactor, Standing Type

Three-phase AC input reactor for inverters, standing type, 30 kW to 90 kW, 4% impedance.

Key features

  • Improves power factor and suppresses input harmonics caused by inverters
  • Individual terminal blocks with safety covers
  • Class 180 (H) insulation system
  • For 200-240 V and 380-480 V inverter inputs
  • 1.6x overload for 1 min

Specifications

Phase 3-phase
Insulation class H
Cooling Natural (AN)
Temperature rise 120 K
Overload capability 1.6x rated current for 1 min, once per hour
Pollution degree PD3
Protection IP00
Operating temperature & humidity -20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity -20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand 3.0 kVAC for 1 min (terminal to body)
Insulation resistance Min. 100 MOhm at 500 VDC
Standards IEC 61558-1, IEC 61558-2-20
WYACR2-30S Rated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.101 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 216 x 199 mm | Weight: 17 kg
WYACR2-37S Rated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.082 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 231 x 200 mm | Weight: 18 kg
WYACR2-45S Rated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.067 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 231 x 200 mm | Weight: 19 kg
WYACR4-30S Rated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.366 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 220 x 199 mm | Weight: 17 kg
WYACR4-37S Rated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.299 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 241 x 199 mm | Weight: 18 kg
WYACR4-45S Rated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.245 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 241 x 199 mm | Weight: 19 kg
WYACR4-55S Rated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.203 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 241 x 230 mm | Weight: 28 kg
WYACR4-75S Rated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.147 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 261 x 230 mm | Weight: 29 kg
WYACR4-90S Rated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 201 A | Inductance: 0.122 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 261 x 230 mm | Weight: 30 kg
ReactorsWoonyoung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYACR-S Series Smart AC Input Reactor, Standing Type

Brand Woonyoung·Reactors

Available part numbers (9)

WYACR2-30S, WYACR2-37S, WYACR2-45S, WYACR4-30S, WYACR4-37S, WYACR4-45S, WYACR4-55S, WYACR4-75S, WYACR4-90S

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYACR2-30SRated voltage: 200-240V AC | Inverter capacity: 30 kW | Rated current: 134 A | Inductance: 0.101 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 216 x 199 mm | Weight: 17 kg
WYACR2-37SRated voltage: 200-240V AC | Inverter capacity: 37 kW | Rated current: 164 A | Inductance: 0.082 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 231 x 200 mm | Weight: 18 kg
WYACR2-45SRated voltage: 200-240V AC | Inverter capacity: 45 kW | Rated current: 200 A | Inductance: 0.067 mH | Impedance voltage: 4% at 220VAC | Dimensions W x H x D: 259 x 231 x 200 mm | Weight: 19 kg
WYACR4-30SRated voltage: 380-480V AC | Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.366 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 220 x 199 mm | Weight: 17 kg
WYACR4-37SRated voltage: 380-480V AC | Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.299 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 241 x 199 mm | Weight: 18 kg
WYACR4-45SRated voltage: 380-480V AC | Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.245 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 259 x 241 x 199 mm | Weight: 19 kg
WYACR4-55SRated voltage: 380-480V AC | Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.203 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 241 x 230 mm | Weight: 28 kg
WYACR4-75SRated voltage: 380-480V AC | Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.147 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 261 x 230 mm | Weight: 29 kg
WYACR4-90SRated voltage: 380-480V AC | Inverter capacity: 90 kW | Rated current: 201 A | Inductance: 0.122 mH | Impedance voltage: 4% at 400VAC | Dimensions W x H x D: 298 x 261 x 230 mm | Weight: 30 kg
