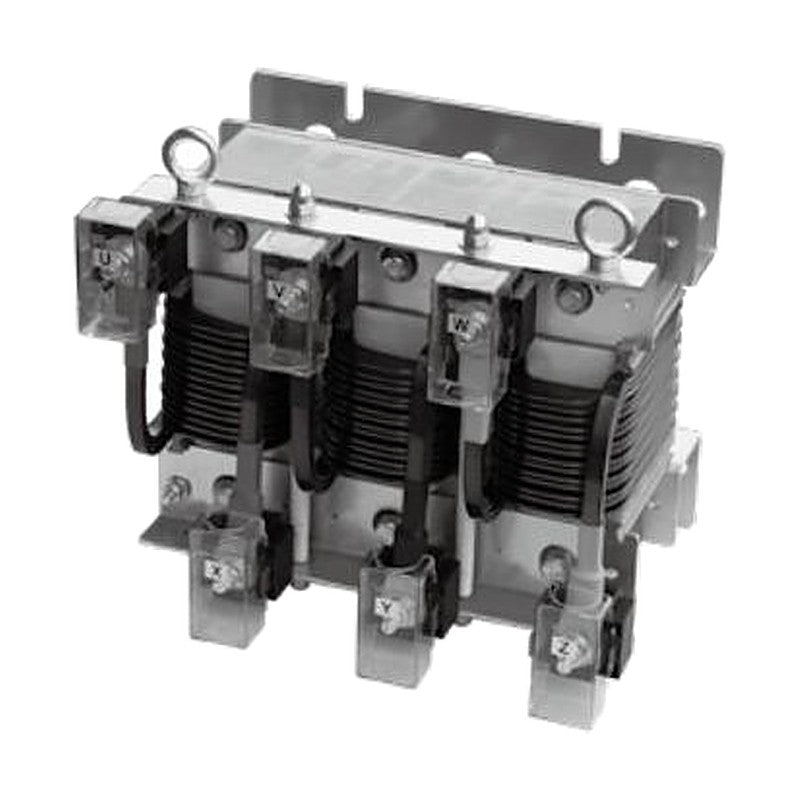

Woonyoung WYACR-W Series Smart AC Input Reactor, Wall Mounting

Three-phase AC input reactor for inverters, wall-mounting type, 18.5 kW to 90 kW, 4% impedance.

Key features

Improves power factor and suppresses input harmonics caused by inverters
Individual terminal blocks with safety covers
Class 180 (H) insulation system
For 200-240 V and 380-480 V inverter inputs
1.6x overload for 1 min

Specifications

Phase	3-phase
Insulation class	H
Cooling	Natural (AN)
Temperature rise	120 K
Overload capability	1.6x rated current for 1 min, once per hour
Pollution degree	PD3
Protection	IP00
Operating temperature & humidity	-20 to +40 C, 0-80% RH (non-condensing)
Storage temperature & humidity	-20 to +50 C, 0-80% RH (non-condensing)
Dielectric withstand	3.0 kVAC for 1 min (terminal to body)
Insulation resistance	Min. 100 MOhm at 500 VDC
Standards	IEC 61558-1, IEC 61558-2-20

WYACR2-18.5W		Rated voltage: 200-240V AC \| Inverter capacity: 18.5 kW \| Rated current: 100 A \| Inductance: 0.135 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 219 x 169 x 197 mm \| Weight: 11 kg
WYACR2-22W		Rated voltage: 200-240V AC \| Inverter capacity: 22 kW \| Rated current: 116 A \| Inductance: 0.116 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 219 x 169 x 197 mm \| Weight: 12 kg
WYACR2-30W		Rated voltage: 200-240V AC \| Inverter capacity: 30 kW \| Rated current: 134 A \| Inductance: 0.101 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 192 mm \| Weight: 17 kg
WYACR2-37W		Rated voltage: 200-240V AC \| Inverter capacity: 37 kW \| Rated current: 164 A \| Inductance: 0.082 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 207 mm \| Weight: 18 kg
WYACR2-45W		Rated voltage: 200-240V AC \| Inverter capacity: 45 kW \| Rated current: 200 A \| Inductance: 0.067 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 207 mm \| Weight: 19 kg
WYACR4-18.5W		Rated voltage: 380-480V AC \| Inverter capacity: 18.5 kW \| Rated current: 50 A \| Inductance: 0.490 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 219 x 169 x 207 mm \| Weight: 11 kg
WYACR4-22W		Rated voltage: 380-480V AC \| Inverter capacity: 22 kW \| Rated current: 58 A \| Inductance: 0.422 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 219 x 169 x 207 mm \| Weight: 12 kg
WYACR4-30W		Rated voltage: 380-480V AC \| Inverter capacity: 30 kW \| Rated current: 67 A \| Inductance: 0.366 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 197 mm \| Weight: 17 kg
WYACR4-37W		Rated voltage: 380-480V AC \| Inverter capacity: 37 kW \| Rated current: 82 A \| Inductance: 0.299 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 217 mm \| Weight: 18 kg
WYACR4-45W		Rated voltage: 380-480V AC \| Inverter capacity: 45 kW \| Rated current: 100 A \| Inductance: 0.245 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 217 mm \| Weight: 19 kg
WYACR4-55W		Rated voltage: 380-480V AC \| Inverter capacity: 55 kW \| Rated current: 121 A \| Inductance: 0.203 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 235 mm \| Weight: 28 kg
WYACR4-75W		Rated voltage: 380-480V AC \| Inverter capacity: 75 kW \| Rated current: 167 A \| Inductance: 0.147 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 256 mm \| Weight: 29 kg
WYACR4-90W		Rated voltage: 380-480V AC \| Inverter capacity: 90 kW \| Rated current: 201 A \| Inductance: 0.122 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 256 mm \| Weight: 30 kg

ReactorsWoonyoung

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYACR-W Series Smart AC Input Reactor, Wall Mounting

Brand Woonyoung·Reactors

Available part numbers (13)

WYACR2-18.5W, WYACR2-22W, WYACR2-30W, WYACR2-37W, WYACR2-45W, WYACR4-18.5W, WYACR4-22W, WYACR4-30W, WYACR4-37W, WYACR4-45W + 3 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WYACR2-18.5W	Rated voltage: 200-240V AC \| Inverter capacity: 18.5 kW \| Rated current: 100 A \| Inductance: 0.135 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 219 x 169 x 197 mm \| Weight: 11 kg
	WYACR2-22W	Rated voltage: 200-240V AC \| Inverter capacity: 22 kW \| Rated current: 116 A \| Inductance: 0.116 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 219 x 169 x 197 mm \| Weight: 12 kg
	WYACR2-30W	Rated voltage: 200-240V AC \| Inverter capacity: 30 kW \| Rated current: 134 A \| Inductance: 0.101 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 192 mm \| Weight: 17 kg
	WYACR2-37W	Rated voltage: 200-240V AC \| Inverter capacity: 37 kW \| Rated current: 164 A \| Inductance: 0.082 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 207 mm \| Weight: 18 kg
	WYACR2-45W	Rated voltage: 200-240V AC \| Inverter capacity: 45 kW \| Rated current: 200 A \| Inductance: 0.067 mH \| Impedance voltage: 4% at 220VAC \| Dimensions W x H x D: 258 x 184 x 207 mm \| Weight: 19 kg
	WYACR4-18.5W	Rated voltage: 380-480V AC \| Inverter capacity: 18.5 kW \| Rated current: 50 A \| Inductance: 0.490 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 219 x 169 x 207 mm \| Weight: 11 kg
	WYACR4-22W	Rated voltage: 380-480V AC \| Inverter capacity: 22 kW \| Rated current: 58 A \| Inductance: 0.422 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 219 x 169 x 207 mm \| Weight: 12 kg
	WYACR4-30W	Rated voltage: 380-480V AC \| Inverter capacity: 30 kW \| Rated current: 67 A \| Inductance: 0.366 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 197 mm \| Weight: 17 kg
	WYACR4-37W	Rated voltage: 380-480V AC \| Inverter capacity: 37 kW \| Rated current: 82 A \| Inductance: 0.299 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 217 mm \| Weight: 18 kg
	WYACR4-45W	Rated voltage: 380-480V AC \| Inverter capacity: 45 kW \| Rated current: 100 A \| Inductance: 0.245 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 258 x 184 x 217 mm \| Weight: 19 kg
	WYACR4-55W	Rated voltage: 380-480V AC \| Inverter capacity: 55 kW \| Rated current: 121 A \| Inductance: 0.203 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 235 mm \| Weight: 28 kg
	WYACR4-75W	Rated voltage: 380-480V AC \| Inverter capacity: 75 kW \| Rated current: 167 A \| Inductance: 0.147 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 256 mm \| Weight: 29 kg
	WYACR4-90W	Rated voltage: 380-480V AC \| Inverter capacity: 90 kW \| Rated current: 201 A \| Inductance: 0.122 mH \| Impedance voltage: 4% at 400VAC \| Dimensions W x H x D: 299 x 222 x 256 mm \| Weight: 30 kg
