Woonyoung WYACR4 Series AC Input Reactor, 380/440 V

Woonyoung WYACR4 Series AC Input Reactor, 380/440 V

Three-phase AC input reactor for inverters on 380/440 V supplies, 0.75 kW to 375 kW, impedance voltage 8.5 VAC.

Key features

  • Suppresses inverter input harmonics and improves power factor
  • Ratings from 0.75 kW to 375 kW

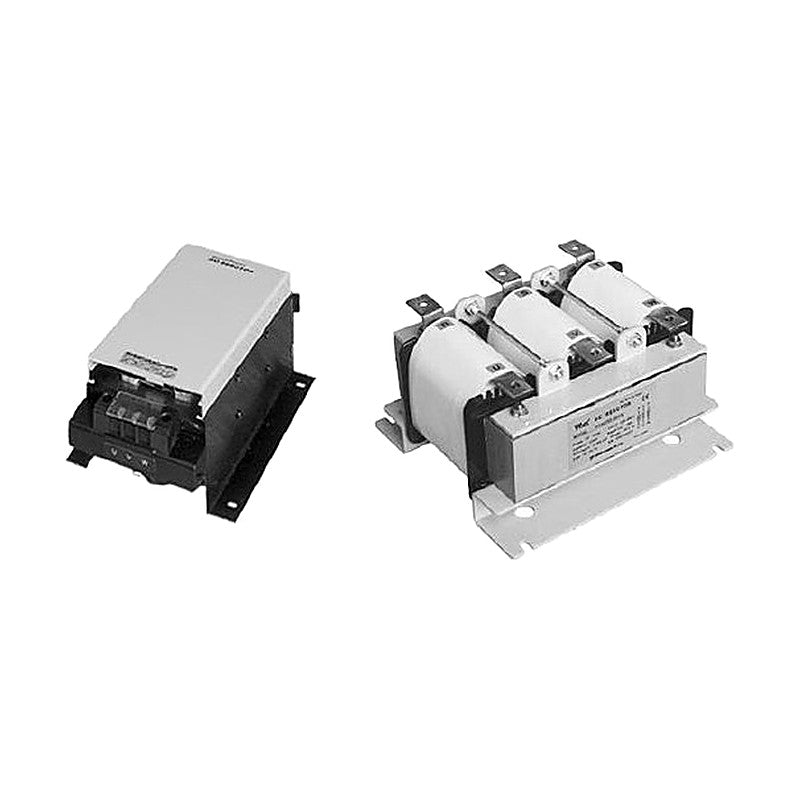

  • Compact A type up to 15 kW, B type above
  • IP20, sound level below 65 dB

Specifications

Dielectric withstand AC 3000 V / 1 min
Insulation resistance DC 500 V / 100 MOhm
Protection IP20
Sound level Less than 65 dB
Operating temperature -20 to +40 C
Rating 3-phase 380/440 V, 50/60 Hz
Impedance voltage 8.5 VAC
WYACR4-0.75 Inverter capacity: 0.75 kW | Rated current: 1.7 A | Inductance: 13.270 mH | Dimensions W x D x H: 97 x 185 x 105 mm | Weight: 2.3 kg | Construction type: A
WYACR4-1.5 Inverter capacity: 1.5 kW | Rated current: 3.4 A | Inductance: 6.635 mH | Dimensions W x D x H: 97 x 185 x 105 mm | Weight: 2.4 kg | Construction type: A
WYACR4-2.2 Inverter capacity: 2.2 kW | Rated current: 7.5 A | Inductance: 3.008 mH | Dimensions W x D x H: 97 x 185 x 105 mm | Weight: 2.5 kg | Construction type: A
WYACR4-3.7 Inverter capacity: 3.7 kW | Rated current: 10 A | Inductance: 2.256 mH | Dimensions W x D x H: 118 x 195 x 105 mm | Weight: 3.8 kg | Construction type: A
WYACR4-5.5 Inverter capacity: 5.5 kW | Rated current: 15 A | Inductance: 1.504 mH | Dimensions W x D x H: 118 x 195 x 105 mm | Weight: 4.6 kg | Construction type: A
WYACR4-7.5 Inverter capacity: 7.5 kW | Rated current: 20 A | Inductance: 1.128 mH | Dimensions W x D x H: 118 x 195 x 105 mm | Weight: 4.7 kg | Construction type: A
WYACR4-11 Inverter capacity: 11 kW | Rated current: 30 A | Inductance: 0.752 mH | Dimensions W x D x H: 135 x 330 x 105 mm | Weight: 8.3 kg | Construction type: A
WYACR4-15 Inverter capacity: 15 kW | Rated current: 38 A | Inductance: 0.594 mH | Dimensions W x D x H: 135 x 330 x 105 mm | Weight: 8.4 kg | Construction type: A
WYACR4-18.5 Inverter capacity: 18.5 kW | Rated current: 50 A | Inductance: 0.451 mH | Dimensions W x D x H: 194 x 189 x 151 mm | Weight: 14 kg | Construction type: B
WYACR4-22 Inverter capacity: 22 kW | Rated current: 58 A | Inductance: 0.389 mH | Dimensions W x D x H: 194 x 189 x 151 mm | Weight: 15 kg | Construction type: B
WYACR4-30 Inverter capacity: 30 kW | Rated current: 67 A | Inductance: 0.337 mH | Dimensions W x D x H: 232 x 219 x 146 mm | Weight: 20 kg | Construction type: B
WYACR4-37 Inverter capacity: 37 kW | Rated current: 82 A | Inductance: 0.275 mH | Dimensions W x D x H: 232 x 219 x 146 mm | Weight: 21 kg | Construction type: B
WYACR4-45 Inverter capacity: 45 kW | Rated current: 100 A | Inductance: 0.226 mH | Dimensions W x D x H: 232 x 219 x 146 mm | Weight: 23 kg | Construction type: B
WYACR4-55 Inverter capacity: 55 kW | Rated current: 121 A | Inductance: 0.186 mH | Dimensions W x D x H: 256 x 249 x 165 mm | Weight: 33 kg | Construction type: B
WYACR4-75 Inverter capacity: 75 kW | Rated current: 167 A | Inductance: 0.135 mH | Dimensions W x D x H: 256 x 249 x 165 mm | Weight: 35 kg | Construction type: B
WYACR4-90 Inverter capacity: 90 kW | Rated current: 201 A | Inductance: 0.112 mH | Dimensions W x D x H: 256 x 249 x 205 mm | Weight: 45 kg | Construction type: B
WYACR4-110 Inverter capacity: 110 kW | Rated current: 245 A | Inductance: 0.092 mH | Dimensions W x D x H: 300 x 249 x 206 mm | Weight: 50 kg | Construction type: B
WYACR4-132 Inverter capacity: 132 kW | Rated current: 290 A | Inductance: 0.078 mH | Dimensions W x D x H: 300 x 249 x 206 mm | Weight: 55 kg | Construction type: B
WYACR4-160 Inverter capacity: 160 kW | Rated current: 357 A | Inductance: 0.063 mH | Dimensions W x D x H: 300 x 249 x 216 mm | Weight: 60 kg | Construction type: B
WYACR4-185 Inverter capacity: 185 kW | Rated current: 420 A | Inductance: 0.054 mH | Dimensions W x D x H: 335 x 262 x 238 mm | Weight: 62 kg | Construction type: B
WYACR4-220 Inverter capacity: 220 kW | Rated current: 500 A | Inductance: 0.045 mH | Dimensions W x D x H: 335 x 262 x 238 mm | Weight: 65 kg | Construction type: B
WYACR4-250 Inverter capacity: 250 kW | Rated current: 560 A | Inductance: 0.040 mH | Dimensions W x D x H: 335 x 262 x 258 mm | Weight: 70 kg | Construction type: B
WYACR4-280 Inverter capacity: 280 kW | Rated current: 630 A | Inductance: 0.036 mH | Dimensions W x D x H: 365 x 297 x 224 mm | Weight: 80 kg | Construction type: B
WYACR4-315 Inverter capacity: 315 kW | Rated current: 710 A | Inductance: 0.032 mH | Dimensions W x D x H: 365 x 297 x 224 mm | Weight: 90 kg | Construction type: B
WYACR4-350 Inverter capacity: 350 kW | Rated current: 800 A | Inductance: 0.028 mH | Dimensions W x D x H: 365 x 297 x 229 mm | Weight: 100 kg | Construction type: B
WYACR4-375 Inverter capacity: 375 kW | Rated current: 840 A | Inductance: 0.027 mH | Dimensions W x D x H: 365 x 298 x 259 mm | Weight: 110 kg | Construction type: B
