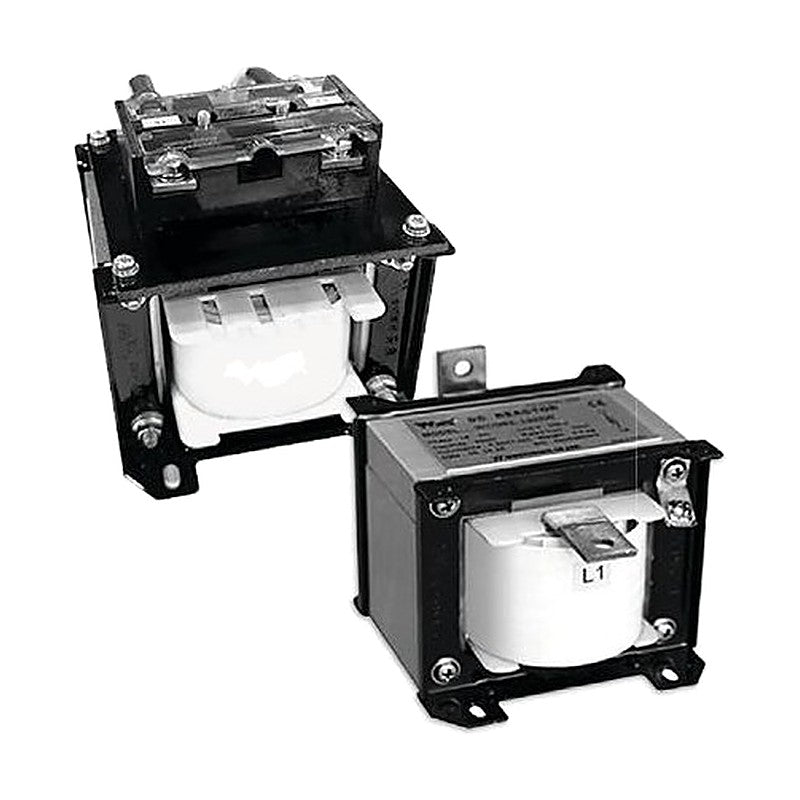

Woonyoung WYDCL4 Series DC Reactor (DC Choke), 380/440 V

Woonyoung WYDCL4 Series DC Reactor (DC Choke), 380/440 V

DC-link reactor (DC choke) for 380/440 V inverters from 0.75 kW to 220 kW, impedance voltage 5.5 VAC.

Key features

  • Installed in the inverter DC link to suppress harmonics
  • Ratings from 0.75 kW to 220 kW
  • A type up to 7.5 kW, B type above
  • IP20, sound level below 65 dB

Specifications

Dielectric withstand AC 3000 V / 1 min
Insulation resistance 100 MOhm or more at DC 500 V
Protection IP20
Sound level Less than 65 dB
Operating temperature -20 to +40 C
Rating DC 380/440 V
Impedance voltage 5.5 VAC
WYDCL4-0.75 Inverter capacity: 0.75 kW | Rated current: 1.7 A | Dimensions W x D x H: 80 x 120 x 97 mm | Weight: 1.5 kg | Construction type: A
WYDCL4-1.5 Inverter capacity: 1.5 kW | Rated current: 3.4 A | Dimensions W x D x H: 80 x 120 x 97 mm | Weight: 2.2 kg | Construction type: A
WYDCL4-2.2 Inverter capacity: 2.2 kW | Rated current: 7.5 A | Dimensions W x D x H: 89 x 120 x 105 mm | Weight: 3.1 kg | Construction type: A
WYDCL4-3.7 Inverter capacity: 3.7 kW | Rated current: 10 A | Dimensions W x D x H: 89 x 120 x 105 mm | Weight: 4.2 kg | Construction type: A
WYDCL4-5.5 Inverter capacity: 5.5 kW | Rated current: 15 A | Dimensions W x D x H: 99 x 135 x 115 mm | Weight: 5.9 kg | Construction type: A
WYDCL4-7.5 Inverter capacity: 7.5 kW | Rated current: 20 A | Dimensions W x D x H: 111 x 150 x 121 mm | Weight: 7.2 kg | Construction type: A
WYDCL4-11 Inverter capacity: 11 kW | Rated current: 30 A | Dimensions W x D x H: 120 x 157 x 130 mm | Weight: 9 kg | Construction type: B
WYDCL4-15 Inverter capacity: 15 kW | Rated current: 38 A | Dimensions W x D x H: 140 x 167 x 146 mm | Weight: 11 kg | Construction type: B
WYDCL4-18.5 Inverter capacity: 18.5 kW | Rated current: 50 A | Dimensions W x D x H: 140 x 167 x 146 mm | Weight: 13 kg | Construction type: B
WYDCL4-22 Inverter capacity: 22 kW | Rated current: 58 A | Dimensions W x D x H: 140 x 167 x 146 mm | Weight: 14 kg | Construction type: B
WYDCL4-30 Inverter capacity: 30 kW | Rated current: 67 A | Dimensions W x D x H: 161 x 172 x 166 mm | Weight: 18 kg | Construction type: B
WYDCL4-37 Inverter capacity: 37 kW | Rated current: 82 A | Dimensions W x D x H: 161 x 172 x 166 mm | Weight: 18 kg | Construction type: B
WYDCL4-45 Inverter capacity: 45 kW | Rated current: 100 A | Dimensions W x D x H: 184 x 190 x 188 mm | Weight: 19 kg | Construction type: B
WYDCL4-55 Inverter capacity: 55 kW | Rated current: 121 A | Dimensions W x D x H: 184 x 190 x 188 mm | Weight: 22 kg | Construction type: B
WYDCL4-75 Inverter capacity: 75 kW | Rated current: 167 A | Dimensions W x D x H: 184 x 190 x 188 mm | Weight: 25 kg | Construction type: B
WYDCL4-90 Inverter capacity: 90 kW | Rated current: 201 A | Dimensions W x D x H: 184 x 190 x 188 mm | Weight: 28 kg | Construction type: B
WYDCL4-110 Inverter capacity: 110 kW | Rated current: 245 A | Dimensions W x D x H: 184 x 190 x 188 mm | Weight: 32 kg | Construction type: B
WYDCL4-132 Inverter capacity: 132 kW | Rated current: 290 A | Dimensions W x D x H: 219 x 266 x 255 mm | Weight: 34 kg | Construction type: B
WYDCL4-160 Inverter capacity: 160 kW | Rated current: 357 A | Dimensions W x D x H: 219 x 266 x 255 mm | Weight: 40 kg | Construction type: B
WYDCL4-185 Inverter capacity: 185 kW | Rated current: 420 A | Dimensions W x D x H: 219 x 266 x 255 mm | Weight: 57 kg | Construction type: B
WYDCL4-220 Inverter capacity: 220 kW | Rated current: 500 A | Dimensions W x D x H: 243 x 296 x 283 mm | Weight: 68 kg | Construction type: B
