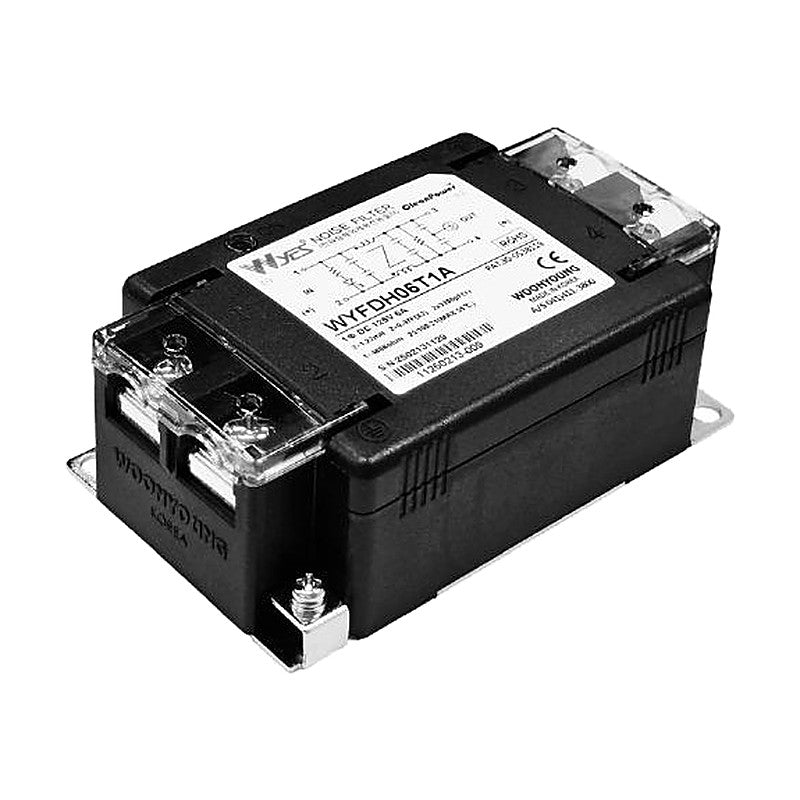

Woonyoung WYFDH-T1A Series DC Noise Filter, 60-125 VDC

General-purpose DC power-line noise filter for 60-125 VDC circuits, rated 6 A to 30 A.

Key features

Filters noise on DC power lines
Plastic case with terminal block
DIN-rail version available (D suffix)
Rated 6 A to 30 A
CE marked; RoHS compliant

Specifications

Rated voltage	60-125 VDC
Insulation resistance	100 MOhm at 500 VDC
Leakage current	<= 0.8 mA (as printed)
Operating temperature	-25 to +100 C (derating curve type 1)
Mounting	Screw; DIN rail with (D) suffix
Safety standards	CE

WYFDH06T1A		Rated current: 6 A \| Safety standards: CE
WYFDH10T1A		Rated current: 10 A \| Safety standards: CE
WYFDH15T1A		Rated current: 15 A \| Safety standards: CE
WYFDH20T1A		Rated current: 20 A \| Safety standards: CE
WYFDH30T1A		Rated current: 30 A \| Safety standards: CE

Noise FiltersWoonyoung

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFDH-T1A Series DC Noise Filter, 60-125 VDC

Brand Woonyoung·Noise Filters

Available part numbers (5)

WYFDH06T1A, WYFDH10T1A, WYFDH15T1A, WYFDH20T1A, WYFDH30T1A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WYFDH06T1A	Rated current: 6 A \| Safety standards: CE
	WYFDH10T1A	Rated current: 10 A \| Safety standards: CE
	WYFDH15T1A	Rated current: 15 A \| Safety standards: CE
	WYFDH20T1A	Rated current: 20 A \| Safety standards: CE
	WYFDH30T1A	Rated current: 30 A \| Safety standards: CE

Need a different model, or a part not listed here? Send us your parts list →
