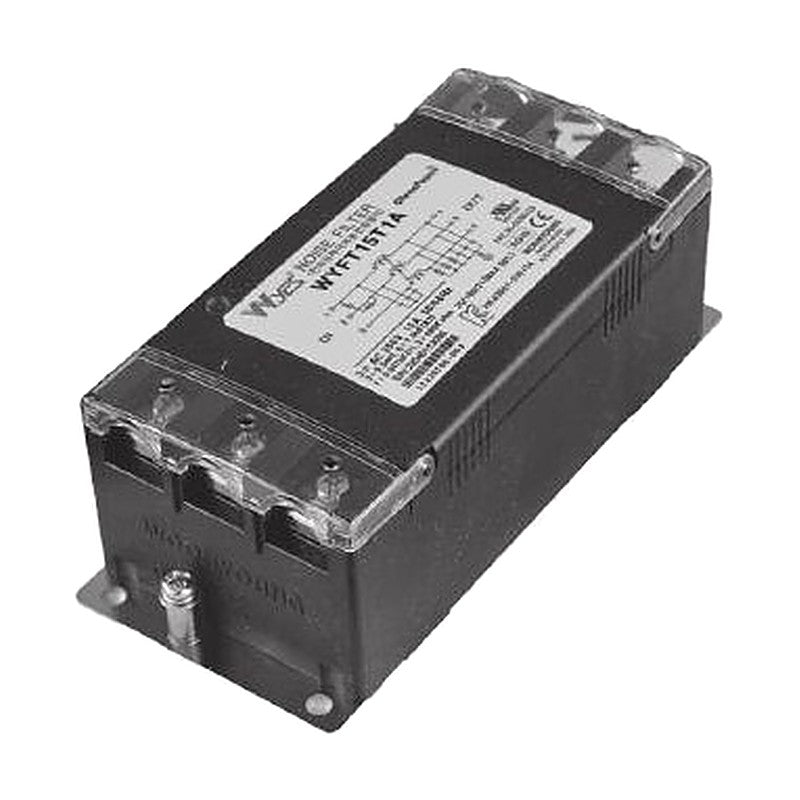

Woonyoung WYFT-T1A/T2A Series Three-Phase General-Purpose Noise Filter, 250 VAC

Woonyoung WYFT-T1A/T2A Series Three-Phase General-Purpose Noise Filter, 250 VAC

General-purpose three-phase noise filter for 250 VAC systems from 5 A to 1200 A, in general (A) and inverter-output (C) versions.

Key features

  • Low leakage current
  • General (A) and inverter output (C) versions
  • Plastic case 5-30 A (DIN-rail option, UL recognized); steel case or bus-bar type 40-1200 A
  • Rated 5 A to 1200 A at 250 VAC
  • RoHS compliant

Specifications

Phase Three phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm (300 MOhm for 500 A)
Leakage current <= 2.5 mA (5-30 A); 9 mA (40-1200 A)
Operating temperature -25 to +100 C (derating curve type 2)
Operating humidity 35-85% RH
WYFT05T1C Rated current: 5 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT10T1A Rated current: 10 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT10T1C Rated current: 10 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT15T1C Rated current: 15 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT20T1A Rated current: 20 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT20T1C Rated current: 20 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT30T1A Rated current: 30 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT30T1C Rated current: 30 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT40T2A Rated current: 40 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT40T2C Rated current: 40 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT50T2A Rated current: 50 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT50T2C Rated current: 50 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT60T2A Rated current: 60 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT60T2C Rated current: 60 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT80T2A Rated current: 80 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT80T2C Rated current: 80 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT100T2A Rated current: 100 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT100T2C Rated current: 100 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT120T2A Rated current: 120 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT120T2C Rated current: 120 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT150T2A Rated current: 150 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT150T2C Rated current: 150 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT200T2A Rated current: 200 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT200T2C Rated current: 200 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT250T2A Rated current: 250 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT250T2C Rated current: 250 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT300T2A Rated current: 300 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT300T2C Rated current: 300 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT400T2A Rated current: 400 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT400T2C Rated current: 400 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT500T2A Rated current: 500 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT500T2C Rated current: 500 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT600T2A Rated current: 600 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT600T2C Rated current: 600 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT800T2A Rated current: 800 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT800T2C Rated current: 800 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT1000T2A Rated current: 1000 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT1000T2C Rated current: 1000 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT1200T2A Rated current: 1200 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT1200T2C Rated current: 1200 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
Noise FiltersWoonyoung
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFT-T1A/T2A Series Three-Phase General-Purpose Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (40)

WYFT05T1C, WYFT10T1A, WYFT10T1C, WYFT15T1C, WYFT20T1A, WYFT20T1C, WYFT30T1A, WYFT30T1C, WYFT40T2A, WYFT40T2C + 30 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFT05T1CRated current: 5 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT10T1ARated current: 10 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT10T1CRated current: 10 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT15T1CRated current: 15 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT20T1ARated current: 20 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT20T1CRated current: 20 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT30T1ARated current: 30 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFT30T1CRated current: 30 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFT40T2ARated current: 40 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT40T2CRated current: 40 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT50T2ARated current: 50 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT50T2CRated current: 50 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT60T2ARated current: 60 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT60T2CRated current: 60 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT80T2ARated current: 80 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT80T2CRated current: 80 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT100T2ARated current: 100 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT100T2CRated current: 100 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT120T2ARated current: 120 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT120T2CRated current: 120 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT150T2ARated current: 150 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT150T2CRated current: 150 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT200T2ARated current: 200 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT200T2CRated current: 200 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT250T2ARated current: 250 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFT250T2CRated current: 250 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT300T2ARated current: 300 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT300T2CRated current: 300 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT400T2ARated current: 400 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT400T2CRated current: 400 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT500T2ARated current: 500 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT500T2CRated current: 500 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT600T2ARated current: 600 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT600T2CRated current: 600 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT800T2ARated current: 800 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT800T2CRated current: 800 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT1000T2ARated current: 1000 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT1000T2CRated current: 1000 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFT1200T2ARated current: 1200 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFT1200T2CRated current: 1200 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
