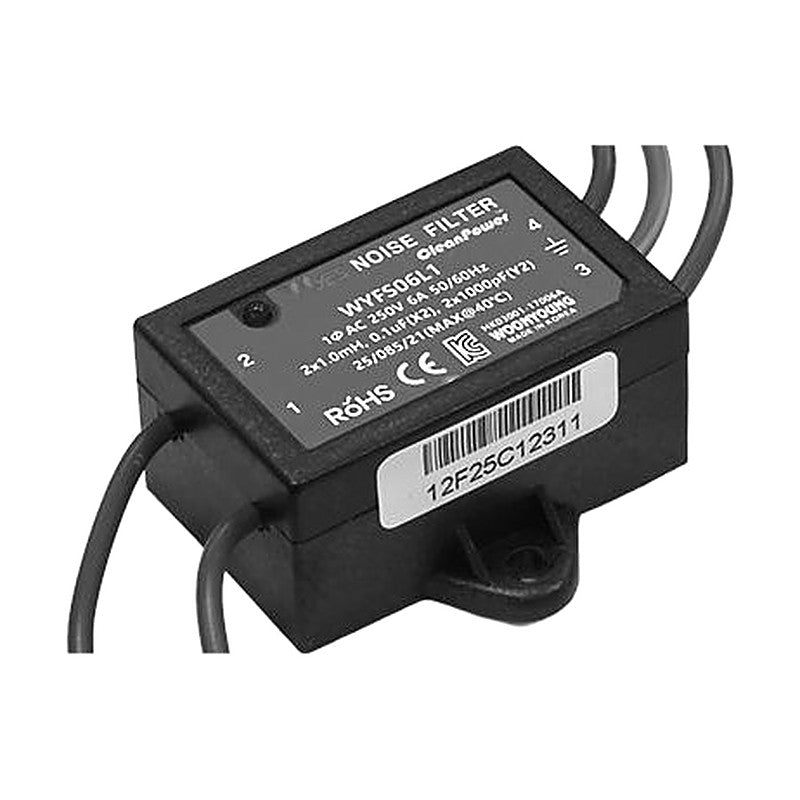

Woonyoung WYFS-L1 Series Single-Phase Lead-Wire Noise Filter, 250 VAC

Standard single-phase noise filter with lead-wire connections, rated 3 A and 6 A.

Key features

Lead-wire (cable) connection
Low leakage current
Rated 3 A and 6 A at 250 VAC

Specifications

Phase	Single phase
Rated voltage	250 VAC
Frequency	50/60 Hz
Dielectric withstand	1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance	500 MOhm at 500 VDC
Leakage current	<= 0.3 mA at 250 VAC
Operating temperature	-25 to +100 C (derating curve type 1)
Weight	60 g
Connection	Lead wire
Safety standards	KC, CE

WYFS03L1		Rated current: 3 A \| Safety standards: KC, CE
WYFS06L1		Rated current: 6 A \| Safety standards: KC, CE

Noise FiltersWoonyoung

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-L1 Series Single-Phase Lead-Wire Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (2)

WYFS03L1, WYFS06L1

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
