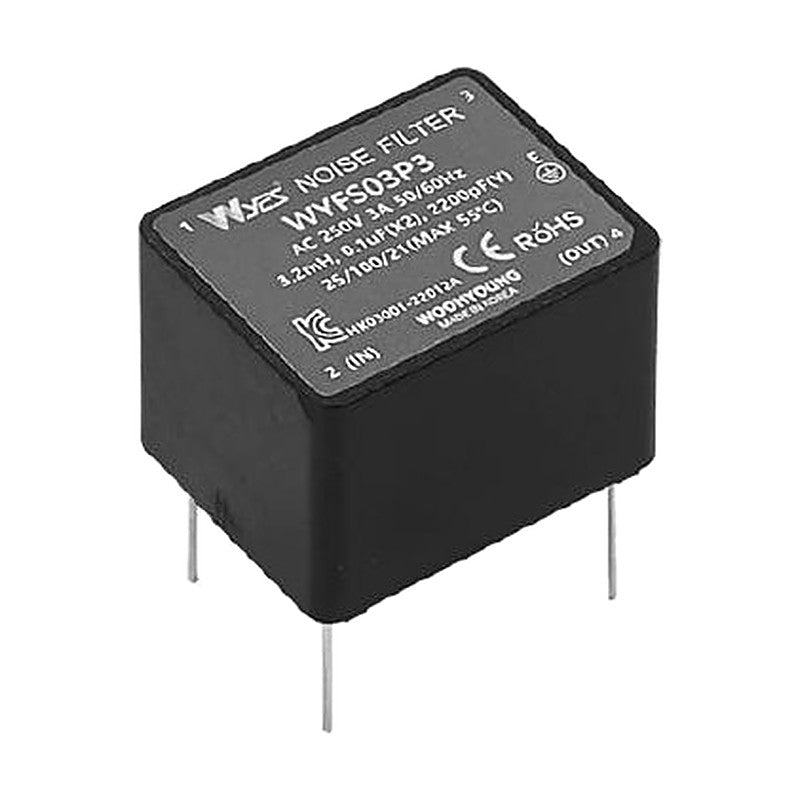

Woonyoung WYFS-P3 Series Single-Phase PCB-Mount Noise Filter, 250 VAC

Woonyoung WYFS-P3 Series Single-Phase PCB-Mount Noise Filter, 250 VAC

Compact single-phase PCB-mount noise filter, rated 1 A to 6 A.

Key features

  • PCB insertion type
  • Small size and light weight (20 g)
  • Low leakage current
  • Rated 1 A to 6 A at 250 VAC

Specifications

Phase Single phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm at 500 VDC
Leakage current <= 0.7 mA at 250 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Operating humidity 35-85% RH
Weight 20 g
Mounting PCB
Safety standards KC, CE
WYFS01P3 Rated current: 1 A | Safety standards: KC, CE
WYFS02P3 Rated current: 2 A | Safety standards: KC, CE
WYFS03P3 Rated current: 3 A | Safety standards: KC, CE
WYFS06P3 Rated current: 6 A | Safety standards: KC, CE
Noise FiltersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-P3 Series Single-Phase PCB-Mount Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (4)

WYFS01P3, WYFS02P3, WYFS03P3, WYFS06P3

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFS01P3Rated current: 1 A | Safety standards: KC, CE
WYFS02P3Rated current: 2 A | Safety standards: KC, CE
WYFS03P3Rated current: 3 A | Safety standards: KC, CE
WYFS06P3Rated current: 6 A | Safety standards: KC, CE
