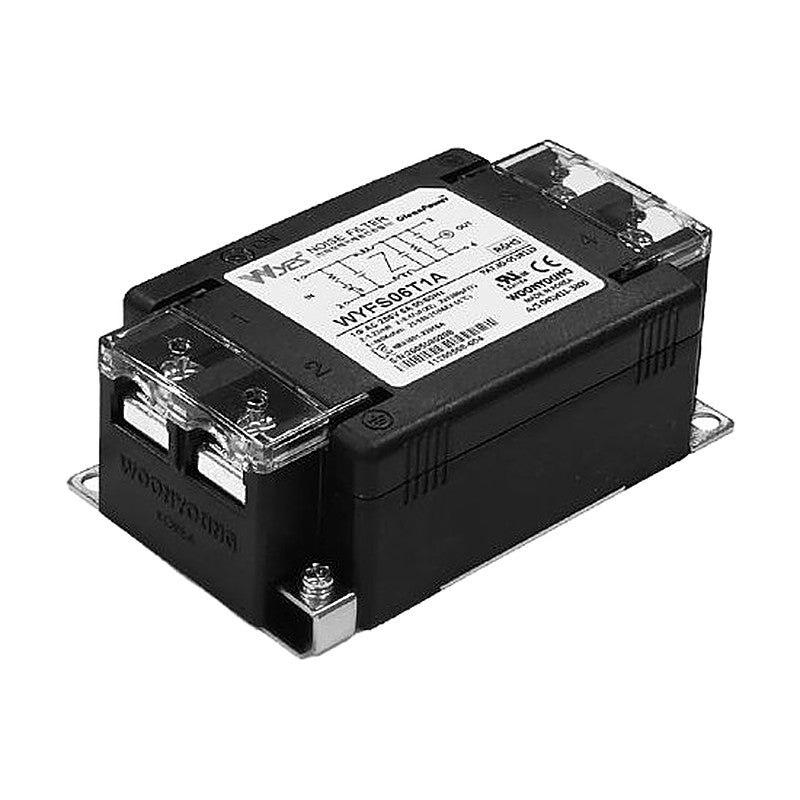

Woonyoung WYFS-T1A Series Single-Phase General-Purpose Noise Filter, 250 VAC

Woonyoung WYFS-T1A Series Single-Phase General-Purpose Noise Filter, 250 VAC

General-purpose single-phase noise filter in a plastic case with low leakage current, rated 6 A to 50 A.

Key features

  • Low leakage current
  • Plastic case with terminal block
  • Screw mounting; DIN-rail version available (D suffix)
  • UL recognized for 6-30 A ratings
  • Rated 6 A to 50 A at 250 VAC

Specifications

Phase Single phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm at 500 VDC
Leakage current <= 1.1 mA (6-30 A); <= 1.5 mA (40-50 A) at 250 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Case Plastic
Mounting Screw; DIN rail with (D) suffix
WYFS06T1A Rated current: 6 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS10T1A Rated current: 10 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS15T1A Rated current: 15 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS20T1A Rated current: 20 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS30T1A Rated current: 30 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS40T1A Rated current: 40 A | Safety standards: KC, CE | Weight: 0.5 kg
WYFS50T1A Rated current: 50 A | Safety standards: KC, CE | Weight: 0.5 kg
Noise FiltersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-T1A Series Single-Phase General-Purpose Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (7)

WYFS06T1A, WYFS10T1A, WYFS15T1A, WYFS20T1A, WYFS30T1A, WYFS40T1A, WYFS50T1A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFS06T1ARated current: 6 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS10T1ARated current: 10 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS15T1ARated current: 15 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS20T1ARated current: 20 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS30T1ARated current: 30 A | Safety standards: KC, CE, cURus | Weight: 0.3 kg
WYFS40T1ARated current: 40 A | Safety standards: KC, CE | Weight: 0.5 kg
WYFS50T1ARated current: 50 A | Safety standards: KC, CE | Weight: 0.5 kg

Need a different model, or a part not listed here? Send us your parts list →
