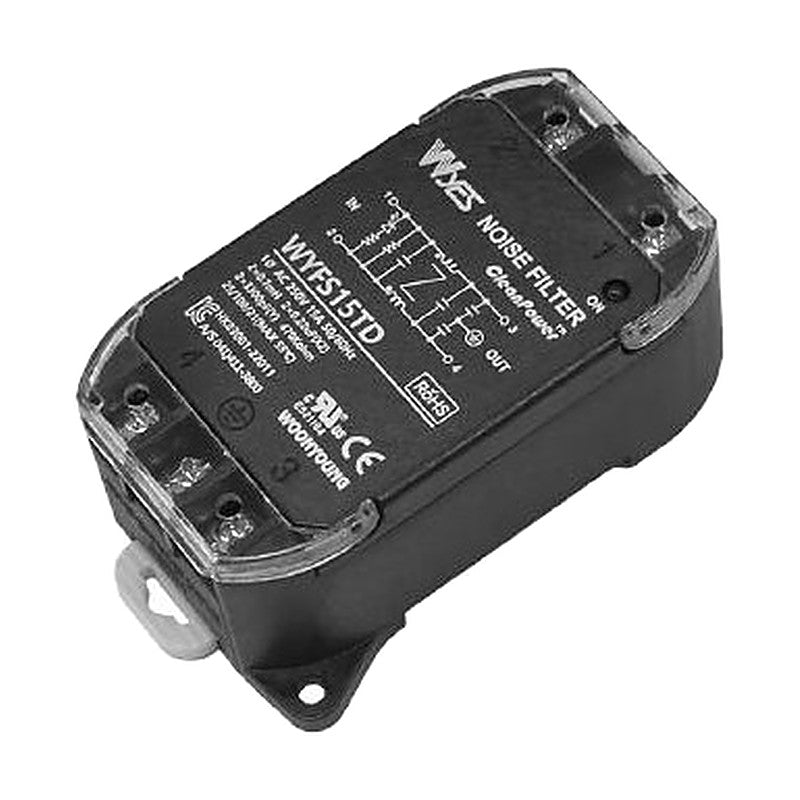

Woonyoung WYFS-TD Series Single-Phase DIN-Rail Terminal Noise Filter, 250 VAC

Woonyoung WYFS-TD Series Single-Phase DIN-Rail Terminal Noise Filter, 250 VAC

Economy single-phase noise filter for DIN-rail mounting with terminal connections, rated 6 A to 20 A.

Key features

  • DIN-rail mounting with terminal block
  • Low leakage current
  • UL recognized; KC and CE marked
  • Rated 6 A to 20 A at 250 VAC

Specifications

Phase Single phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm at 500 VDC
Leakage current <= 1.1 mA at 250 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Weight 0.1 kg
Mounting DIN rail
Safety standards KC, CE, cURus
WYFS06TD Rated current: 6 A | Safety standards: KC, CE, cURus
WYFS10TD Rated current: 10 A | Safety standards: KC, CE, cURus
WYFS15TD Rated current: 15 A | Safety standards: KC, CE, cURus
WYFS20TD Rated current: 20 A | Safety standards: KC, CE, cURus
Noise FiltersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-TD Series Single-Phase DIN-Rail Terminal Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (4)

WYFS06TD, WYFS10TD, WYFS15TD, WYFS20TD

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFS06TDRated current: 6 A | Safety standards: KC, CE, cURus
WYFS10TDRated current: 10 A | Safety standards: KC, CE, cURus
WYFS15TDRated current: 15 A | Safety standards: KC, CE, cURus
WYFS20TDRated current: 20 A | Safety standards: KC, CE, cURus
