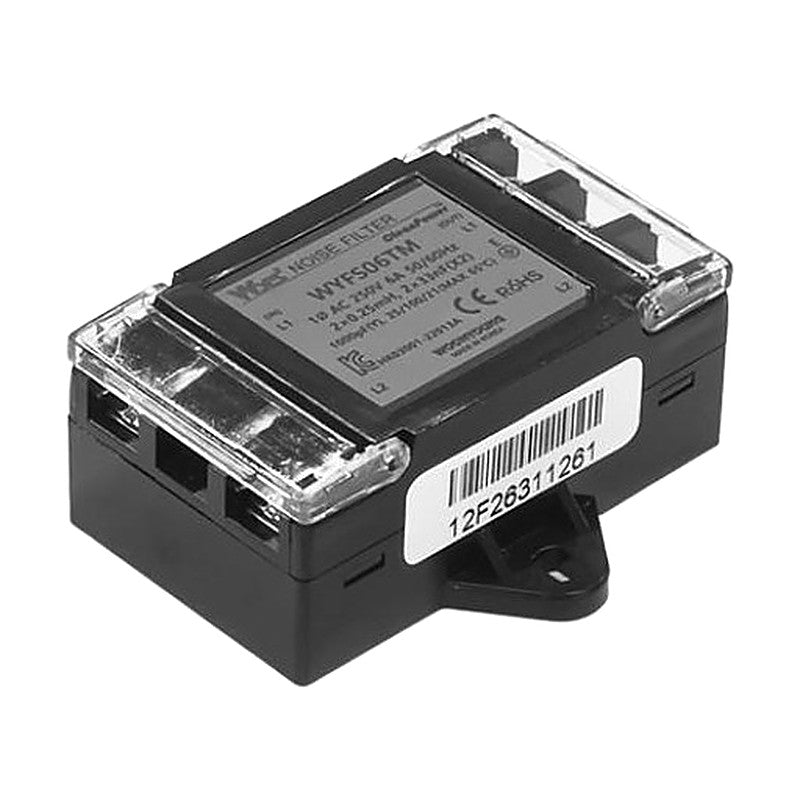

Woonyoung WYFS-TM Series Single-Phase Compact Terminal Noise Filter, 250 VAC

General-purpose compact single-phase noise filter with terminal connections, rated 3 A and 6 A.

Key features

Terminal block connection
Low leakage current
Rated 3 A and 6 A at 250 VAC

Specifications

Phase	Single phase
Rated voltage	250 VAC
Frequency	50/60 Hz
Dielectric withstand	1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance	500 MOhm at 500 VDC
Leakage current	<= 0.3 mA at 250 VAC
Operating temperature	-25 to +85 C (derating curve type 3)
Safety standards	KC, CE

WYFS03TM		Rated current: 3 A \| Safety standards: KC, CE
WYFS06TM		Rated current: 6 A \| Safety standards: KC, CE

Noise FiltersWoonyoung

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-TM Series Single-Phase Compact Terminal Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (2)

WYFS03TM, WYFS06TM

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
