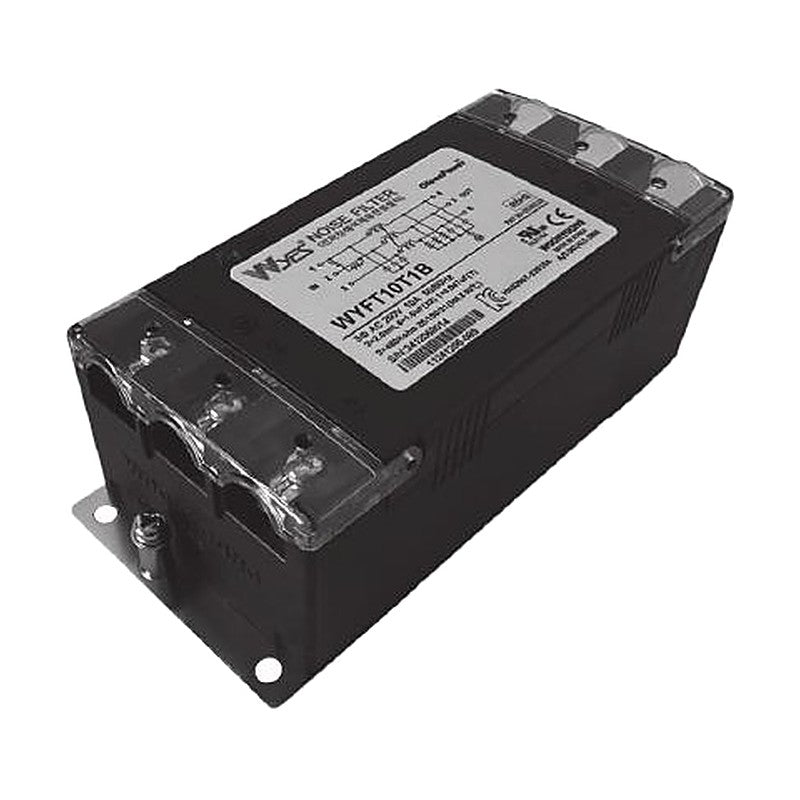

Woonyoung WYFT-T1B/T2B Series Three-Phase High-Quality Noise Filter, 250 VAC

Woonyoung WYFT-T1B/T2B Series Three-Phase High-Quality Noise Filter, 250 VAC

High-quality, low-leakage three-phase noise filter for 250 VAC systems, rated 5 A to 50 A.

Key features

  • Low leakage current (0.8 mA)
  • Plastic case (5-30 A) with DIN-rail option; steel case for 40-50 A
  • Rated 5 A to 50 A at 250 VAC
  • RoHS compliant

Specifications

Phase Three phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm
Leakage current 0.8 mA
Operating temperature -25 to +100 C (derating curve type 2)
Operating humidity 35-85% RH
WYFT05T1B Rated current: 5 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT10T1B Rated current: 10 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT15T1B Rated current: 15 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT20T1B Rated current: 20 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT30T1B Rated current: 30 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT40T2B Rated current: 40 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
WYFT50T2B Rated current: 50 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
Noise FiltersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFT-T1B/T2B Series Three-Phase High-Quality Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (7)

WYFT05T1B, WYFT10T1B, WYFT15T1B, WYFT20T1B, WYFT30T1B, WYFT40T2B, WYFT50T2B

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFT05T1BRated current: 5 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT10T1BRated current: 10 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT15T1BRated current: 15 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT20T1BRated current: 20 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT30T1BRated current: 30 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFT40T2BRated current: 40 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
WYFT50T2BRated current: 50 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
