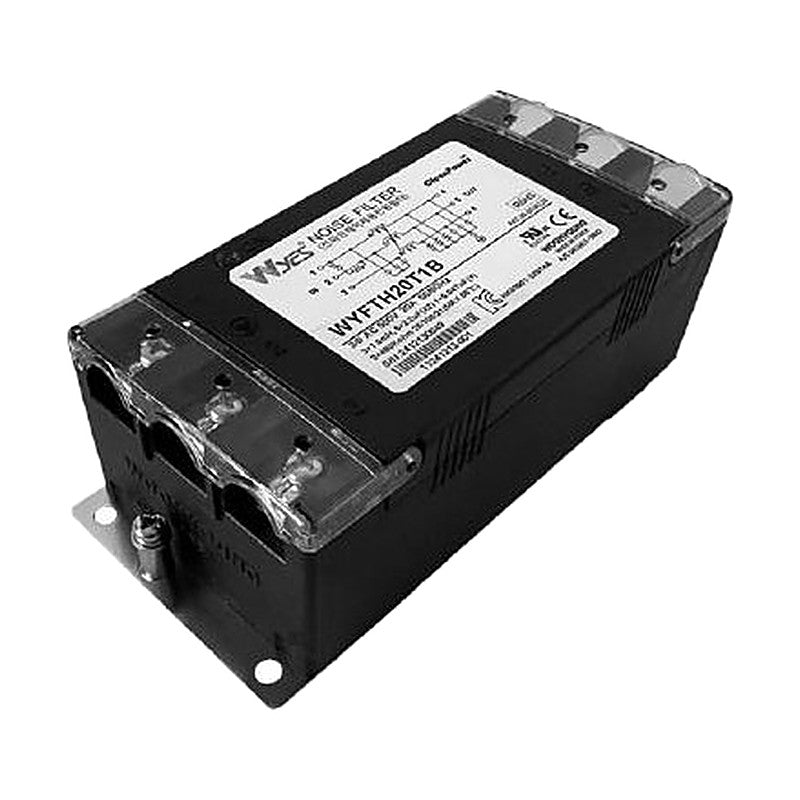

Woonyoung WYFTH-T1B/T2B Series Three-Phase High-Quality Noise Filter, 500 VAC

Woonyoung WYFTH-T1B/T2B Series Three-Phase High-Quality Noise Filter, 500 VAC

High-quality, low-leakage three-phase noise filter for 500 VAC systems, rated 5 A to 50 A.

Key features

  • Low leakage current (1.2 mA)
  • Plastic case (5-30 A) with DIN-rail option; steel case for 40-50 A
  • Rated 5 A to 50 A at 500 VAC
  • RoHS compliant

Specifications

Phase Three phase
Rated voltage 500 VAC
Frequency 50/60 Hz
Insulation resistance 500 MOhm
Leakage current 1.2 mA
Operating temperature -25 to +100 C (derating curve type 2)
Operating humidity 35-85% RH
WYFTH05T1B Rated current: 5 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH10T1B Rated current: 10 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH15T1B Rated current: 15 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH20T1B Rated current: 20 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH30T1B Rated current: 30 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH40T2B Rated current: 40 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
WYFTH50T2B Rated current: 50 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
Noise FiltersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFTH-T1B/T2B Series Three-Phase High-Quality Noise Filter, 500 VAC

Brand Woonyoung·Noise Filters

Available part numbers (7)

WYFTH05T1B, WYFTH10T1B, WYFTH15T1B, WYFTH20T1B, WYFTH30T1B, WYFTH40T2B, WYFTH50T2B

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFTH05T1BRated current: 5 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH10T1BRated current: 10 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH15T1BRated current: 15 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH20T1BRated current: 20 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH30T1BRated current: 30 A | Safety standards: KC, CE | Case: Plastic | Weight: 0.5 kg
WYFTH40T2BRated current: 40 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
WYFTH50T2BRated current: 50 A | Safety standards: CE | Case: Steel | Weight: 1.2 kg
