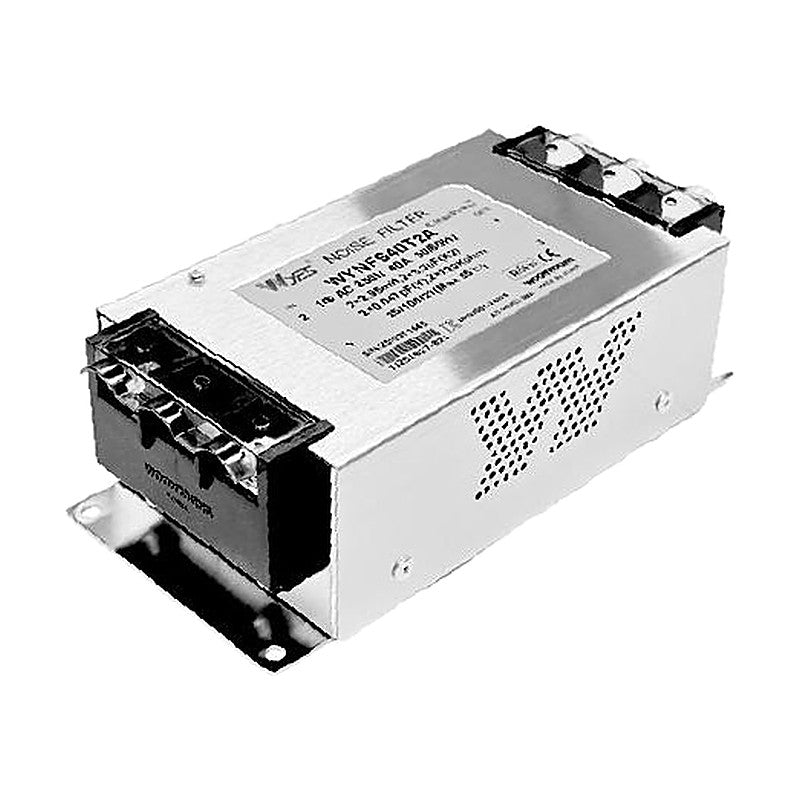

Woonyoung WYNFS-T2A N Series Single-Phase General-Purpose Noise Filter, 250 VAC

Woonyoung WYNFS-T2A N Series Single-Phase General-Purpose Noise Filter, 250 VAC

N-series general-purpose single-phase noise filter in a steel case, rated 40 A to 150 A.

Key features

  • Steel case with terminal block
  • Rated 40 A to 150 A at 250 VAC
  • KC and CE marked
  • RoHS compliant

Specifications

Phase Single phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance 500 MOhm at 500 VDC
Leakage current <= 10.6 mA at 250 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Operating humidity 35-85% RH
Case Steel
Safety standards KC, CE
WYNFS40T2A Rated current: 40 A | Safety standards: KC, CE
WYNFS50T2A Rated current: 50 A | Safety standards: KC, CE
WYNFS60T2A Rated current: 60 A | Safety standards: KC, CE
WYNFS80T2A Rated current: 80 A | Safety standards: KC, CE
WYNFS100T2A Rated current: 100 A | Safety standards: KC, CE
WYNFS120T2A Rated current: 120 A | Safety standards: KC, CE
WYNFS150T2A Rated current: 150 A | Safety standards: KC, CE
Noise FiltersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYNFS-T2A N Series Single-Phase General-Purpose Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (7)

WYNFS40T2A, WYNFS50T2A, WYNFS60T2A, WYNFS80T2A, WYNFS100T2A, WYNFS120T2A, WYNFS150T2A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYNFS40T2ARated current: 40 A | Safety standards: KC, CE
WYNFS50T2ARated current: 50 A | Safety standards: KC, CE
WYNFS60T2ARated current: 60 A | Safety standards: KC, CE
WYNFS80T2ARated current: 80 A | Safety standards: KC, CE
WYNFS100T2ARated current: 100 A | Safety standards: KC, CE
WYNFS120T2ARated current: 120 A | Safety standards: KC, CE
WYNFS150T2ARated current: 150 A | Safety standards: KC, CE
