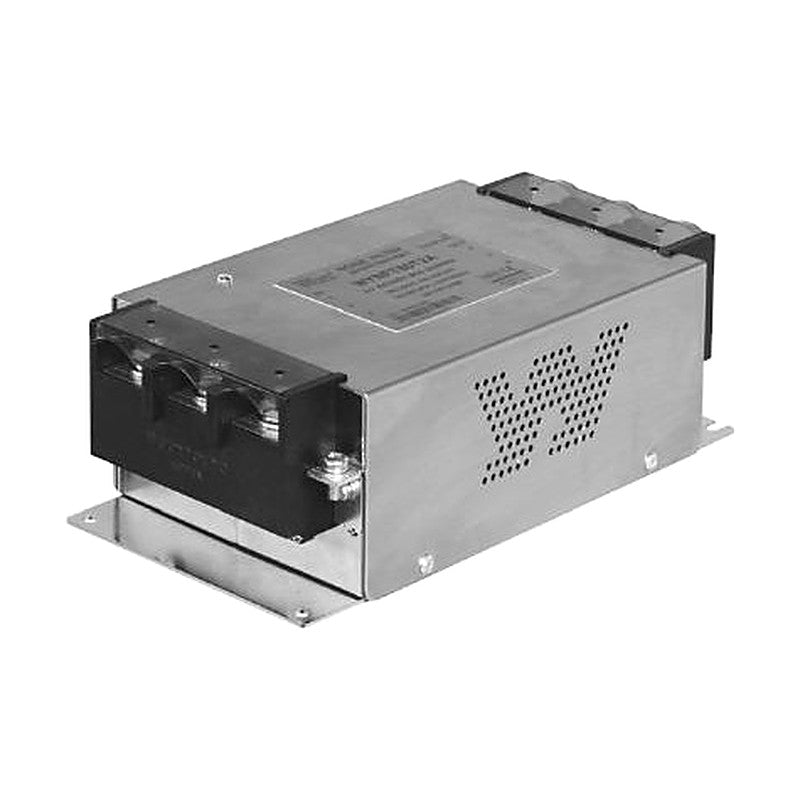

Woonyoung WYNFT-T2B N Series Three-Phase High-Quality Noise Filter, 250 VAC

N-series high-quality three-phase noise filter for 250 VAC lines in 40 A and 50 A ratings.

Key features

High-quality filter design
Steel case
Rated 40 A and 50 A at 250 VAC
RoHS compliant

Specifications

Phase	Three phase
Rated voltage	250 VAC
Frequency	50/60 Hz
Dielectric withstand	1500 VAC or 2250 VDC for 1 min (line-case)
Insulation resistance	100 MOhm at 500 VDC
Leakage current	<= 4.5 mA at 250 VAC
Operating temperature	-25 to +100 C (derating curve type 2)
Operating humidity	35-85% RH
Weight	1.2 kg
Safety standards	KC, CE

WYNFT40T2B		Rated current: 40 A \| Safety standards: KC, CE
WYNFT50T2B		Rated current: 50 A \| Safety standards: KC, CE
