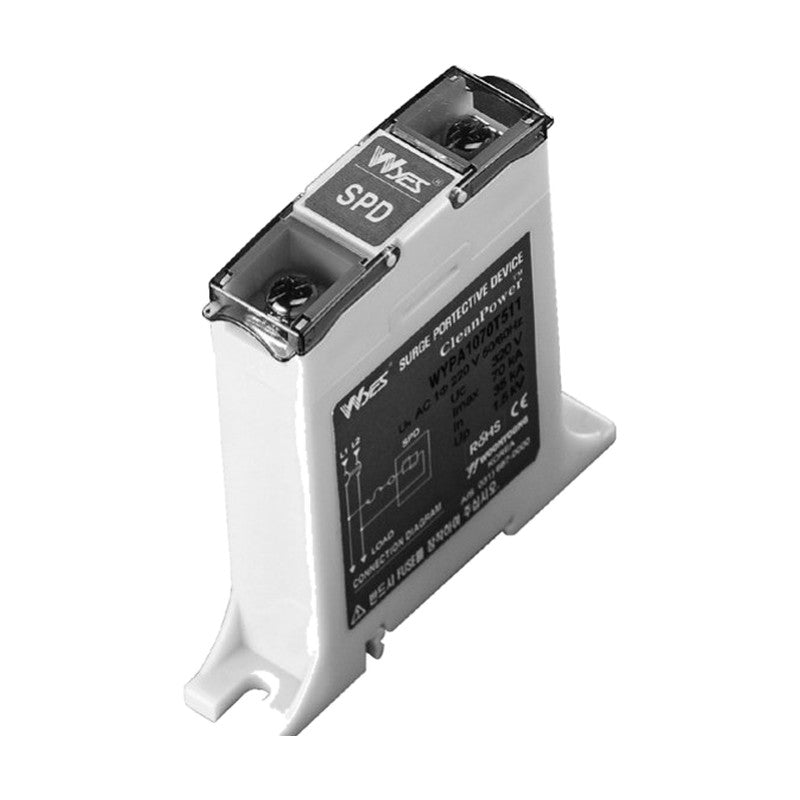

Compact block-type surge protective device for single-phase AC and low-voltage DC lines that clamps transient overvoltages.

Key features

  • Covers DC12V, DC24V and AC110-440V lines
  • Maximum discharge current from 2kA to 70kA
  • Compact block housing with screw terminals
  • Two housing sizes (A and B)

Specifications

Connection Screw terminal
Terminal lug size Type A: max 8 / min 3.5 mm; Type B: max 13 / min 5 mm
WYPA1002T012 Nominal voltage: DC12V | Max. continuous voltage Uc: DC14V | Max. discharge current Imax: 2kA | Nominal discharge current In: 1kA | Voltage protection level Up: < 28V | Dimension type: A | Weight: 0.04 kg
WYPA1003T024 Nominal voltage: DC24V | Max. continuous voltage Uc: DC45V | Max. discharge current Imax: 3kA | Nominal discharge current In: 1.5kA | Voltage protection level Up: < 64V | Dimension type: A | Weight: 0.04 kg
WYPA1010T110 Nominal voltage: AC110V | Max. continuous voltage Uc: AC130V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1010T220 Nominal voltage: AC220V | Max. continuous voltage Uc: AC300V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1010T380 Nominal voltage: AC380V | Max. continuous voltage Uc: AC510V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1010T440 Nominal voltage: AC440V | Max. continuous voltage Uc: AC625V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1015T110 Nominal voltage: AC110V | Max. continuous voltage Uc: AC130V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1015T220 Nominal voltage: AC220V | Max. continuous voltage Uc: AC300V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1015T380 Nominal voltage: AC380V | Max. continuous voltage Uc: AC510V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1015T440 Nominal voltage: AC440V | Max. continuous voltage Uc: AC625V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1025T110 Nominal voltage: AC110V | Max. continuous voltage Uc: AC130V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1025T220 Nominal voltage: AC220V | Max. continuous voltage Uc: AC300V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1025T380 Nominal voltage: AC380V | Max. continuous voltage Uc: AC510V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1025T440 Nominal voltage: AC440V | Max. continuous voltage Uc: AC625V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1040T110 Nominal voltage: AC110V | Max. continuous voltage Uc: AC130V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1040T220 Nominal voltage: AC220V | Max. continuous voltage Uc: AC300V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1040T380 Nominal voltage: AC380V | Max. continuous voltage Uc: AC510V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1040T440 Nominal voltage: AC440V | Max. continuous voltage Uc: AC625V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.04 kg
WYPA1070T110 Nominal voltage: AC110V | Max. continuous voltage Uc: AC130V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.07 kg
WYPA1070T220 Nominal voltage: AC220V | Max. continuous voltage Uc: AC300V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.07 kg
WYPA1070T380 Nominal voltage: AC380V | Max. continuous voltage Uc: AC510V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.07 kg
WYPA1070T440 Nominal voltage: AC440V | Max. continuous voltage Uc: AC625V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.07 kg
