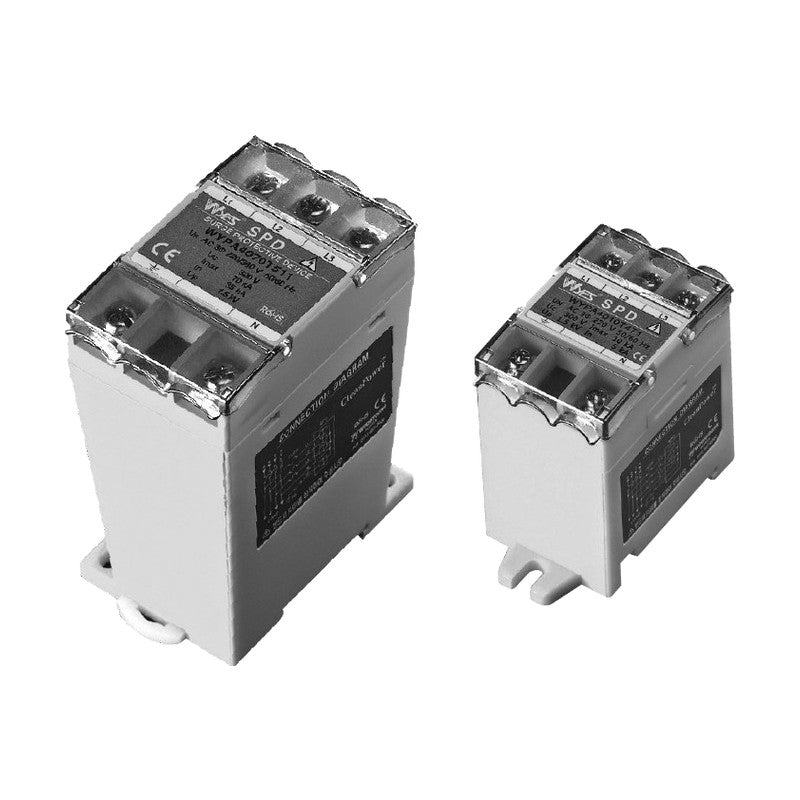

Woonyoung WYPA4 General Type SPD, 3-Phase 4-Wire 3P4W, 380/220VAC, 10-70kA

Woonyoung WYPA4 General Type SPD, 3-Phase 4-Wire 3P4W, 380/220VAC, 10-70kA

Block-type surge protective device for three-phase four-wire (N-earthed) 380/220VAC systems.

Key features

  • For 380/220VAC three-phase N-earthed systems
  • Maximum discharge current 10kA to 70kA
  • Voltage protection level below 1.5kV
  • Screw terminal block housing

Specifications

Connection Screw terminal
Terminal lug size Type A: max 8 / min 3.5 mm; Type B: max 13 / min 5 mm
WYPA4010T380 Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC600V/300V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.5 kg
WYPA4015T380 Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.5 kg
WYPA4025T220 Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
WYPA4040T380 Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
WYPA4075T440 Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/320V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
Surge Protection DevicesWoonyoung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPA4 General Type SPD, 3-Phase 4-Wire 3P4W, 380/220VAC, 10-70kA

Brand Woonyoung·Surge Protection Devices

Available part numbers (5)

WYPA4010T380, WYPA4015T380, WYPA4025T220, WYPA4040T380, WYPA4075T440

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPA4010T380Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC600V/300V | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.5 kg
WYPA4015T380Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 15kA | Nominal discharge current In: 7.5kA | Voltage protection level Up: < 1.5kV | Dimension type: A | Weight: 0.5 kg
WYPA4025T220Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 25kA | Nominal discharge current In: 12.5kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
WYPA4040T380Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/275V | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
WYPA4075T440Nominal voltage: AC380V/220V | Max. continuous voltage Uc: AC550V/320V | Max. discharge current Imax: 70kA | Nominal discharge current In: 35kA | Voltage protection level Up: < 1.5kV | Dimension type: B | Weight: 0.8 kg
