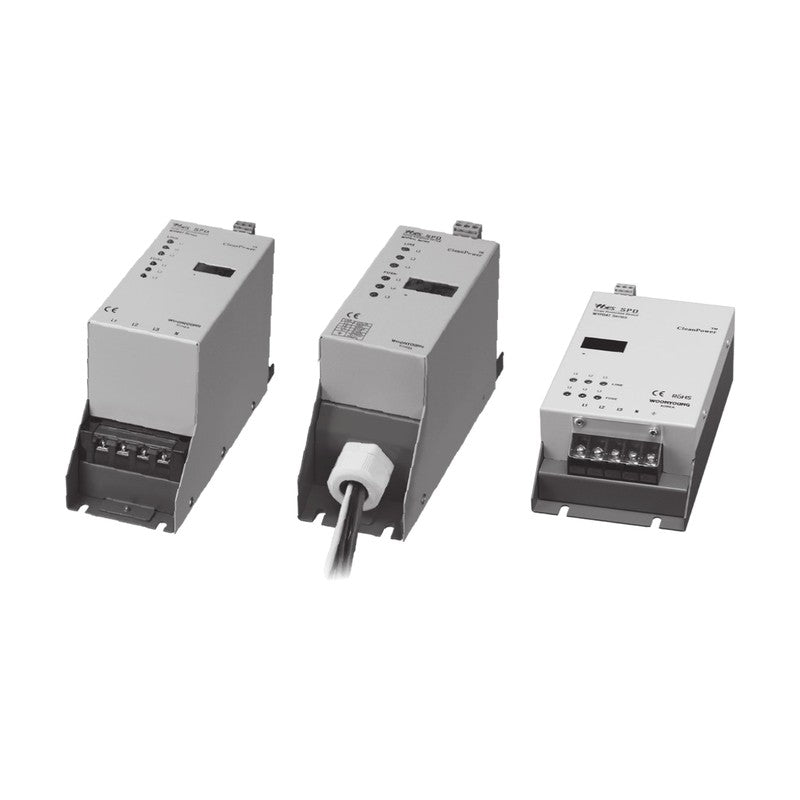

Woonyoung WYPB/WYPD Counter Type SPD, 3-Phase 4-Wire 3P4W, 20-240kA, 380VAC

Woonyoung WYPB/WYPD Counter Type SPD, 3-Phase 4-Wire 3P4W, 20-240kA, 380VAC

Surge protective device with built-in surge counter for three-phase four-wire N-earthed 380VAC power systems.

Key features

  • Built-in surge counter with display
  • Auxiliary power AC/DC 100-240V
  • Thermal runaway fuse with fault indicator LED
  • Terminal (T) or lead wire (L) connection versions
  • PB and PD (horizontal) housing styles

Specifications

Aux. power AC/DC 100-240V
Surge counter Built-in
Protection mode L-N, N-G, L-L, L-G
Fuse Built-in thermal runaway fuse
Connection mode Parallel connection
Indicator LED Green: power / Red: fuse off
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
WYPB4020T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB4020L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB4040T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB4040L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD4020T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD4020L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD4040T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD4040L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB4080T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB4080L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB4100T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB4100L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB4120T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4120L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4160T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4160L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4200T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4200L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4240T380C Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB4240L380C Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4080T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD4080L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD4100T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD4100L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD4120T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4120L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4160T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4160L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4200T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4200L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4240T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD4240L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 640VAC | Voltage protection level Up: L-N, N-G < 1.2kV; L-L, L-G < 2.1kV @ 20kV/10kA | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
Surge Protection DevicesWoonyoung
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPB/WYPD Counter Type SPD, 3-Phase 4-Wire 3P4W, 20-240kA, 380VAC

Brand Woonyoung·Surge Protection Devices

Available part numbers (32)

WYPB4020T380C, WYPB4020L380C, WYPB4040T380C, WYPB4040L380C, WYPD4020T380C, WYPD4020L380C, WYPD4040T380C, WYPD4040L380C, WYPB4080T380C, WYPB4080L380C + 22 more — see full table ↓
