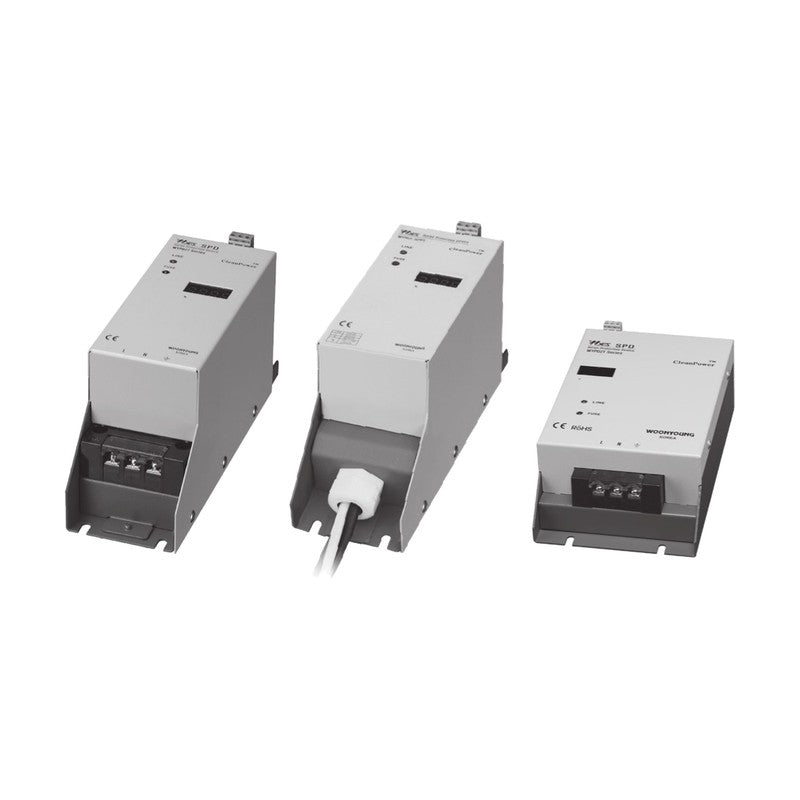

Woonyoung WYPB/WYPD Counter Type SPD, Single-Phase 1P2W, 20-120kA, 220-440VAC

Woonyoung WYPB/WYPD Counter Type SPD, Single-Phase 1P2W, 20-120kA, 220-440VAC

Surge protective device with built-in surge counter for single-phase earthed AC power systems.

Key features

  • Built-in surge counter with display
  • Auxiliary power AC/DC 100-240V
  • Thermal runaway fuse with fault indicator LED
  • Terminal (T) or lead wire (L) connection versions
  • PB and PD (horizontal) housing styles

Specifications

Aux. power AC/DC 100-240V
Surge counter Built-in
Protection mode L-N, L-G, N-G
Fuse Built-in thermal runaway fuse
Connection mode Parallel connection
Indicator LED Green: power / Red: fuse off
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
WYPB2020T220C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L220C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T220C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L220C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2080T220C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L220C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T220C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L220C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T220C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L220C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T220C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L220C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T220C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L220C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T220C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L220C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2020T380C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L380C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T380C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L380C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2020T440C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L440C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T440C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L440C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2080T380C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L380C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T380C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L380C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T380C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L380C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T380C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L380C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2080T440C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L440C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T440C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L440C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T440C Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L440C Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T440C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L440C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T440C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L440C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T440C Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L440C Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440/480VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
Surge Protection DevicesWoonyoung
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPB/WYPD Counter Type SPD, Single-Phase 1P2W, 20-120kA, 220-440VAC

Brand Woonyoung·Surge Protection Devices

Available part numbers (48)

WYPB2020T220C, WYPB2020L220C, WYPB2040T220C, WYPB2040L220C, WYPB2080T220C, WYPB2080L220C, WYPB2100T220C, WYPB2100L220C, WYPB2120T220C, WYPB2120L220C + 38 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
