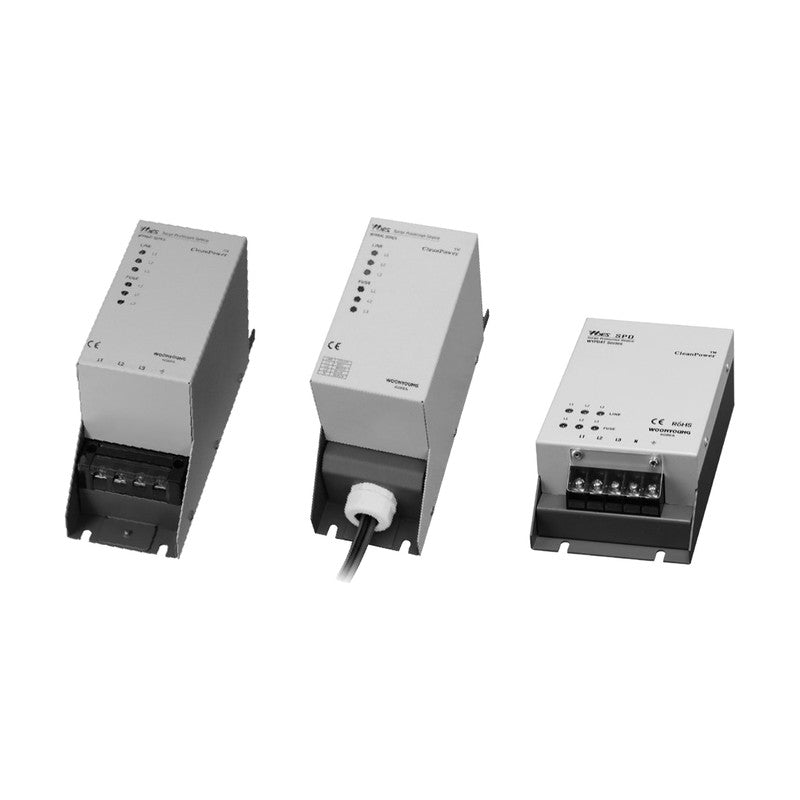

Woonyoung WYPB/WYPD High Quality Type SPD, 3-Phase 3-Wire 3P3W, 20-240kA, 220-440VAC

Woonyoung WYPB/WYPD High Quality Type SPD, 3-Phase 3-Wire 3P3W, 20-240kA, 220-440VAC

Enclosed surge protective device with thermal fuse and status LEDs for three-phase three-wire earthed AC power systems.

Key features

  • Built-in thermal runaway fuse
  • Power and fuse-fault indicator LEDs
  • Terminal (T) or lead wire (L) connection versions
  • PB and PD (horizontal) housing styles
  • Response time under 25 ns

Specifications

Protection mode L-L, L-G
Fuse Built-in thermal runaway fuse
Connection mode Parallel connection
Indicator LED Green: power / Red: fuse off
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
WYPB3020T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3020L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3040T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3040L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3020T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3020L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3040T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3040L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3080T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3080L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3120T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3120L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240T220 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240L220 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3080T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3080L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3120T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3120L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3020T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3020L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3040T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3040L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3020T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3020L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3040T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3040L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3020T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3020L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPB3040T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3040L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3020T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3020L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 1.1 kg
WYPD3040T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPD3040L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 1.1 kg
WYPB3080T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3080L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3120T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3120L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240T380 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240L380 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3080T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3080L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3120T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3120L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3080T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3080L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3100L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPB3120T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3120L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3160L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3200L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240T440 Housing: PB | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPB3240L440 Housing: PB | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3080T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3080L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3100L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 2.3 kg
WYPD3120T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3120L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3160L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3200L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 200kA | Nominal discharge current In: 100kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
WYPD3240L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 3-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 2.1kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 240kA | Nominal discharge current In: 120kA | Max. impulse current Iimp: 12.5kA | Protection class: Class I, II, III | Wire size: 10 mm2 | Weight: 2.3 kg
Surge Protection DevicesWoonyoung
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPB/WYPD High Quality Type SPD, 3-Phase 3-Wire 3P3W, 20-240kA, 220-440VAC

Brand Woonyoung·Surge Protection Devices

Available part numbers (96)

WYPB3020T220, WYPB3020L220, WYPB3040T220, WYPB3040L220, WYPD3020T220, WYPD3020L220, WYPD3040T220, WYPD3040L220, WYPB3080T220, WYPB3080L220 + 86 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
