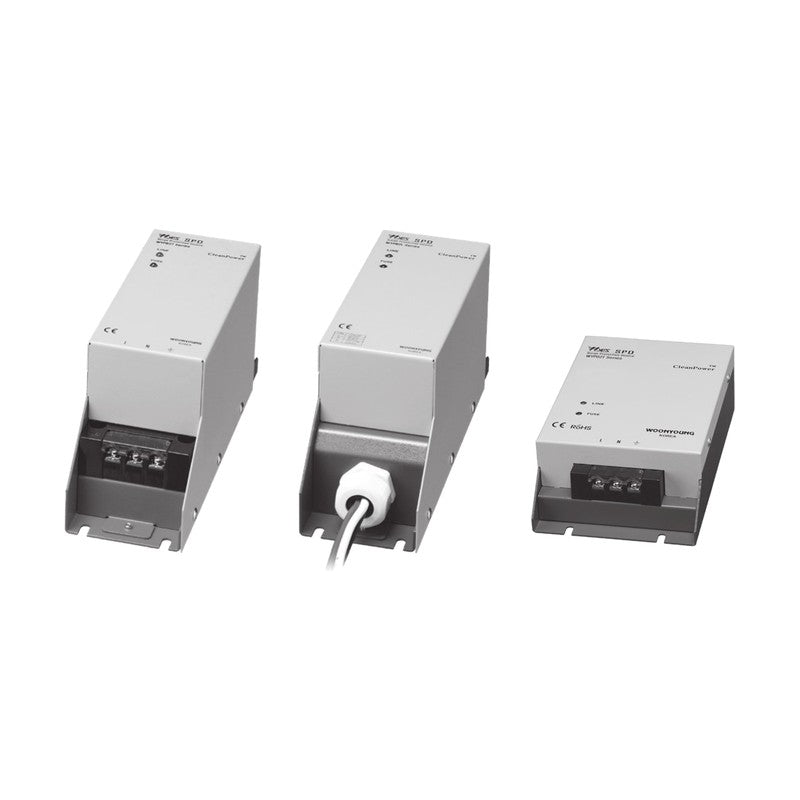

Woonyoung WYPB/WYPD High Quality Type SPD, Single-Phase 1P2W, 20-120kA, 220-440VAC

Woonyoung WYPB/WYPD High Quality Type SPD, Single-Phase 1P2W, 20-120kA, 220-440VAC

Enclosed surge protective device with thermal fuse and status LEDs for single-phase earthed AC power systems.

Key features

  • Built-in thermal runaway fuse
  • Power and fuse-fault indicator LEDs
  • Terminal (T) or lead wire (L) connection versions
  • PB and PD (horizontal) housing styles
  • Response time under 25 ns

Specifications

Protection mode L-N, L-G, N-G
Fuse Built-in thermal runaway fuse
Connection mode Parallel connection
Indicator LED Green: power / Red: fuse off
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
WYPB2020T220 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L220 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T220 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L220 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2080T220 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L220 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T220 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L220 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T220 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L220 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T220 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L220 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 220VAC | Max. continuous voltage Uc: 320VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2020T380 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L380 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T380 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L380 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2020T440 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2020L440 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 2.5 mm2 | Weight: 0.7 kg
WYPB2040T440 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2040L440 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 4 mm2 | Weight: 0.7 kg
WYPB2080T380 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L380 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T380 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L380 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T380 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L380 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T380 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L380 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 380VAC | Max. continuous voltage Uc: 460VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2080T440 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2080L440 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100T440 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2100L440 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPB2120T440 Housing: PB | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPB2120L440 Housing: PB | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2080T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2080L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2100L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 100kA | Nominal discharge current In: 50kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 6 mm2 | Weight: 1.8 kg
WYPD2120T440 Housing: PD (horizontal) | Connection: Terminal | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
WYPD2120L440 Housing: PD (horizontal) | Connection: Lead wire | Nominal voltage: 1-phase 440VAC | Max. continuous voltage Uc: 625VAC | Voltage protection level Up: < 1.2kV @ 20kV/10kA (IEC 61643-1) | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA | Max. impulse current Iimp: - | Protection class: Class II, III | Wire size: 10 mm2 | Weight: 1.8 kg
