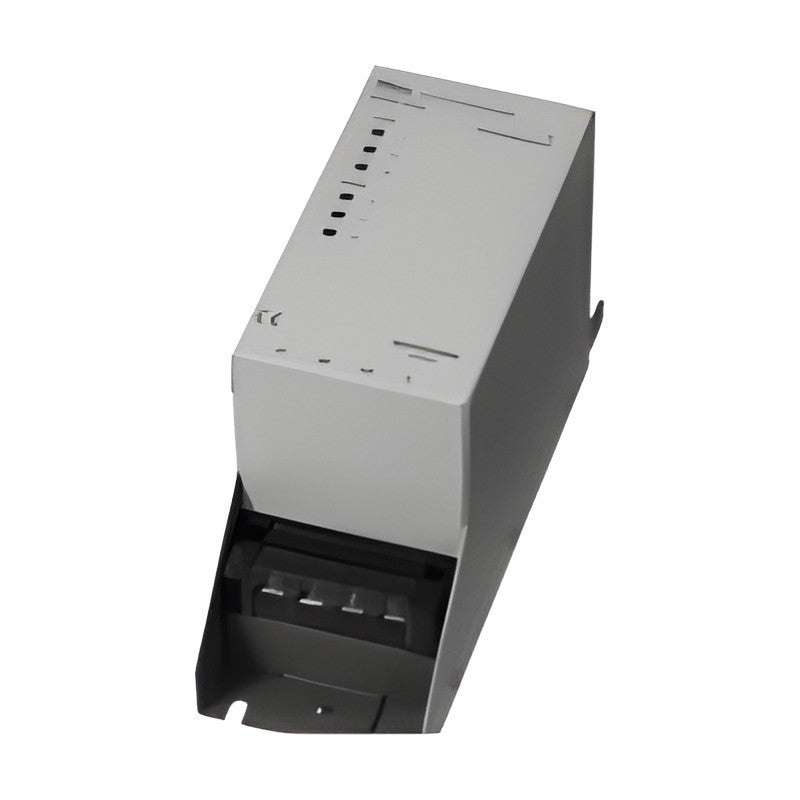

Woonyoung WYPB3080T480 High Quality Type SPD, 3-Phase 480VAC, 80kA

Enclosed three-phase surge protective device for 480VAC systems with 80kA maximum discharge current.

Key features

Rated for 480VAC three-phase systems
80kA maximum discharge current
Built-in thermal runaway fuse
Power and fuse-fault indicator LEDs

Specifications

Nominal voltage	480VAC
Max. continuous voltage Uc	625VAC
Voltage protection level Up	< 2.1kV @ 20kV/10kA (IEC 61643-1)
Max. discharge current Imax	80kA
Nominal discharge current In	40kA
Protection class	Class II, III
Protection mode	L-L, L-G
Wire size	6 mm2
Weight	2.3 kg
Fuse	Built-in thermal runaway fuse
Connection mode	Parallel connection
Indicator LED	Green: power / Red: fuse off

WYPB3080T480

Nominal voltage: 480VAC | Max. discharge current Imax: 80kA | Connection: Terminal
