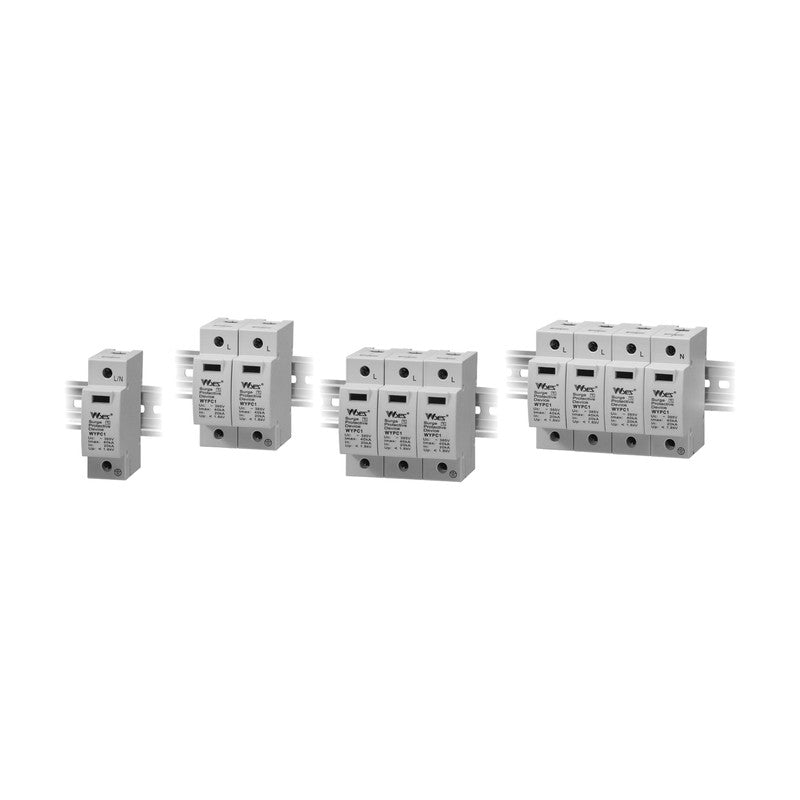

Woonyoung WYPC Module Type SPD 10/20/40kA Series, DIN Rail, 220/380VAC

Woonyoung WYPC Module Type SPD 10/20/40kA Series, DIN Rail, 220/380VAC

DIN-rail modular surge protective device that diverts transient overvoltages from the power line to earth to protect downstream equipment.

Key features

  • Compact DIN-rail plug-in module design
  • Available in 1, 2, 3 and 4 pole configurations
  • Class II/III protection for distribution and sub-distribution boards
  • Green/red status indicator shows normal or failed condition
  • Response time under 25 ns

Specifications

Mounting DIN rail
Poles 1, 2, 3, 4 pole
Protection class Class II, III
Protection mode L, N-G
Indicator Green: normal / Red: abnormal
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
Wire size Phase/neutral > 6 mm2, earth > 6 mm2
Weight 1-phase 0.2 kg / 3-phase 0.5 kg
WYPC2010T220 System: Single-phase 2-wire (1P2W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 0.8 | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA
WYPC2020T220 System: Single-phase 2-wire (1P2W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.0 | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA
WYPC2040T220 System: Single-phase 2-wire (1P2W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.2 | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA
WYPC3010T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 0.8 | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA
WYPC3020T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.0 | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA
WYPC3040T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.2 | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA
WYPC3010T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.2 | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA
WYPC3020T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.5 | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA
WYPC3040T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.8 | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA
WYPC4010T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.2 | Max. discharge current Imax: 10kA | Nominal discharge current In: 5kA
WYPC4020T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.5 | Max. discharge current Imax: 20kA | Nominal discharge current In: 10kA
WYPC4040T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 1.8 | Max. discharge current Imax: 40kA | Nominal discharge current In: 20kA
