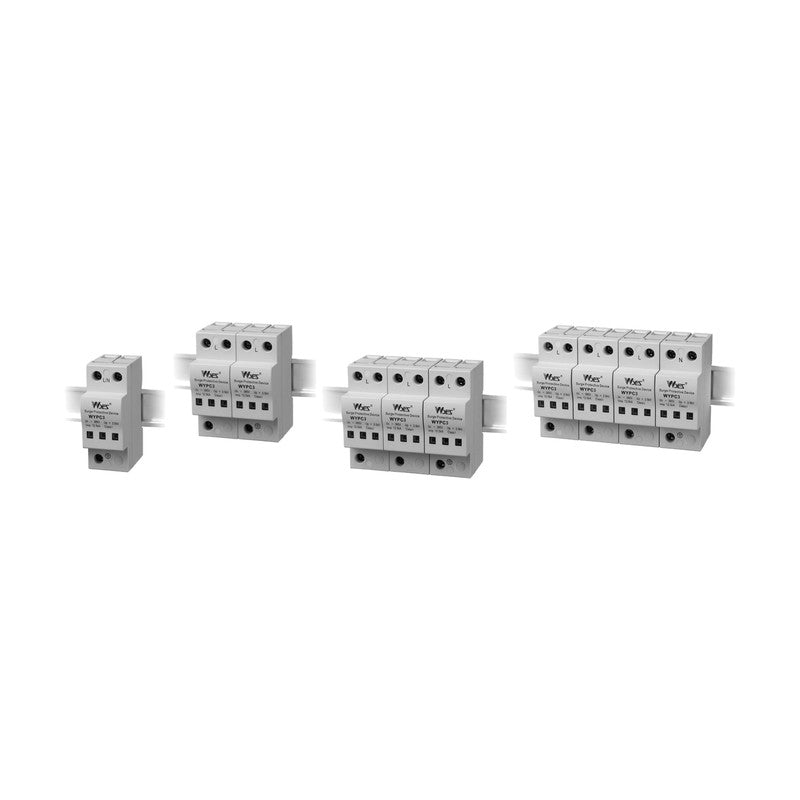

Woonyoung WYPC Module Type SPD 120/160kA Series, DIN Rail, 220/380VAC

Woonyoung WYPC Module Type SPD 120/160kA Series, DIN Rail, 220/380VAC

Heavy-duty DIN-rail modular surge protective device rated up to 160kA for service-entrance and main distribution protection.

Key features

  • DIN-rail plug-in module design
  • 120 and 160kA maximum discharge current ratings
  • Max. impulse current 12.5/15kA
  • Green/red status indicator
  • Response time under 25 ns

Specifications

Mounting DIN rail
Poles 1, 2, 3, 4 pole
Protection class Class II, III
Protection mode L, N-G
Indicator Green: normal / Red: abnormal
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
Max. impulse current Iimp 12.5 / 15kA
Wire size Phase/neutral > 10 mm2, earth > 16 mm2
WYPC3120T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA
WYPC3160T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA
WYPC4120T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA
WYPC4160T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA
Surge Protection DevicesWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPC Module Type SPD 120/160kA Series, DIN Rail, 220/380VAC

Brand Woonyoung·Surge Protection Devices

Available part numbers (4)

WYPC3120T220, WYPC3160T220, WYPC4120T380, WYPC4160T380

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPC3120T220System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA
WYPC3160T220System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA
WYPC4120T380System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 120kA | Nominal discharge current In: 60kA
WYPC4160T380System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 160kA | Nominal discharge current In: 80kA
