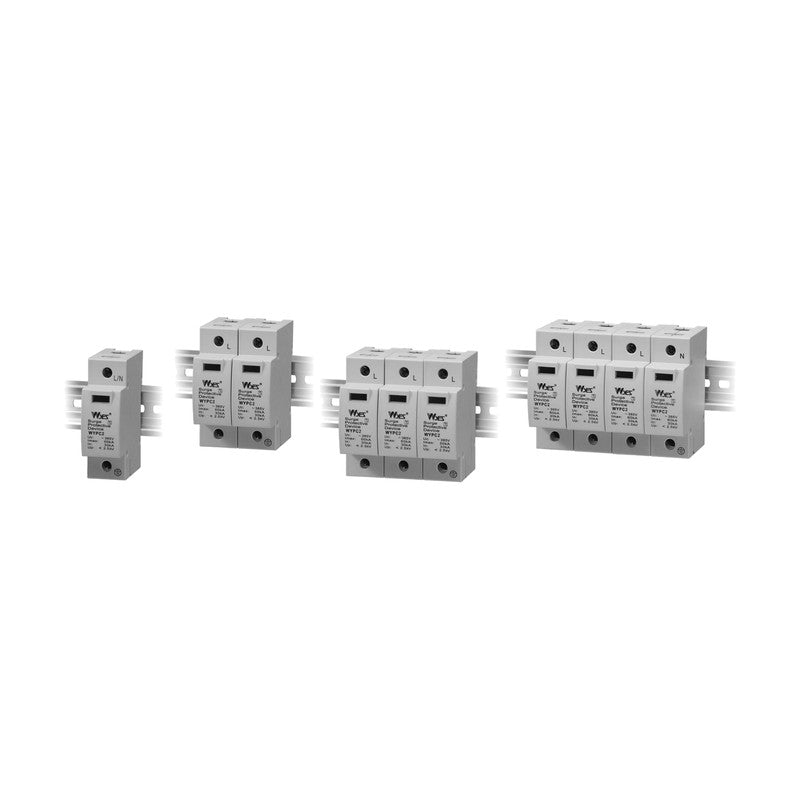

Woonyoung WYPC Module Type SPD 60/80/100kA Series, DIN Rail, 220/380VAC

Woonyoung WYPC Module Type SPD 60/80/100kA Series, DIN Rail, 220/380VAC

High-capacity DIN-rail modular surge protective device for main distribution boards that diverts lightning and switching surges to earth.

Key features

  • DIN-rail plug-in module design
  • 60, 80 and 100kA maximum discharge current ratings
  • Class II/III protection
  • Green/red status indicator
  • Response time under 25 ns

Specifications

Mounting DIN rail
Poles 1, 2, 3, 4 pole
Protection class Class II, III
Protection mode L, N-G
Indicator Green: normal / Red: abnormal
Operating temperature -40 to 90 C
Operating humidity 35 to 85% RH
Storage temperature -40 to 125 C
Response time < 25 ns
Rated frequency 50/60 Hz
Wire size Phase/neutral > 10 mm2, earth > 16 mm2
Weight 1-phase 0.2 kg / 3-phase 0.5 kg
WYPC3060T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.5 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC3080T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.8 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC3100T220 System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
WYPC3060T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC3080T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.2 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC3100T380 System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
WYPC4060T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC4080T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.2 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC4100T380 System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
Surge Protection DevicesWoonyoung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPC Module Type SPD 60/80/100kA Series, DIN Rail, 220/380VAC

Brand Woonyoung·Surge Protection Devices

Available part numbers (9)

WYPC3060T220, WYPC3080T220, WYPC3100T220, WYPC3060T380, WYPC3080T380, WYPC3100T380, WYPC4060T380, WYPC4080T380, WYPC4100T380

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPC3060T220System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.5 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC3080T220System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 1.8 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC3100T220System: 3-phase 3-wire (3P3W) | Nominal voltage: 220VAC | Max. continuous voltage Uc: 275VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
WYPC3060T380System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC3080T380System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.2 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC3100T380System: 3-phase 3-wire (3P3W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
WYPC4060T380System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.0 | Max. discharge current Imax: 60kA | Nominal discharge current In: 30kA
WYPC4080T380System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.2 | Max. discharge current Imax: 80kA | Nominal discharge current In: 40kA
WYPC4100T380System: 3-phase 4-wire (3P4W) | Nominal voltage: 380VAC | Max. continuous voltage Uc: 385VAC | Voltage protection level Up: <= 2.5 | Max. discharge current Imax: 100kA | Nominal discharge current In: 60kA
