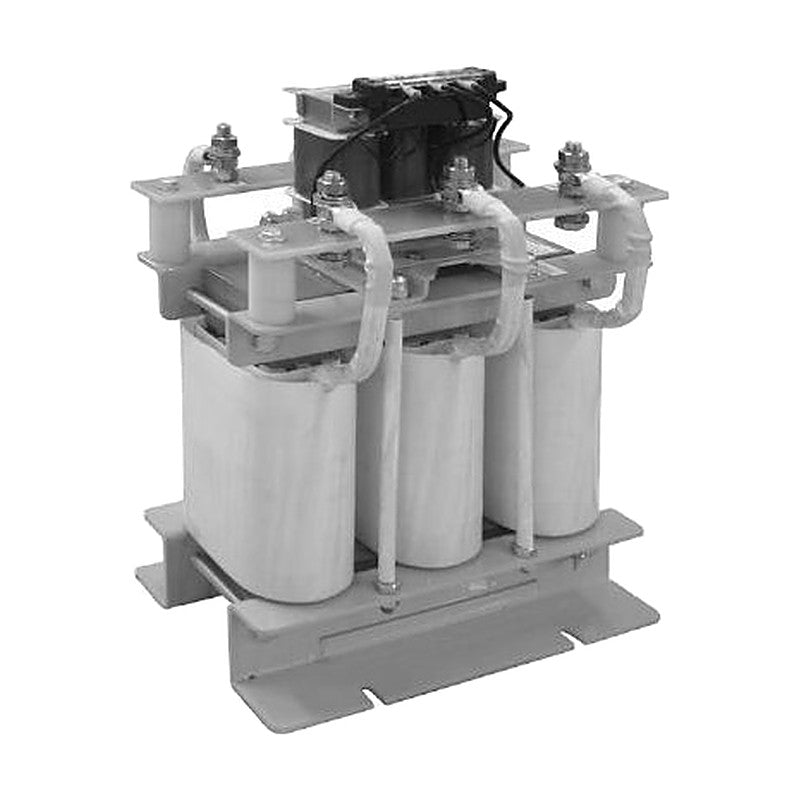

Woonyoung WYSR4 Series Low-Voltage Capacitor Series Reactor, 3-Phase 380 V

Woonyoung WYSR4 Series Low-Voltage Capacitor Series Reactor, 3-Phase 380 V

Three-phase 6% series reactor for low-voltage power-factor capacitors (5th harmonic), 380 V standard with 220/440 V options, for 10 to 300 kvar capacitors.

Key features

  • L = 6% for 5th-harmonic systems (use 13% where 3rd harmonics exist)
  • Capacitor terminal voltage rises to 106% with L = 6% (115% with 13%)
  • 380 V standard; 220 V and 440 V options
  • 60 Hz standard (50 Hz option)

Specifications

Rating 3-phase 380 V (220/440 V option), 60 Hz (50 Hz option)
Reactance 6% (13% option)
Dielectric withstand AC 3000 V / 1 min
Insulation resistance 500 MOhm at DC 500 V
Protection IP20
Capacity tolerance -5 to +10%
Operating temperature -20 to +40 C
WYSR4-0.6 Capacitor capacity: 10 kvar | Reactor rating: 0.6 kVA | Rated current: 15 A | Dimensions W x D x H: 220 x 214 x 328 mm | Weight: 20 kg
WYSR4-0.9 Capacitor capacity: 15 kvar | Reactor rating: 0.9 kVA | Rated current: 23 A | Dimensions W x D x H: 220 x 214 x 328 mm | Weight: 20 kg
WYSR4-1.2 Capacitor capacity: 20 kvar | Reactor rating: 1.2 kVA | Rated current: 30 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-1.5 Capacitor capacity: 25 kvar | Reactor rating: 1.5 kVA | Rated current: 38 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-1.8 Capacitor capacity: 30 kvar | Reactor rating: 1.8 kVA | Rated current: 46 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-2.4 Capacitor capacity: 40 kvar | Reactor rating: 2.4 kVA | Rated current: 61 A | Dimensions W x D x H: 270 x 264 x 428 mm | Weight: 40 kg
WYSR4-3.0 Capacitor capacity: 50 kvar | Reactor rating: 3.0 kVA | Rated current: 76 A | Dimensions W x D x H: 280 x 271 x 440 mm | Weight: 40 kg
WYSR4-3.6 Capacitor capacity: 60 kvar | Reactor rating: 3.6 kVA | Rated current: 91 A | Dimensions W x D x H: 280 x 271 x 440 mm | Weight: 50 kg
WYSR4-4.5 Capacitor capacity: 75 kvar | Reactor rating: 4.5 kVA | Rated current: 114 A | Dimensions W x D x H: 290 x 301 x 441 mm | Weight: 50 kg
WYSR4-6.0 Capacitor capacity: 100 kvar | Reactor rating: 6.0 kVA | Rated current: 152 A | Dimensions W x D x H: 350 x 309 x 498 mm | Weight: 70 kg
WYSR4-9.0 Capacitor capacity: 150 kvar | Reactor rating: 9.0 kVA | Rated current: 228 A | Dimensions W x D x H: 350 x 339 x 499 mm | Weight: 75 kg
WYSR4-12 Capacitor capacity: 200 kvar | Reactor rating: 12 kVA | Rated current: 304 A | Dimensions W x D x H: 370 x 356 x 564 mm | Weight: 105 kg
WYSR4-15 Capacitor capacity: 250 kvar | Reactor rating: 15 kVA | Rated current: 380 A | Dimensions W x D x H: 450 x 360 x 550 mm | Weight: 120 kg
WYSR4-18 Capacitor capacity: 300 kvar | Reactor rating: 18 kVA | Rated current: 455 A | Dimensions W x D x H: 410 x 343 x 478 mm | Weight: 140 kg
ReactorsWoonyoung
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYSR4 Series Low-Voltage Capacitor Series Reactor, 3-Phase 380 V

Brand Woonyoung·Reactors

Available part numbers (14)

WYSR4-0.6, WYSR4-0.9, WYSR4-1.2, WYSR4-1.5, WYSR4-1.8, WYSR4-2.4, WYSR4-3.0, WYSR4-3.6, WYSR4-4.5, WYSR4-6.0 + 4 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSR4-0.6Capacitor capacity: 10 kvar | Reactor rating: 0.6 kVA | Rated current: 15 A | Dimensions W x D x H: 220 x 214 x 328 mm | Weight: 20 kg
WYSR4-0.9Capacitor capacity: 15 kvar | Reactor rating: 0.9 kVA | Rated current: 23 A | Dimensions W x D x H: 220 x 214 x 328 mm | Weight: 20 kg
WYSR4-1.2Capacitor capacity: 20 kvar | Reactor rating: 1.2 kVA | Rated current: 30 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-1.5Capacitor capacity: 25 kvar | Reactor rating: 1.5 kVA | Rated current: 38 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-1.8Capacitor capacity: 30 kvar | Reactor rating: 1.8 kVA | Rated current: 46 A | Dimensions W x D x H: 270 x 264 x 403 mm | Weight: 30 kg
WYSR4-2.4Capacitor capacity: 40 kvar | Reactor rating: 2.4 kVA | Rated current: 61 A | Dimensions W x D x H: 270 x 264 x 428 mm | Weight: 40 kg
WYSR4-3.0Capacitor capacity: 50 kvar | Reactor rating: 3.0 kVA | Rated current: 76 A | Dimensions W x D x H: 280 x 271 x 440 mm | Weight: 40 kg
WYSR4-3.6Capacitor capacity: 60 kvar | Reactor rating: 3.6 kVA | Rated current: 91 A | Dimensions W x D x H: 280 x 271 x 440 mm | Weight: 50 kg
WYSR4-4.5Capacitor capacity: 75 kvar | Reactor rating: 4.5 kVA | Rated current: 114 A | Dimensions W x D x H: 290 x 301 x 441 mm | Weight: 50 kg
WYSR4-6.0Capacitor capacity: 100 kvar | Reactor rating: 6.0 kVA | Rated current: 152 A | Dimensions W x D x H: 350 x 309 x 498 mm | Weight: 70 kg
WYSR4-9.0Capacitor capacity: 150 kvar | Reactor rating: 9.0 kVA | Rated current: 228 A | Dimensions W x D x H: 350 x 339 x 499 mm | Weight: 75 kg
WYSR4-12Capacitor capacity: 200 kvar | Reactor rating: 12 kVA | Rated current: 304 A | Dimensions W x D x H: 370 x 356 x 564 mm | Weight: 105 kg
WYSR4-15Capacitor capacity: 250 kvar | Reactor rating: 15 kVA | Rated current: 380 A | Dimensions W x D x H: 450 x 360 x 550 mm | Weight: 120 kg
WYSR4-18Capacitor capacity: 300 kvar | Reactor rating: 18 kVA | Rated current: 455 A | Dimensions W x D x H: 410 x 343 x 478 mm | Weight: 140 kg
