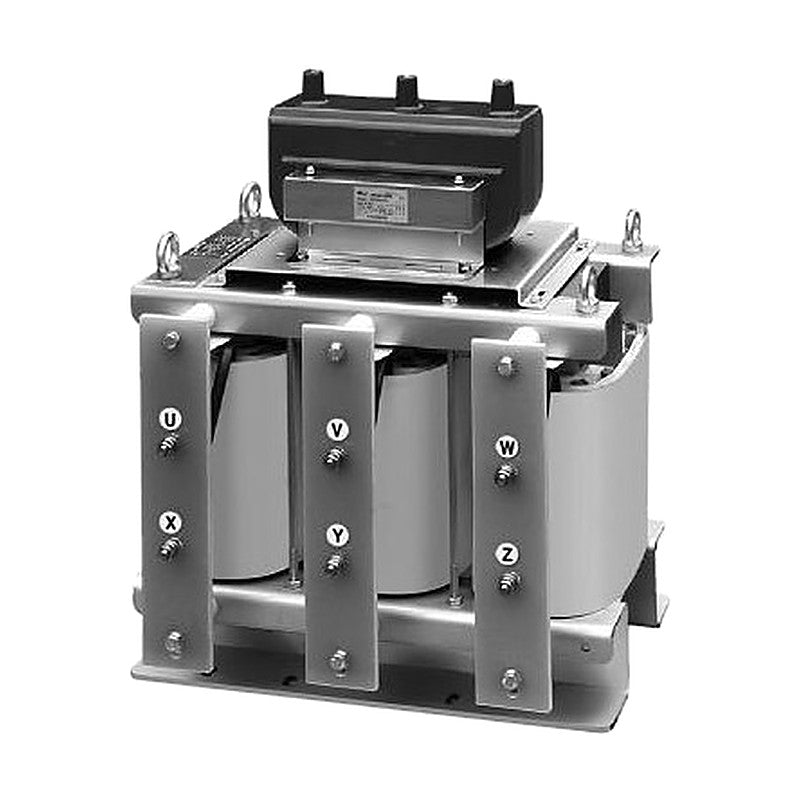

Woonyoung WYSR66 Series High-Voltage Capacitor Series Reactor, 6.6 kV

Woonyoung WYSR66 Series High-Voltage Capacitor Series Reactor, 6.6 kV

Three-phase 6% series reactor for high-voltage power-factor capacitor banks, 0.6 kVA to 60 kVA for 10 to 1000 kvar capacitors.

Key features

  • L = 6% for 5th-harmonic systems (13% for 3rd harmonics)
  • Insulation class F (3B or 6B)
  • Aluminium conductors
  • 60 Hz standard (50 Hz / 13% options)

Specifications

Rating 3-phase 3.3 kV / 6.6 kV, 60 Hz, L = 6% (50 Hz, L = 13% option)
Insulation class F (3B or 6B)
Dielectric withstand 3.3 kV: 10 kV / 1 min; 6.6 kV: 16 kV / 1 min
Impulse withstand 3.3 kV: 30 kV; 6.6 kV: 45 kV
Insulation resistance 500 MOhm at DC 500 V
Protection IP20
Capacity tolerance -5 to +10%
Operating temperature -20 to +40 C
Conductor Aluminium
WYSR66-0.6A Reactor capacity: 0.6 kVA | Capacitor capacity: 10 kvar | Dimensions W x D x H: 315 x 310 x 590 mm | Weight: 26 kg
WYSR66-0.9A Reactor capacity: 0.9 kVA | Capacitor capacity: 15 kvar | Dimensions W x D x H: 315 x 310 x 590 mm | Weight: 26 kg
WYSR66-1.2A Reactor capacity: 1.2 kVA | Capacitor capacity: 20 kvar | Dimensions W x D x H: 315 x 320 x 590 mm | Weight: 30 kg
WYSR66-1.5A Reactor capacity: 1.5 kVA | Capacitor capacity: 25 kvar | Dimensions W x D x H: 315 x 320 x 590 mm | Weight: 30 kg
WYSR66-1.8A Reactor capacity: 1.8 kVA | Capacitor capacity: 30 kvar | Dimensions W x D x H: 340 x 310 x 610 mm | Weight: 40 kg
WYSR66-2.4A Reactor capacity: 2.4 kVA | Capacitor capacity: 40 kvar | Dimensions W x D x H: 340 x 310 x 610 mm | Weight: 40 kg
WYSR66-3A Reactor capacity: 3 kVA | Capacitor capacity: 50 kvar | Dimensions W x D x H: 370 x 320 x 615 mm | Weight: 53 kg
WYSR66-3.6A Reactor capacity: 3.6 kVA | Capacitor capacity: 60 kvar | Dimensions W x D x H: 370 x 320 x 615 mm | Weight: 54 kg
WYSR66-4.2A Reactor capacity: 4.2 kVA | Capacitor capacity: 70 kvar | Dimensions W x D x H: 370 x 320 x 615 mm | Weight: 54 kg
WYSR66-4.5A Reactor capacity: 4.5 kVA | Capacitor capacity: 75 kvar | Dimensions W x D x H: 435 x 365 x 635 mm | Weight: 69 kg
WYSR66-4.8A Reactor capacity: 4.8 kVA | Capacitor capacity: 80 kvar | Dimensions W x D x H: 435 x 365 x 635 mm | Weight: 69 kg
WYSR66-6A Reactor capacity: 6 kVA | Capacitor capacity: 100 kvar | Dimensions W x D x H: 435 x 365 x 635 mm | Weight: 69 kg
WYSR66-7.2A Reactor capacity: 7.2 kVA | Capacitor capacity: 120 kvar | Dimensions W x D x H: 445 x 385 x 700 mm | Weight: 113 kg
WYSR66-9A Reactor capacity: 9 kVA | Capacitor capacity: 150 kvar | Dimensions W x D x H: 445 x 385 x 700 mm | Weight: 113 kg
WYSR66-12A Reactor capacity: 12 kVA | Capacitor capacity: 200 kvar | Dimensions W x D x H: 510 x 420 x 700 mm | Weight: 141 kg
WYSR66-15A Reactor capacity: 15 kVA | Capacitor capacity: 250 kvar | Dimensions W x D x H: 510 x 420 x 700 mm | Weight: 141 kg
WYSR66-18A Reactor capacity: 18 kVA | Capacitor capacity: 300 kvar | Dimensions W x D x H: 550 x 430 x 710 mm | Weight: 186 kg
WYSR66-21A Reactor capacity: 21 kVA | Capacitor capacity: 350 kvar | Dimensions W x D x H: 550 x 430 x 710 mm | Weight: 194 kg
WYSR66-24A Reactor capacity: 24 kVA | Capacitor capacity: 400 kvar | Dimensions W x D x H: 550 x 430 x 710 mm | Weight: 194 kg
WYSR66-30A Reactor capacity: 30 kVA | Capacitor capacity: 500 kvar | Dimensions W x D x H: 590 x 465 x 735 mm | Weight: 245 kg
WYSR66-36A Reactor capacity: 36 kVA | Capacitor capacity: 600 kvar | Dimensions W x D x H: 590 x 465 x 735 mm | Weight: 245 kg
WYSR66-42A Reactor capacity: 42 kVA | Capacitor capacity: 700 kvar | Dimensions W x D x H: 650 x 515 x 820 mm | Weight: 334 kg
WYSR66-45A Reactor capacity: 45 kVA | Capacitor capacity: 750 kvar | Dimensions W x D x H: 650 x 515 x 820 mm | Weight: 339 kg
WYSR66-48A Reactor capacity: 48 kVA | Capacitor capacity: 800 kvar | Dimensions W x D x H: 730 x 600 x 900 mm | Weight: 441 kg
WYSR66-54A Reactor capacity: 54 kVA | Capacitor capacity: 900 kvar | Dimensions W x D x H: 730 x 600 x 900 mm | Weight: 456 kg
WYSR66-60A Reactor capacity: 60 kVA | Capacitor capacity: 1000 kvar | Dimensions W x D x H: 810 x 670 x 940 mm | Weight: 557 kg
