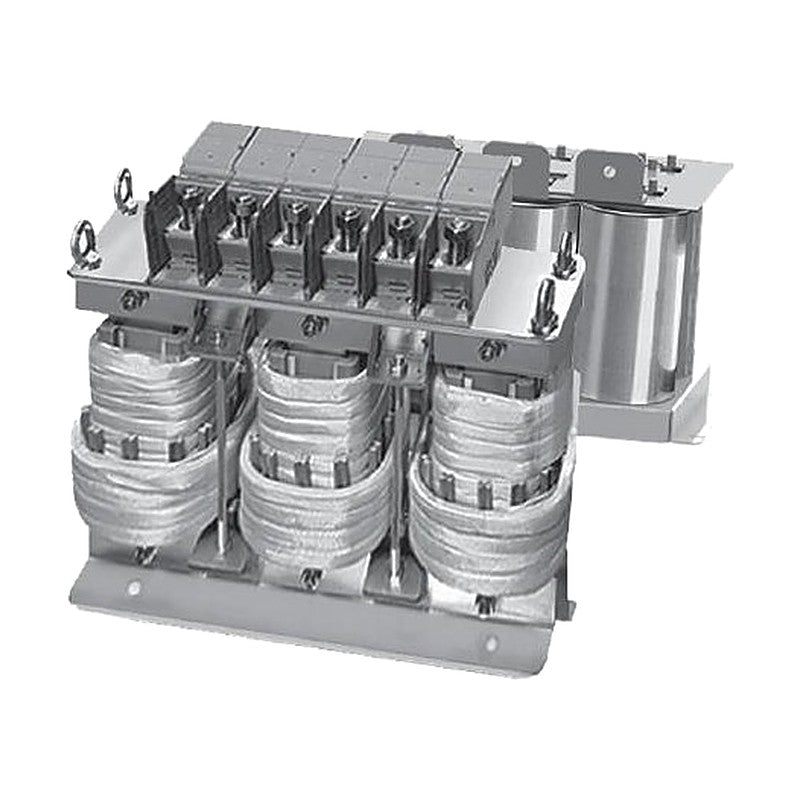

Woonyoung WYSWF404 Sine-Wave Filter, Vertical, 450 Hz, 200-355 kW

Woonyoung WYSWF404 Sine-Wave Filter, Vertical, 450 Hz, 200-355 kW

Open-frame vertical sine-wave output filter for high-speed 400 VAC (Umax 500 V) inverter drives up to 450 Hz output, 4-16 kHz switching, 200-355 kW.

Key features

  • LC filter that converts PWM inverter output into a near-sinusoidal voltage for the motor
  • Protects motors from insulation stress, overheating and bearing damage caused by PWM voltage
  • Allows long motor cables and reduces audible motor noise and EMI
  • Harmonic voltage distortion max. 5%
  • Alarm contact N.C. 150 C (TH1-TH2) on wall-mount models
  • CE and RoHS marked

Specifications

Load Inverter-driven 3-phase motor
Rated voltage 380-480 VAC
Efficiency > 98%
Input waveform PWM
Current rating 100% RMS continuous, 120% for 1 min intermittent
Protection class IP20
Dielectric withstand Line-FG 3,000 VAC / 1 min
Insulation resistance Line-FG 100 MOhm or more / 500 VDC
Ambient temperature Operating -10 to +50 C, storage -20 to +80 C
Humidity 0-90% RH non-condensing
Current range 370/460/570/630 A
Max output frequency 450 Hz (inverter operating frequency 6-450 Hz)
WYSWF404-200 Motor power (PFU): 200 kW | Rated current I: 370 A | Max current IMAX: 463 A | Dimensions W x D x H: 557 x 350 x 491 mm | Mounting pitch W1 x D1: 400 x 140 mm | Mounting hole: dia. 14 mm | Terminal F: M12 | Weight: 96 kg
WYSWF404-250 Motor power (PFU): 250 kW | Rated current I: 460 A | Max current IMAX: 575 A | Dimensions W x D x H: 561 x 360 x 502 mm | Mounting pitch W1 x D1: 400 x 140 mm | Mounting hole: dia. 14 mm | Terminal F: M16 | Weight: 113 kg
WYSWF404-315 Motor power (PFU): 315 kW | Rated current I: 570 A | Max current IMAX: 712 A | Dimensions W x D x H: 690 x 380 x 563 mm | Mounting pitch W1 x D1: 400 x 180 mm | Mounting hole: dia. 14 mm | Terminal F: M12 x 2 | Weight: 160 kg
WYSWF404-355 Motor power (PFU): 355 kW | Rated current I: 630 A | Max current IMAX: 787 A | Dimensions W x D x H: 690 x 380 x 563 mm | Mounting pitch W1 x D1: 400 x 180 mm | Mounting hole: dia. 14 mm | Terminal F: M12 x 2 | Weight: 180 kg
