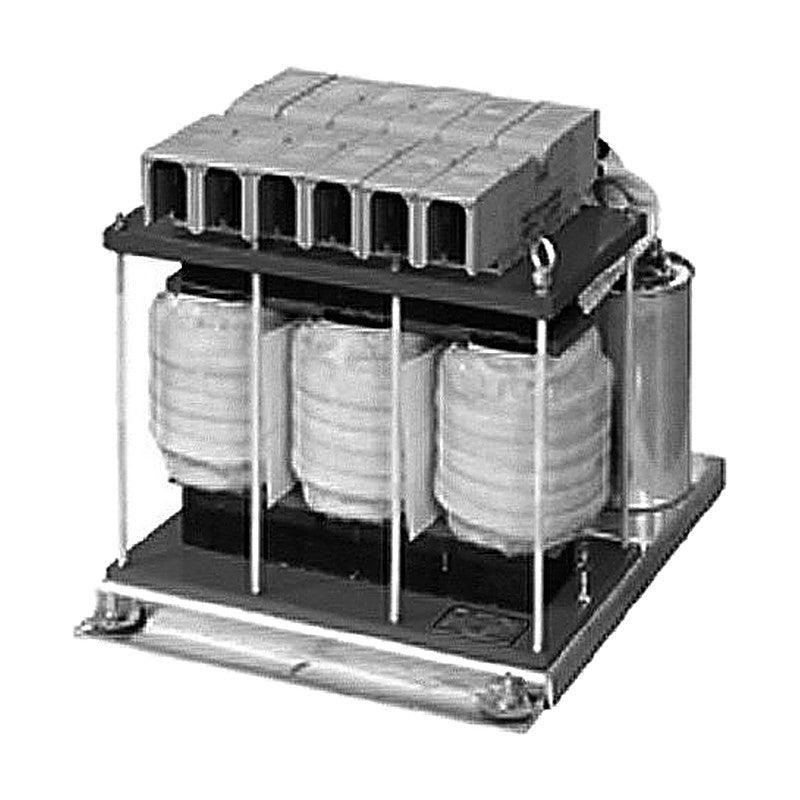

Open-frame vertical sine-wave output filter for high-speed 400 VAC (Umax 500 V) inverter drives up to 1 kHz output, 8-16 kHz switching, 30-132 kW.

Key features

  • LC filter that converts PWM inverter output into a near-sinusoidal voltage for the motor
  • Protects motors from insulation stress, overheating and bearing damage caused by PWM voltage
  • Allows long motor cables and reduces audible motor noise and EMI
  • Harmonic voltage distortion max. 5%
  • Alarm contact N.C. 150 C (TH1-TH2) on wall-mount models
  • CE and RoHS marked

Specifications

Load Inverter-driven 3-phase motor
Rated voltage 380-480 VAC
Efficiency > 98%
Input waveform PWM
Current rating 100% RMS continuous, 120% for 1 min intermittent
Protection class IP20
Dielectric withstand Line-FG 3,000 VAC / 1 min
Insulation resistance Line-FG 100 MOhm or more / 500 VDC
Ambient temperature Operating -10 to +50 C, storage -20 to +80 C
Humidity 30-90% RH non-condensing
Current range 60/115/250 A
Max output frequency 1 kHz
WYSWF410-30 Motor power (PFU): 30 kW | Rated current I: 60 A | Max current IMAX: 72 A | Dimensions W x D x H: 355 x 190 x 300 mm | Mounting pitch W1 x D1: 520 x 175 mm | Mounting hole: dia. 7 mm | Terminal F: M6 | Weight: 32 kg
WYSWF410-55 Motor power (PFU): 55 kW | Rated current I: 115 A | Max current IMAX: 138 A | Dimensions W x D x H: 560 x 200 x 360 mm | Mounting pitch W1 x D1: 520 x 175 mm | Mounting hole: dia. 9 mm | Terminal F: M8 | Weight: 32.5 kg
WYSWF410-132 Motor power (PFU): 132 kW | Rated current I: 250 A | Max current IMAX: 300 A | Dimensions W x D x H: 625 x 260 x 420 mm | Mounting pitch W1 x D1: 594 x 220 mm | Mounting hole: dia. 11 mm | Terminal F: M10 | Weight: 57 kg
