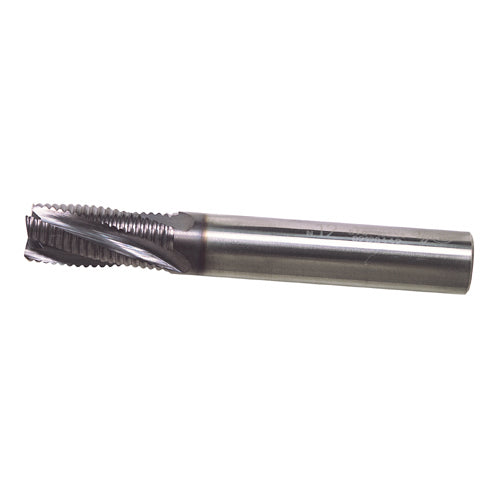

• YG-1 SEM814140 Carbide End Mill Carbide Lapping End Mill (X-POWER S)
1 1

YG-1 SEM814140 Carbide End Mill Carbide Lapping End Mill (X-POWER S)

YG-1 SEM814140 Carbide End Mill Carbide Lapping End Mill (X-POWER S)

Carbide Lapping End Mill (X-POWER S) from YG-1, sourced from Korea.

304-4591 MPN: SEM814140 | 14*16*35*100MM(SEM814140) | Spec: 14.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank D: 16
304-5305 MPN: SEM814120 | 12*12*30*80MM(SEM814120) | Spec: 12.0 | Flute Length: 30 | Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
304-5448 MPN: SEM814100 | 10*10*25*70MM(SEM814100) | Spec: 10.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 70 | Shank d: 10
304-5457 MPN: SEM814160 | 16*16*40*100MM(SEM814160) | Spec: 16.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16
304-5642 MPN: SEM8140708S | 7*8*18*70MM(SEM8140708S) | Spec: 7.0 | Flute Length: 18 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6
304-5651 MPN: SEM814080 | 8*8*20*65MM(SEM814080) | Spec: 8.0 | Flute Length: 20 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8
304-5660 MPN: SEM814200 | 20*20*50*100MM(SEM814200) | Spec: 20.0 | Flute Length: 50 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20
304-7604 MPN: SEM814060 | 6*6*15*60MM(SEM814060) | Spec: 6.0 | Flute Length: 15 | Flutes: 3 | Overall Length: 60 | Shank Diameter: 6
305-4367 MPN: SEM814030 | 3*6*8*50MM(SEM814030) | Spec: 3.0 | Flute Length: 8 | Flute Count: 3 | Overall Length: 80 | Shank Diameter: 6
305-4376 MPN: SEM814040 | 4*6*10*50MM(SEM814040) | Spec: 4.0 | Flute Length: 10 | Number of Flutes: 3 | Overall Length: 50 | Shank D: 6
305-4385 MPN: SEM814050 | 5*6*13*50MM(SEM814050) | Spec: 5.0 | Flute Length: 13 | Number of Flutes: 3 | Overall Length: 50 | Shank d: 6
305-4394 MPN: SEM81406009 | 6*6*9*60MM(SEM81406009) | Spec: 6.0 | Flute Length: 9 | Number of Flutes: 3 | Overall Length: 60 | Shank Diameter: 6
305-4400 MPN: SEM81407011 | 7*6*11*70MM(SEM81407011) | Spec: 7.0 | Flute Length: 11 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6
305-4419 MPN: SEM81408012 | 8*8*12*65MM(SEM81408012) | Spec: 8.0 | Flute Length: 12 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8
305-4428 MPN: SEM81409014 | 9*10*14*70MM(SEM81409014) | Spec: 9.0 | Flute Length: 14 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10
305-4437 MPN: SEM814090 | 9*10*22*70MM(SEM814090) | Spec: 9.0 | Flute Length: 22 | Flute Count: 4 | Overall Length: 70 | Shank Diameter: 10
305-4446 MPN: SEM81410015 | 10*10*15*70MM(SEM81410015) | Spec: 10.0 | Flute Length: 15 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10
305-4455 MPN: SEM81411017 | 11*12*17*80MM(SEM81411017) | Spec: 11.0 | Flute Length: 17 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
305-4464 MPN: SEM814110 | 11*12*27*80MM(SEM814110) | Spec: 11.0 | Flute Length: 27 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
305-4482 MPN: SEM814130 | 13*12*35*100MM(SEM814130) | Spec: 13.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank d: 12
305-4491 MPN: SEM81414025 | 14*14*25*100MM(SEM81414025) | Spec: 14.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 14
305-4507 MPN: SEM81418030 | 18*16*30*100MM(SEM81418030) | Spec: 18.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16
305-4516 MPN: SEM814180 | 18*18*40*100MM(SEM814180) | Spec: 18.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 18
305-4525 MPN: SEM81420030 | 20*20*30*100MM(SEM81420030) | Spec: 20.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20
305-4534 MPN: SEM81425038 | 25*25*38*100MM(SEM81425038) | Spec: 25.0 | Flute Length: 38 | Number of Flutes: 5 | Overall Length: 100 | Shank Diameter: 25
305-4543 MPN: SEM814250 | 25*25*50*100MM(SEM814250) | Spec: 25.0 | Flute Length: 50 | Flute Count: 5 | Overall Length: 100 | Shank Diameter: 25
305-5180 MPN: SEM81416025 | 16*16*25*100MM(SEM81416025) | Spec: 16.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16
End MillsYG-1
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 SEM814140 Carbide End Mill Carbide Lapping End Mill (X-POWER S)

Brand YG-1·End Mills

Available part numbers (27)

304-4591, 304-5305, 304-5448, 304-5457, 304-5642, 304-5651, 304-5660, 304-7604, 305-4367, 305-4376 + 17 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
304-4591MPN: SEM814140 | 14*16*35*100MM(SEM814140) | Spec: 14.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank D: 16
304-5305MPN: SEM814120 | 12*12*30*80MM(SEM814120) | Spec: 12.0 | Flute Length: 30 | Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
304-5448MPN: SEM814100 | 10*10*25*70MM(SEM814100) | Spec: 10.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 70 | Shank d: 10
304-5457MPN: SEM814160 | 16*16*40*100MM(SEM814160) | Spec: 16.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16
304-5642MPN: SEM8140708S | 7*8*18*70MM(SEM8140708S) | Spec: 7.0 | Flute Length: 18 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6
304-5651MPN: SEM814080 | 8*8*20*65MM(SEM814080) | Spec: 8.0 | Flute Length: 20 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8
304-5660MPN: SEM814200 | 20*20*50*100MM(SEM814200) | Spec: 20.0 | Flute Length: 50 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20
304-7604MPN: SEM814060 | 6*6*15*60MM(SEM814060) | Spec: 6.0 | Flute Length: 15 | Flutes: 3 | Overall Length: 60 | Shank Diameter: 6
305-4367MPN: SEM814030 | 3*6*8*50MM(SEM814030) | Spec: 3.0 | Flute Length: 8 | Flute Count: 3 | Overall Length: 80 | Shank Diameter: 6
305-4376MPN: SEM814040 | 4*6*10*50MM(SEM814040) | Spec: 4.0 | Flute Length: 10 | Number of Flutes: 3 | Overall Length: 50 | Shank D: 6
305-4385MPN: SEM814050 | 5*6*13*50MM(SEM814050) | Spec: 5.0 | Flute Length: 13 | Number of Flutes: 3 | Overall Length: 50 | Shank d: 6
305-4394MPN: SEM81406009 | 6*6*9*60MM(SEM81406009) | Spec: 6.0 | Flute Length: 9 | Number of Flutes: 3 | Overall Length: 60 | Shank Diameter: 6
305-4400MPN: SEM81407011 | 7*6*11*70MM(SEM81407011) | Spec: 7.0 | Flute Length: 11 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6
305-4419MPN: SEM81408012 | 8*8*12*65MM(SEM81408012) | Spec: 8.0 | Flute Length: 12 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8
305-4428MPN: SEM81409014 | 9*10*14*70MM(SEM81409014) | Spec: 9.0 | Flute Length: 14 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10
305-4437MPN: SEM814090 | 9*10*22*70MM(SEM814090) | Spec: 9.0 | Flute Length: 22 | Flute Count: 4 | Overall Length: 70 | Shank Diameter: 10
305-4446MPN: SEM81410015 | 10*10*15*70MM(SEM81410015) | Spec: 10.0 | Flute Length: 15 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10
305-4455MPN: SEM81411017 | 11*12*17*80MM(SEM81411017) | Spec: 11.0 | Flute Length: 17 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
305-4464MPN: SEM814110 | 11*12*27*80MM(SEM814110) | Spec: 11.0 | Flute Length: 27 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12
305-4482MPN: SEM814130 | 13*12*35*100MM(SEM814130) | Spec: 13.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank d: 12
305-4491MPN: SEM81414025 | 14*14*25*100MM(SEM81414025) | Spec: 14.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 14
305-4507MPN: SEM81418030 | 18*16*30*100MM(SEM81418030) | Spec: 18.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16
305-4516MPN: SEM814180 | 18*18*40*100MM(SEM814180) | Spec: 18.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 18
305-4525MPN: SEM81420030 | 20*20*30*100MM(SEM81420030) | Spec: 20.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20
305-4534MPN: SEM81425038 | 25*25*38*100MM(SEM81425038) | Spec: 25.0 | Flute Length: 38 | Number of Flutes: 5 | Overall Length: 100 | Shank Diameter: 25
305-4543MPN: SEM814250 | 25*25*50*100MM(SEM814250) | Spec: 25.0 | Flute Length: 50 | Flute Count: 5 | Overall Length: 100 | Shank Diameter: 25
305-5180MPN: SEM81416025 | 16*16*25*100MM(SEM81416025) | Spec: 16.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16

Need a different model, or a part not listed here? Send us your parts list →
