Fiber Optic
Omron

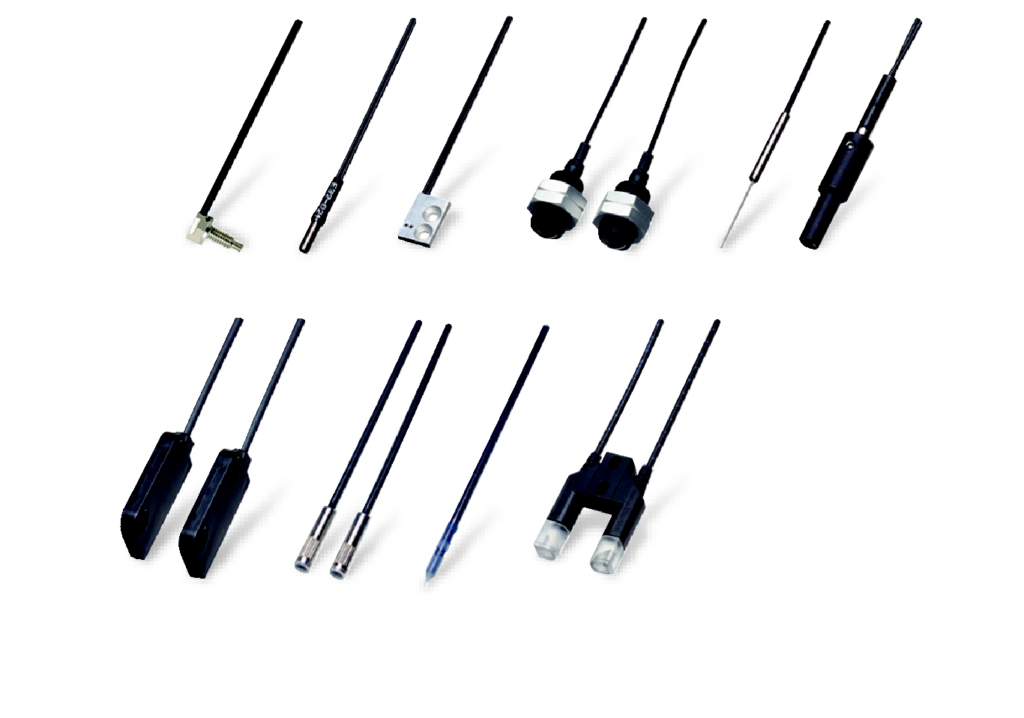

[OMRON] — E32 Chemical and Oil-resistant Fiber Units (IP67/IP68, Cutting Oil Resistant)
Family ID: OMRON-E32-CHEMRES
OMRON E32 Series chemical and oil-resistant fiber units for harsh chemical environments. Through-beam types: E32-T12F (top-view, R40), E32-T11F (top-view, R4), E32-T14F (side-view, R40, 3 dia.), E32-T51F (top-view, heat-resistant up to 150°C). Reflective types: E32-D12F (chemical/oil resistant), E32-D11U (cable only chemical resistant). All IP67. Resistant to cutting oils as specified in JIS K 2241:2000. Note: E32-T11NF/T11NFS (oil-resistant, IP68G/IP68) registered separately in oil-resistant series. PDF ref: E32 full catalog, Chemical/Oil-resistant section.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E32-T12F 2M | Chemical/oil-resistant through-beam top-view, 4 dia., R40, IP67 | OMRON | Model: E32-T12F 2M | Type: Through-beam Chemical/Oil-resistant (Set of 2) | View: Top-view | Optical Axis Dia.: 4 dia. | Bending Radius: R40 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 4,000 mm | Sensing Dist. FA ST: 4,000 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | ||
| E32-T11F 2M | Chemical/oil-resistant through-beam top-view, 4 dia., R4, IP67 | OMRON | Model: E32-T11F 2M | Type: Through-beam Chemical/Oil-resistant (Set of 2) | View: Top-view | Optical Axis Dia.: 4 dia. | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 4,000 mm | Sensing Dist. FA ST: 4,000 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | ||
| E32-T14F 2M | Chemical/oil-resistant through-beam side-view, 3 dia., R40, IP67 | OMRON | Model: E32-T14F 2M | Type: Through-beam Chemical/Oil-resistant (Set of 2) | View: Side-view | Optical Axis Dia.: 3 dia. | Bending Radius: R40 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 800 mm | Sensing Dist. FA ST: 1,200 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | ||
| E32-T51F 2M | Chemical/oil-resistant heat-resistant 150°C through-beam top-view, 4 dia., IP67 | OMRON | Model: E32-T51F 2M | Type: Through-beam Chemical/Oil-resistant Heat-resistant (Set of 2) | View: Top-view | Optical Axis Dia.: 4 dia. | Heat Resistance: 150°C (continuous use up to 130°C) | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 2,800 mm | Sensing Dist. FA ST: 4,000 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | ||
| E32-D12F 2M | Chemical/oil-resistant reflective top-view, IP67 | OMRON | Model: E32-D12F 2M | Type: Reflective Chemical/Oil-resistant | View: Top-view | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV HS: 130 mm | Sensing Dist. FA HS: 190 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | ||
| E32-D11U 2M | Reflective cable-only chemical-resistant, M6, R4, IP67 | OMRON | Model: E32-D11U 2M | Type: Reflective (Cable Chemical-resistant Only) | Mounting: Threaded M6 | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Note: Cable sheath only is chemical-resistant; sensing head is standard |
