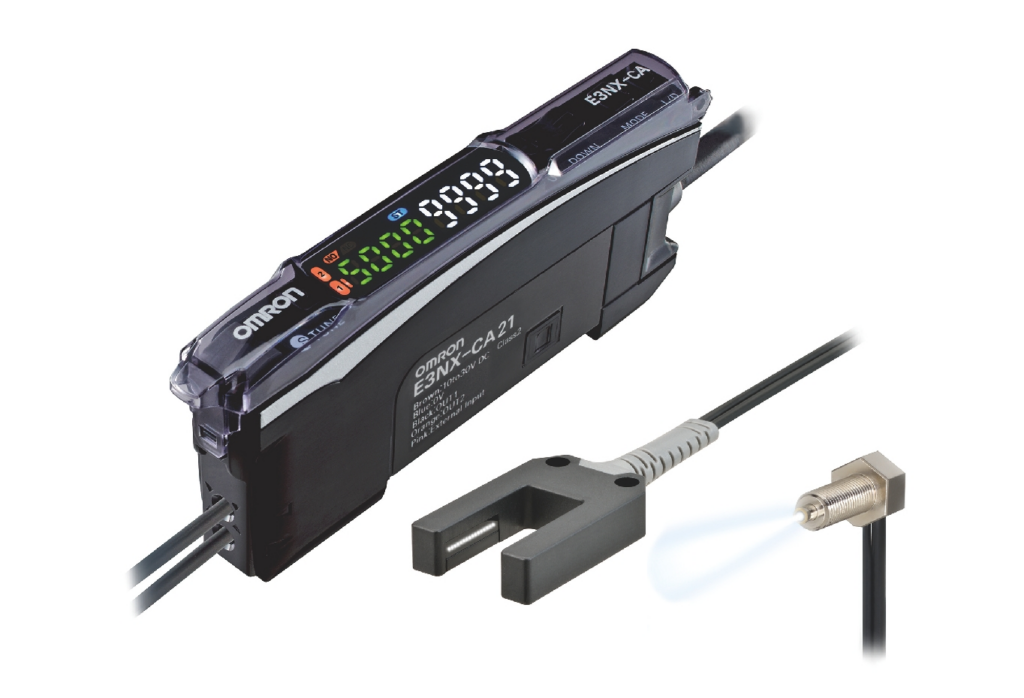

[OMRON] — E3NX-CA High-Function Color Fiber Amplifier (Multi-Output + External Input, AND/OR Logic)
Family ID: OMRON-E3NX-CA-HF
High-function color fiber amplifier with 2 outputs, 1 external input, and AND/OR logic output for advanced color detection applications. White LED + RGB matrix sensor with 4x dynamic range and 4x S/N improvement vs E3X-DAC-S. External input enables remote tuning, Light OFF, Zero Reset, and BANK switching (1~8) — useful for production line recipe changeover or remote troubleshooting. AND/OR logic combines OUT1 and OUT2 channels for complex pass/fail criteria (e.g., color match + count threshold simultaneously). Output 2 supports Error output mode for self-diagnostic alarms. Smart Tuning, four response modes (SHS 50μs ~ GIGA 16ms), BANK 1~8. 10-30 VDC, NPN or PNP. Compatible with OMRON E32 series fiber heads (E32-C91N coaxial recommended for color detection on tilted glossy workpieces). Mounting Bracket (E39-L143), DIN Track, End Plate (PFP-M) sold separately — contact for quote.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3NX-CA21 2M | OMRON E3NX-CA21 high-function color fiber amplifier, NPN, 2-output + 1-input, 2m pre-wired. | OMRON | Output: NPN | I/O Configuration: 2 outputs + 1 input | Connection: Pre-wired (2m cable, 4 dia., 5 conductors) | Power Consumption: Normal: 960mW max. (40mA @ 24VDC) | ECO ON: 720mW (30mA) | ECO LO: 800mW (33mA) | Control Output: NPN or PNP open-collector, 30 VDC max., 2 outputs | Load Current: 100 mA max. (1-3 amps), 20 mA max. (4+ amps) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Output 2 Mode: Standard / Error output / AND output / OR output | External Input Functions: Input OFF / Tuning / Full Auto Tuning / Light OFF / BANK1-2 switching / BANK1-8 switching / Zero Reset | External Input Specs (NPN type): Contact: ON=0V short (sink ≤2mA) / OFF=open or Vcc short. Transistor: ON ≤1.5V (sink ≤2mA) / OFF=Vcc-1.5V~Vcc (leak ≤0.1mA) | Response Time — SHS (Super-high-speed): 50 μs (Contrast Mode only) | Response Time — HS (High-speed): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Light Source: White LED (420~700 nm) — wide spectral range for color sensing | Light Receiving Element: High-sensitivity RGB matrix sensor (patented technology) | Detection Modes: Contrast Mode (RGB single-channel intensity discrimination after 2-point tuning) / Color Mode (RGB ratio discrimination) | Display: 7-segment digital display — sub digital (green) + main digital (white) | Indicators: OUT (orange), L/D (orange), ST (blue, smart tuning), OUT2 select (orange, 2-output models) | Power Supply: 10 to 30 VDC, ripple (p-p) 10% max. | Sensitivity Setting: Smart Tuning [2-point tuning / Full auto tuning / 1-point tuning (1%~99%)] or Manual | Operation Mode: Contrast Mode: NO (light ON) / NC (dark ON). Color Mode: NO (color match ON) / NC (color mismatch ON) | Timer Function: Selectable: OFF / OFF-delay / ON-delay / One-shot / ON-OFF delay (0.1~5000ms range, 0.1ms unit) | Bank Switching: BANK 1~8 selectable (more than E3NX-FA's BANK 1~4) | Power Tuning Level: 100~9999 settable | Zero Reset: Contrast Mode only (with negative display) | Setting Reset: Initial reset / User reset / BANK reset | Eco Mode: OFF / ECO ON (display dim) / ECO LO (display off) | Maximum Connectable Units: 30 units | Mutual Interference Prevention: HS/Stnd/GIGA modes: 10 units (optical sync). SHS mode: disabled. | Ambient Temperature (Operating): -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16), -25°C to 40°C (17-30) | Ambient Humidity: 35% to 85% RH (no condensation) | Pollution Degree: 3 (per IEC 60947-1) | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis (X/Y/Z) | Material: Case/Cover: Polycarbonate (PC), Cable: PVC | Compatible Fiber Heads: OMRON E32 series — recommended: E32-C91N (M6 coaxial reflective, 60° aperture for color detection on tilted glossy workpieces) and E32-G16 (10mm area beam, slot type) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3NX-CA51 2M | OMRON E3NX-CA51 high-function color fiber amplifier, PNP, 2-output + 1-input, 2m pre-wired. | OMRON | Output: PNP | I/O Configuration: 2 outputs + 1 input | Connection: Pre-wired (2m cable, 4 dia., 5 conductors) | Power Consumption: Normal: 960mW max. (40mA @ 24VDC) | ECO ON: 720mW (30mA) | ECO LO: 800mW (33mA) | Control Output: NPN or PNP open-collector, 30 VDC max., 2 outputs | Load Current: 100 mA max. (1-3 amps), 20 mA max. (4+ amps) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Output 2 Mode: Standard / Error output / AND output / OR output | External Input Functions: Input OFF / Tuning / Full Auto Tuning / Light OFF / BANK1-2 switching / BANK1-8 switching / Zero Reset | External Input Specs (NPN type): Contact: ON=0V short (sink ≤2mA) / OFF=open or Vcc short. Transistor: ON ≤1.5V (sink ≤2mA) / OFF=Vcc-1.5V~Vcc (leak ≤0.1mA) | Response Time — SHS (Super-high-speed): 50 μs (Contrast Mode only) | Response Time — HS (High-speed): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Light Source: White LED (420~700 nm) — wide spectral range for color sensing | Light Receiving Element: High-sensitivity RGB matrix sensor (patented technology) | Detection Modes: Contrast Mode (RGB single-channel intensity discrimination after 2-point tuning) / Color Mode (RGB ratio discrimination) | Display: 7-segment digital display — sub digital (green) + main digital (white) | Indicators: OUT (orange), L/D (orange), ST (blue, smart tuning), OUT2 select (orange, 2-output models) | Power Supply: 10 to 30 VDC, ripple (p-p) 10% max. | Sensitivity Setting: Smart Tuning [2-point tuning / Full auto tuning / 1-point tuning (1%~99%)] or Manual | Operation Mode: Contrast Mode: NO (light ON) / NC (dark ON). Color Mode: NO (color match ON) / NC (color mismatch ON) | Timer Function: Selectable: OFF / OFF-delay / ON-delay / One-shot / ON-OFF delay (0.1~5000ms range, 0.1ms unit) | Bank Switching: BANK 1~8 selectable (more than E3NX-FA's BANK 1~4) | Power Tuning Level: 100~9999 settable | Zero Reset: Contrast Mode only (with negative display) | Setting Reset: Initial reset / User reset / BANK reset | Eco Mode: OFF / ECO ON (display dim) / ECO LO (display off) | Maximum Connectable Units: 30 units | Mutual Interference Prevention: HS/Stnd/GIGA modes: 10 units (optical sync). SHS mode: disabled. | Ambient Temperature (Operating): -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16), -25°C to 40°C (17-30) | Ambient Humidity: 35% to 85% RH (no condensation) | Pollution Degree: 3 (per IEC 60947-1) | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis (X/Y/Z) | Material: Case/Cover: Polycarbonate (PC), Cable: PVC | Compatible Fiber Heads: OMRON E32 series — recommended: E32-C91N (M6 coaxial reflective, 60° aperture for color detection on tilted glossy workpieces) and E32-G16 (10mm area beam, slot type) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
