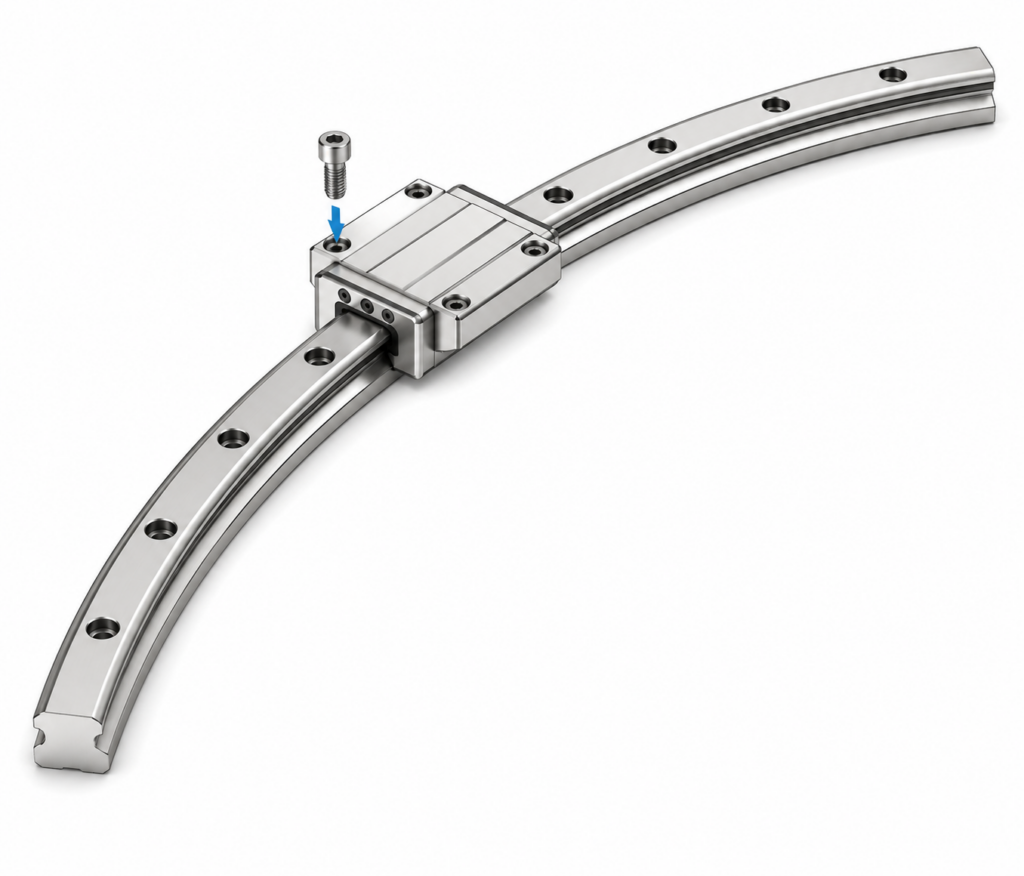

[THK] — HCR R-Guide LM Guide Block (Curved Motion, Flange Tapped)

Family ID: THK-HCR

R-guide type LM Guide for curved/arc motion. High precision zero-clearance arc motion — superior to sliding guides or cam followers. Enables arc motion over 5m (impossible with slewing bearings). Based on HSR structure for multi-directional load capability.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
HCR-12A+60-100R	HCR 12A+60/100R LM Block H18×W39×L44.6mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 12A+60/100R \| Height M: 18 mm \| Width W: 39 mm \| Length L: 44.6 mm \| Curve Radius: 100R \| Arc Angle: 60° \| Dynamic Load C: 4.7 kN \| Static Load C0: 8.53 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-15A+60-150R	HCR 15A+60/150R LM Block H24×W47×L54.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 15A+60/150R \| Height M: 24 mm \| Width W: 47 mm \| Length L: 54.5 mm \| Curve Radius: 150R \| Arc Angle: 60° \| Dynamic Load C: 6.66 kN \| Static Load C0: 10.8 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-15A+60-300R	HCR 15A+60/300R LM Block H24×W47×L55.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 15A+60/300R \| Height M: 24 mm \| Width W: 47 mm \| Length L: 55.5 mm \| Curve Radius: 300R \| Arc Angle: 60° \| Dynamic Load C: 8.33 kN \| Static Load C0: 13.5 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-15A+60-400R	HCR 15A+60/400R LM Block H24×W47×L55.8mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 15A+60/400R \| Height M: 24 mm \| Width W: 47 mm \| Length L: 55.8 mm \| Curve Radius: 400R \| Arc Angle: 60° \| Dynamic Load C: 8.33 kN \| Static Load C0: 13.5 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-25A+60-500R	HCR 25A+60/500R LM Block H36×W70×L81.6mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 25A+60/500R \| Height M: 36 mm \| Width W: 70 mm \| Length L: 81.6 mm \| Curve Radius: 500R \| Arc Angle: 60° \| Dynamic Load C: 19.9 kN \| Static Load C0: 34.4 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-25A+60-750R	HCR 25A+60/750R LM Block H36×W70×L82.3mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 25A+60/750R \| Height M: 36 mm \| Width W: 70 mm \| Length L: 82.3 mm \| Curve Radius: 750R \| Arc Angle: 60° \| Dynamic Load C: 19.9 kN \| Static Load C0: 34.4 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-25A+60-1000R	HCR 25A+60/1000R LM Block H36×W70×L82.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 25A+60/1000R \| Height M: 36 mm \| Width W: 70 mm \| Length L: 82.5 mm \| Curve Radius: 1000R \| Arc Angle: 60° \| Dynamic Load C: 19.9 kN \| Static Load C0: 34.4 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-35A+60-600R	HCR 35A+60/600R LM Block H48×W100×L107.2mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 35A+60/600R \| Height M: 48 mm \| Width W: 100 mm \| Length L: 107.2 mm \| Curve Radius: 600R \| Arc Angle: 60° \| Dynamic Load C: 37.3 kN \| Static Load C0: 61.1 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-35A+60-800R	HCR 35A+60/800R LM Block H48×W100×L107.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 35A+60/800R \| Height M: 48 mm \| Width W: 100 mm \| Length L: 107.5 mm \| Curve Radius: 800R \| Arc Angle: 60° \| Dynamic Load C: 37.3 kN \| Static Load C0: 61.1 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-35A+60-1000R	HCR 35A+60/1000R LM Block H48×W100×L108.2mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 35A+60/1000R \| Height M: 48 mm \| Width W: 100 mm \| Length L: 108.2 mm \| Curve Radius: 1000R \| Arc Angle: 60° \| Dynamic Load C: 37.3 kN \| Static Load C0: 61.1 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-35A+60-1300R	HCR 35A+60/1300R LM Block H48×W100×L108.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 35A+60/1300R \| Height M: 48 mm \| Width W: 100 mm \| Length L: 108.5 mm \| Curve Radius: 1300R \| Arc Angle: 60° \| Dynamic Load C: 37.3 kN \| Static Load C0: 61.1 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-45A+60-800R	HCR 45A+60/800R LM Block H60×W120×L136.7mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 45A+60/800R \| Height M: 60 mm \| Width W: 120 mm \| Length L: 136.7 mm \| Curve Radius: 800R \| Arc Angle: 60° \| Dynamic Load C: 60 kN \| Static Load C0: 95.6 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-45A+60-1000R	HCR 45A+60/1000R LM Block H60×W120×L137.3mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 45A+60/1000R \| Height M: 60 mm \| Width W: 120 mm \| Length L: 137.3 mm \| Curve Radius: 1000R \| Arc Angle: 60° \| Dynamic Load C: 60 kN \| Static Load C0: 95.6 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-45A+60-1200R	HCR 45A+60/1200R LM Block H60×W120×L137.3mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 45A+60/1200R \| Height M: 60 mm \| Width W: 120 mm \| Length L: 137.3 mm \| Curve Radius: 1200R \| Arc Angle: 60° \| Dynamic Load C: 60 kN \| Static Load C0: 95.6 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-45A+60-1600R	HCR 45A+60/1600R LM Block H60×W120×L138mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 45A+60/1600R \| Height M: 60 mm \| Width W: 120 mm \| Length L: 138 mm \| Curve Radius: 1600R \| Arc Angle: 60° \| Dynamic Load C: 60 kN \| Static Load C0: 95.6 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-65A+60-1000R	HCR 65A+60/1000R LM Block H90×W170×L193.8mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 65A+60/1000R \| Height M: 90 mm \| Width W: 170 mm \| Length L: 193.8 mm \| Curve Radius: 1000R \| Arc Angle: 60° \| Dynamic Load C: 141 kN \| Static Load C0: 215 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-65A+60-1500R	HCR 65A+60/1500R LM Block H90×W170×L195.4mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 65A+60/1500R \| Height M: 90 mm \| Width W: 170 mm \| Length L: 195.4 mm \| Curve Radius: 1500R \| Arc Angle: 60° \| Dynamic Load C: 141 kN \| Static Load C0: 215 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-65A+45-2000R	HCR 65A+45/2000R LM Block H90×W170×L195.9mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 65A+45/2000R \| Height M: 90 mm \| Width W: 170 mm \| Length L: 195.9 mm \| Curve Radius: 2000R \| Arc Angle: 45° \| Dynamic Load C: 141 kN \| Static Load C0: 215 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-65A+45-2500R	HCR 65A+45/2500R LM Block H90×W170×L196.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 65A+45/2500R \| Height M: 90 mm \| Width W: 170 mm \| Length L: 196.5 mm \| Curve Radius: 2500R \| Arc Angle: 45° \| Dynamic Load C: 141 kN \| Static Load C0: 215 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
HCR-65A+30-3000R	HCR 65A+30/3000R LM Block H90×W170×L196.5mm	THK	Type: R-Guide LM Guide Block \| Series: HCR \| Model: HCR 65A+30/3000R \| Height M: 90 mm \| Width W: 170 mm \| Length L: 196.5 mm \| Curve Radius: 3000R \| Arc Angle: 30° \| Dynamic Load C: 141 kN \| Static Load C0: 215 kN \| Mount: Flange Tapped \| Application: Curved/Arc motion \| Brand: THK
