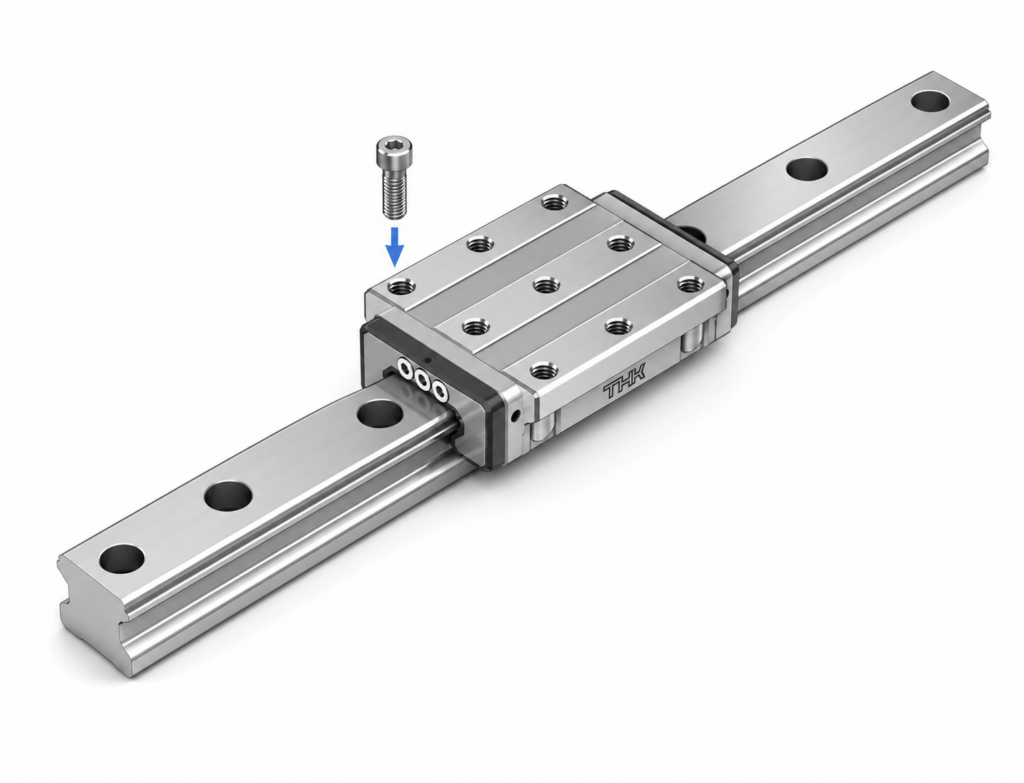

[THK] — HSR-100/120/150HR LM Guide Block (Full Ball, Big Scale, 6-tap Narrow Width)
Family ID: THK-HSR-100150HR
Big scale HSR type LM Guide for large machine tools and structures. Block with 6 tapped mounting holes, narrow width (HR type). 4-direction equal load, 4-row high rigidity configuration.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-100HR | HSR 100HR LM Block H120×W200×L334mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 100HR | Height M: 120 mm | Width W: 200 mm | Length L: 334 mm | Max Rail Length: 3000 mm | Dynamic Load C: 441 kN | Static Load C0: 540 kN | Structure: Full Ball DF | Mount: Narrow Width (6 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK | ||
| HSR-120HR | HSR 120HR LM Block H130×W220×L365mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 120HR | Height M: 130 mm | Width W: 220 mm | Length L: 365 mm | Max Rail Length: 3000 mm | Dynamic Load C: 540 kN | Static Load C0: 653 kN | Structure: Full Ball DF | Mount: Narrow Width (6 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK | ||
| HSR-150HR | HSR 150HR LM Block H145×W266×L396mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 150HR | Height M: 145 mm | Width W: 266 mm | Length L: 396 mm | Max Rail Length: 3000 mm | Dynamic Load C: 518 kN | Static Load C0: 728 kN | Structure: Full Ball DF | Mount: Narrow Width (6 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK |
